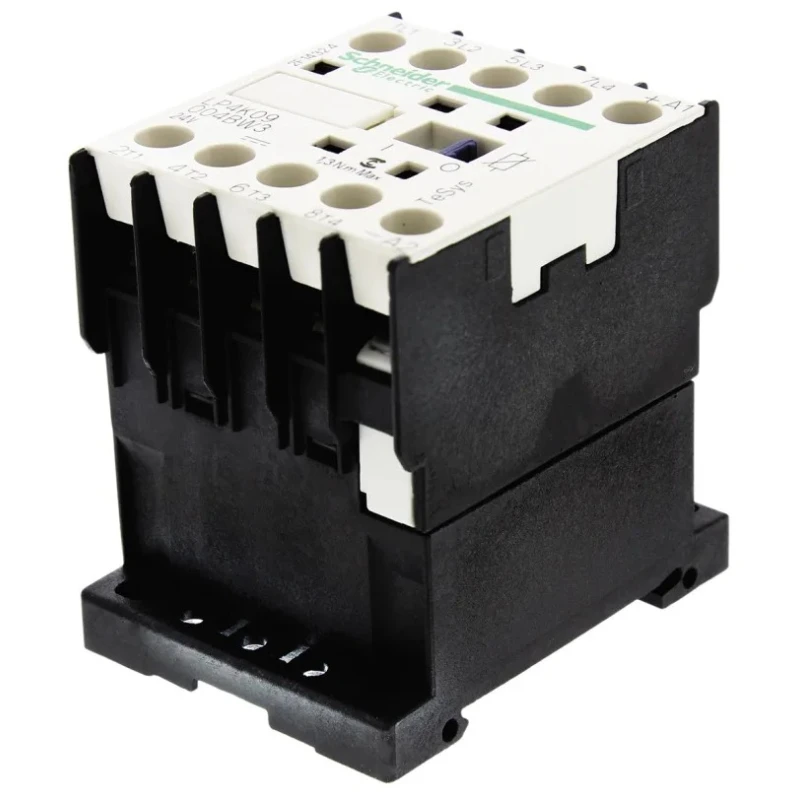

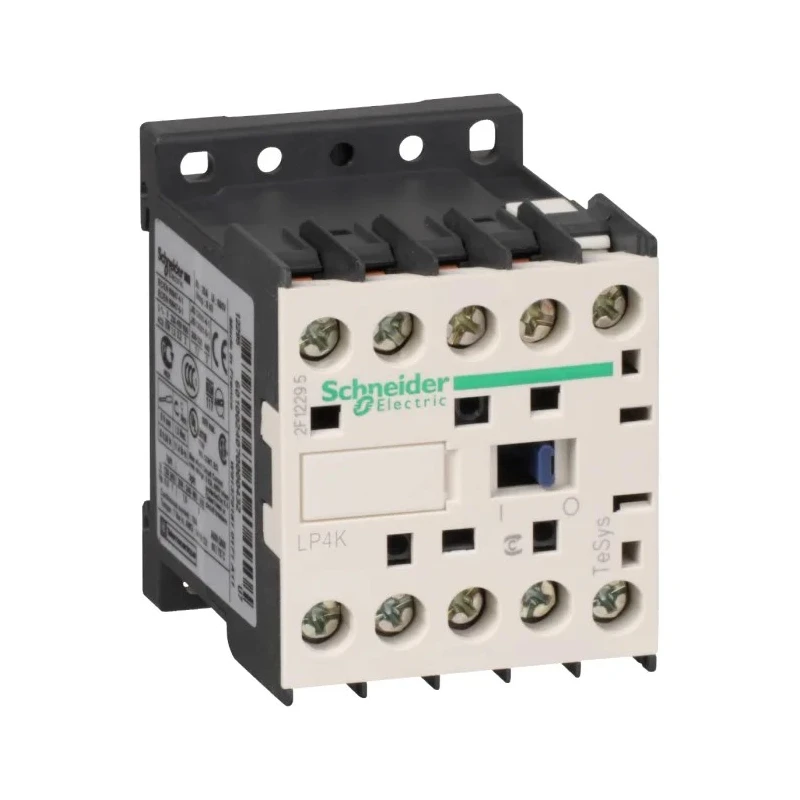

Schneider Electric TeSys K Miniature Contactor 24V DC Coil 4-Pole 20A 4 kW 4 NO 690V AC LP4K09004BW3
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LP4K09004BW3 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LP4K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, CCC, CSA, EAC, IEC, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- Low consumption DC operated mini contactor suitable for noise-sensitive environments.
- Equipped with 4 normally open contacts for reliable switching.
- Rated for 690V AC contact voltage and 4 kW power rating.
- Mountable on DIN Rail with IP20 finger-safe screw terminals.
- Incorporates built-in auxiliary contact with 1 NO configuration for added control.
- Wide operating temperature range from -25°C to 50°C.
- Complies with international standards including RoHS, CCC, CSA, EAC, IEC, and UL.
- Compact dimensions of 58mm length, 45mm width, and 57mm depth suit panel installation.
Product Description
Schneider Electric LP4K09004BW3 is a TeSys K range miniature contactor designed for efficient motor control featuring a 24V DC coil and 4-pole contact configuration. Rated for a contact current of 20A and a power rating of 4 kW, it supports control circuits up to 24V DC. This low consumption contactor is particularly suited for applications sensitive to noise and interference, ensuring silent operation in demanding industrial environments.
The device includes 4 normally open contacts and one auxiliary contact configured as 1 NO, enhancing switching capacity. Equipped with screw terminals for secure IP20 finger-safe connections with both North American and international terminal markings, it can easily be mounted on a DIN Rail or panel with screws.
Operating reliably within a temperature range of -25°C to 50°C, the LP4K09004BW3 complies with multiple international standards including RoHS, CCC, CSA, EAC, IEC, and UL, ensuring global usability and safety. Its compact size, with dimensions of 58mm length, 45mm width, and 57mm depth, facilitates convenient installation in control panels.
This contactor series is designed with a special armature structure allowing uniform physical size and panel footprint across devices. The coil incorporates a rectifier for DC operation, ensuring compatibility and durability. Applications span industrial automation, HVAC systems, manufacturing machinery, water treatment, and other electrical control systems requiring reliable motor control.
Low power DC operated design minimizes energy consumption. 4 poles and 4 normally open contacts provide robust switching functions. Auxiliary contact enhances control versatility. DIN Rail and panel mountable for installation flexibility.
Complies with stringent international safety and environmental standards. Compact and uniform size for ease of panel integration. Wide temperature range allows operation in various industrial climates. Finger-safe screw terminal connections for improved safety.
Designed for disassembly promoting sustainable practices.
Set includes the LP4K09004BW3 miniature contactor suitable for industrial and commercial motor control applications. It is a reliable, silent, and efficient solution compliant with global standards, designed to optimize automation and control systems.
Explore more Schneider Electric products and similar Contactors at EnvMart for reliable industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 4 kW.
It is rated for a contact voltage of 690V AC.
This contactor utilizes a 24V DC coil for operation.
This model features a 4-pole configuration.
It can operate at a maximum temperature of 50°C.
The minimum operating temperature is -25°C.
It is equipped with screw terminals for secure connections.
It includes one auxiliary contact configured as 1 normally open (1 NO).
Yes, this model is designed for DIN Rail mounting.
It complies with RoHS, CCC, CSA, EAC, IEC, and UL standards.
It is suitable for motor control applications in industrial automation, HVAC systems, and manufacturing machinery.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
