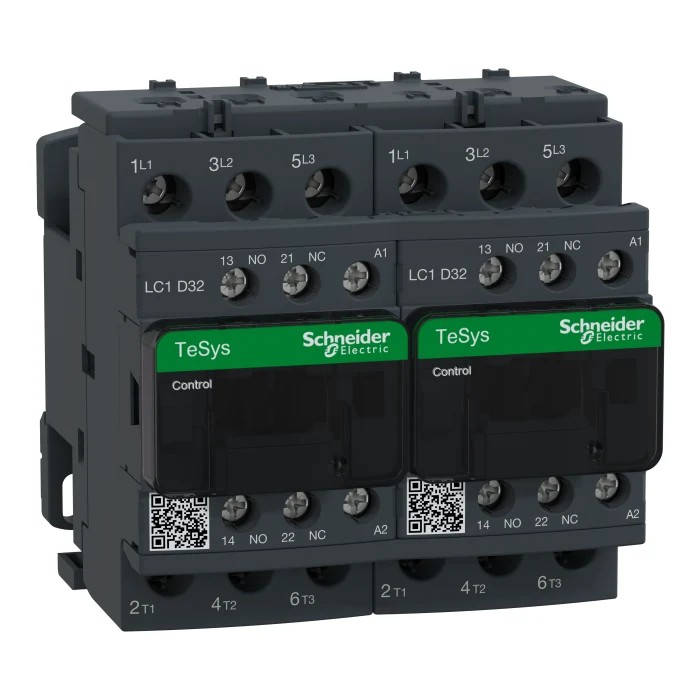

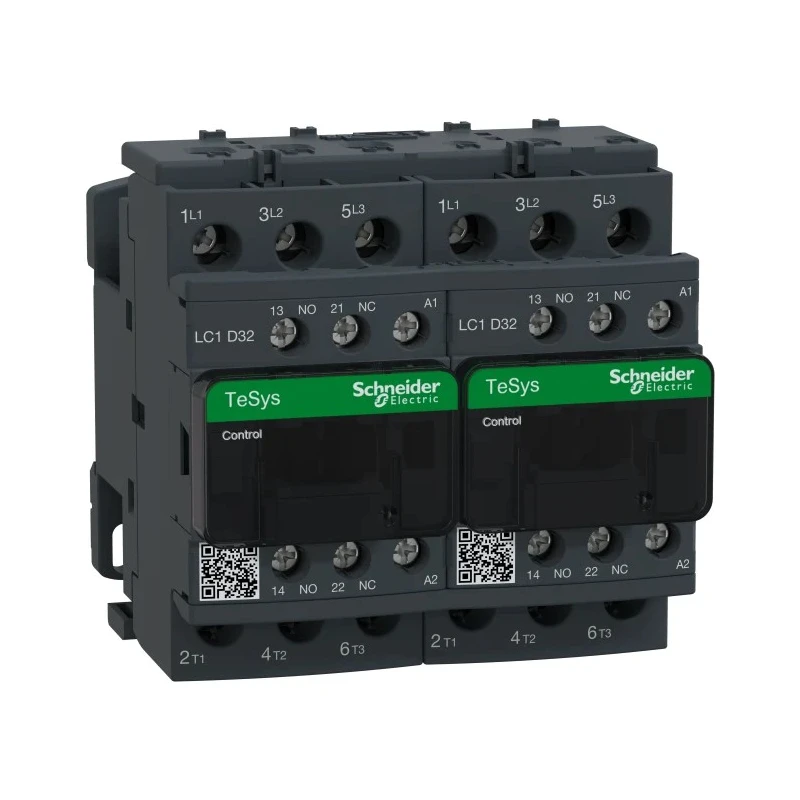

Schneider Electric TeSys D Reversing Contactor 48V AC Coil 3-Pole 32A 15kW 690V AC LC2D32E7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D32E7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, UL, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 48V AC coil suitable for 50/60Hz operation.
- Features 3 poles with a normal state configuration of 3 NO contacts.
- Includes 2 NO plus 2 NC auxiliary contacts for enhanced switching functionality.
- Robust screw clamp terminal connections ensuring safe electrical handling.
- Suitable for motor control and resistive load applications with reversing functionality.
- Compact design with DIN rail mounting and mechanical interlock for safety.
- Operates reliably between -25°C and 50°C ambient temperature.
- Rated for high electrical durability, up to 2 million operational cycles.
Product Description
Schneider Electric LC2D32E7 is a TeSys D series reversing contactor designed for precise motor control applications. This device features a 48V AC coil supporting 50/60Hz operation, complemented by 3 poles configured with 3 normally open (NO) contacts, enabling switching of motor loads up to 32A and 15kW power ratings at 690V AC.
Built for robust industrial use, the contactor integrates 2 NO and 2 NC auxiliary contacts, with the NC contacts mirror certified for inclusion in safety control systems. The device includes a mechanical interlock and pre-wired reversing power connections allowing safe and reliable operation without electrical interlocking.
The compact unit, measuring 90mm in width, 85mm in length, and 92mm in depth, mounts securely on DIN rails and can be screw fixed. Designed to operate efficiently within a temperature range of -25°C to 50°C, it offers high electrical durability rated for up to two million switching cycles at 32A AC-3, 440V, suitable for demanding motor switching tasks.
With screw clamp terminals providing IP20 finger-safe connections marked for both North American and international standards, user accessibility is simplified while maintaining safety. This device is compliant with multiple international certifications such as RoHS, UL, CCC, CSA, EAC, and IEC, ensuring high reliability in a variety of industrial, manufacturing, HVAC, and automation applications.
Built-in auxiliary contacts for added switching capability. Pre-installed mechanical interlock for safety and reversing functions. Screw clamp terminals offer secure and finger-safe electrical connections. Compatible with motor control, resistive load, and reversing applications.
Designed for high durability with up to 2 million mechanical and electrical cycles. Compact and robust design suitable for DIN rail mounting. Manufactured in France with Green Premium compliant materials. Meets international standards including RoHS, UL, CSA, and IEC.
This Schneider Electric LC2D32E7 reversing contactor is ideal for industrial automation systems requiring reliable motor control and reversing functions. Explore more from Schneider Electric and related high-quality Contactors and auxiliary contacts on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC2D32E7 reversing contactor has a power rating of 15kW.
This model is rated for a maximum contact voltage of 690V AC.
The coil voltage for the LC2D32E7 is 48V AC.
The LC2D32E7 features 3 poles with a normal state configuration of 3 normally open (NO) contacts.
It operates efficiently within a temperature range of -25°C to 50°C.
This unit is designed for DIN rail mounting, allowing for secure installation.
The dimensions of this contactor are 90mm in width, 85mm in length, and 92mm in depth.
It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for enhanced switching functionality.
The LC2D32E7 is rated for high electrical durability, with up to 2 million operational cycles.
It is suitable for motor control, resistive load applications, and reversing functions.
This model complies with several international standards, including RoHS, UL, CCC, CSA, EAC, and IEC.
It features screw clamp terminals that provide IP20 finger-safe connections, marked for both North American and international standards.
