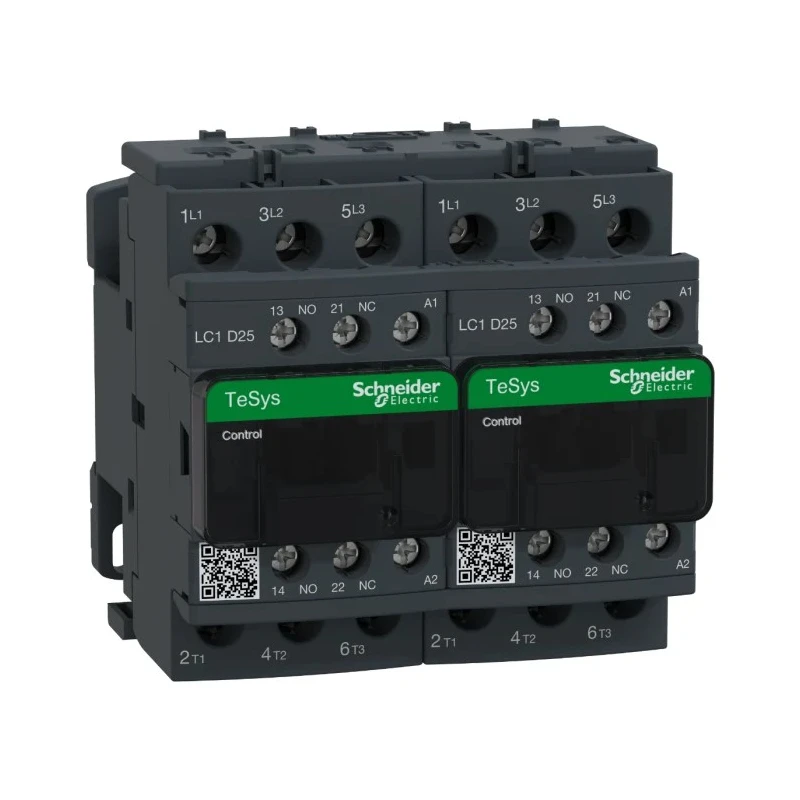

Schneider Electric TeSys D Reversing Contactor 48V AC Coil, 3-Pole, 25 A, 11 kW, 690V AC LC2D25E7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 85mm |
| Model | LC2D25E7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and reversing applications with robust construction.
- Equipped with 3 normally open contacts for reliable switching.
- Includes 2 auxiliary contacts configured as 2 NO and 2 NC for added control flexibility.
- Screw terminal connections with IP20 finger-safe protection and international markings.
- Capable of operating between -25°C and 50°C for diverse industrial environments.
- Mountable on DIN rails or panel screws for flexible installation.
- Complies with UL, IEC, RoHS, EAC, CSA, and CCC standards ensuring global regulatory compliance.
- Compact dimensions with 85mm length, 90mm width, and 92mm depth for space efficient design.
Product Description
Schneider Electric LC2D25E7 TeSys D reversing contactor features a 48V AC coil with a 3-pole configuration, rated for 25 A current and 11 kW power at 690V AC contact voltage. It is designed specifically for reliable motor control and reversing applications in industrial settings.
Built with long mechanical and electrical life, it includes built-in auxiliary contacts to extend switching capability and a pre-installed mechanical interlock that prevents simultaneous operation of contactors, enhancing safety.
The contactor uses screw terminals protected to IP20 finger-safe standards, marked for both North American and international wiring schemes. Installation is flexible with options for DIN rail mounting or panel mounting with screws.
It operates efficiently within ambient temperatures ranging from -25°C to 50°C, suitable for many industrial environments. The contactor meets a wide range of international standards including UL, IEC, RoHS, EAC, CSA, and CCC, ensuring compliance and operational safety.
Its compact footprint with dimensions of 85 mm length, 90 mm width, and 92 mm depth optimizes panel space while maintaining functionality. Designed for motor control and reversing with high reliability. Contains 3 normally open main contacts for power switching.
Includes 2 auxiliary contacts (2 NO/2 NC) for control circuits. IP20 screw terminals ensure safe electrical connections. Suitable for resistive loads and motor applications. Pre-installed mechanical interlock to prevent simultaneous contactor closure.
Supports utilisation categories AC1 and AC3 for various load types. Complies with multiple international safety and environmental standards.
This Schneider Electric contactor is ideal for industrial, manufacturing, automation, HVAC, and commercial electrical control applications. Accessory installation and flexible control circuits enhance versatility.
Explore more reliable control gear and Contactors at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D25E7 contactor has a power rating of 11 kW.
This model can operate at a maximum contact voltage of 690V AC.
It operates efficiently within an ambient temperature range of -25°C to 50°C.
The LC2D25E7 contactor features a 3-pole configuration.
It uses screw terminals that are IP20 finger-safe, with both North American and international markings.
This model includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
The contact current rating for this contactor is 25 A.
It can be mounted on DIN rails or with panel screws for flexible installation.
It complies with UL, IEC, RoHS, EAC, CSA, and CCC standards, ensuring global regulatory compliance.
This contactor is suitable for motor control, reversing applications, and can be used with resistive loads and various motor types.
The dimensions of this contactor are 85 mm in length, 90 mm in width, and 92 mm in depth.
It supports utilisation categories AC1 for resistive loads and AC3 for squirrel cage motors.
