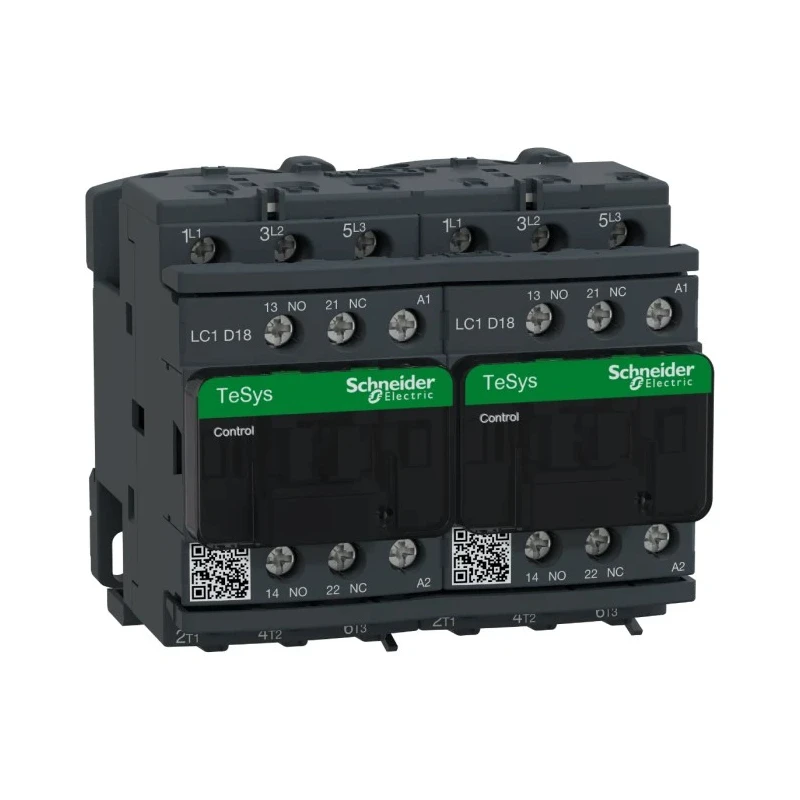

Schneider Electric LC2D TeSys D Reversing Contactor, 48V AC Coil, 3-Pole, 18 A, 7.5 kW, 3 NO, 690V AC LC2D18E7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D18E7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load operations with reversing capabilities.
- Rated for 18 A contact current and 7.5 kW power at 690 V AC.
- Incorporates 3 normally open contacts and 2 auxiliary contacts configured as 2 NO and 2 NC.
- Equipped with IP20 finger-safe screw terminals marked for both North American and International standards.
- Suitable for DIN rail or panel mounting for flexible installation options.
- Operational temperature range from -25°C to 50°C, ensuring broad environmental compatibility.
- Complies with international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
- Pre-installed mechanical interlock to prevent simultaneous closing of both contactors in reversing setups.
Product Description
Schneider Electric LC2D18E7 is a high-quality TeSys D reversing contactor designed for industrial motor control and resistive load applications. Featuring a robust 48V AC coil and a 3-pole setup rated at 18 A contact current and 7.5 kW power, this contactor delivers excellent performance and durability in demanding environments.
The contactor includes three normally open contacts and dual auxiliary contacts (2 NO / 2 NC) for enhanced switching versatility. Its IP20 finger-safe screw terminals provide safety and ease of wiring with markings compliant for both North American and international standards.
Manufactured to support DIN rail and panel mounting, installation flexibility is ensured for diverse industrial setups. The operational temperature range from -25°C up to 50°C supports reliable performance across varying conditions.
The LC2D18E7 contactor utilizes linear translation technology for double breaking on the poles, enhancing electrical and mechanical life. Its preassembled reversing power busbar and built-in mechanical interlock assure safe and efficient motor reversal by preventing simultaneous contactor engagement.
This model conforms to rigorous compliance standards such as IEC 60947, UL, CSA, CCC, EAC, and RoHS, making it suitable for industrial, commercial, and manufacturing environments that demand dependable motor management solutions.
Designed for motor control and resistive load with reversing functionality. 48V AC coil voltage with 3-pole, 18 A current rating. Includes 3 NO main contacts and 2 NO/2 NC auxiliary contacts. IP20 screw terminals with international and North American markings ensure safe connections.
Mountable on DIN rail or panel with ease. Wide operating temperature from -25°C to 50°C. Pre-installed mechanical interlock for safe reversing operation. Complies with IEC 60947, UL, CSA, CCC, EAC, and RoHS standards.
This Schneider Electric TeSys D reversing Contactor is ideal for use in industrial automation, motor control circuits, HVAC systems, manufacturing machinery, and other robust electrical applications requiring reliable power switching and reversing capability.
Explore more Schneider Electric products and automation solutions on EnvMart for precise and durable electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 7.5 kW at a contact voltage of 690V AC.
The contact current rating for this unit is 18 A.
It operates with a coil voltage of 48V AC.
This reversing contactor features a 3-pole configuration.
The operational temperature range is from -25°C to 50°C.
It includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It is suitable for DIN rail or panel mounting, providing flexible installation options.
It complies with several international standards, including IEC, UL, CSA, CCC, EAC, and RoHS.
It features IP20 finger-safe screw terminals, marked for both North American and international standards.
This contactor is designed for motor control and resistive load applications, including use in HVAC systems and manufacturing machinery.
The depth is 86 mm and the width is 90 mm.
Yes, it has a pre-installed mechanical interlock to prevent simultaneous closing of both contactors during reversing operations.
