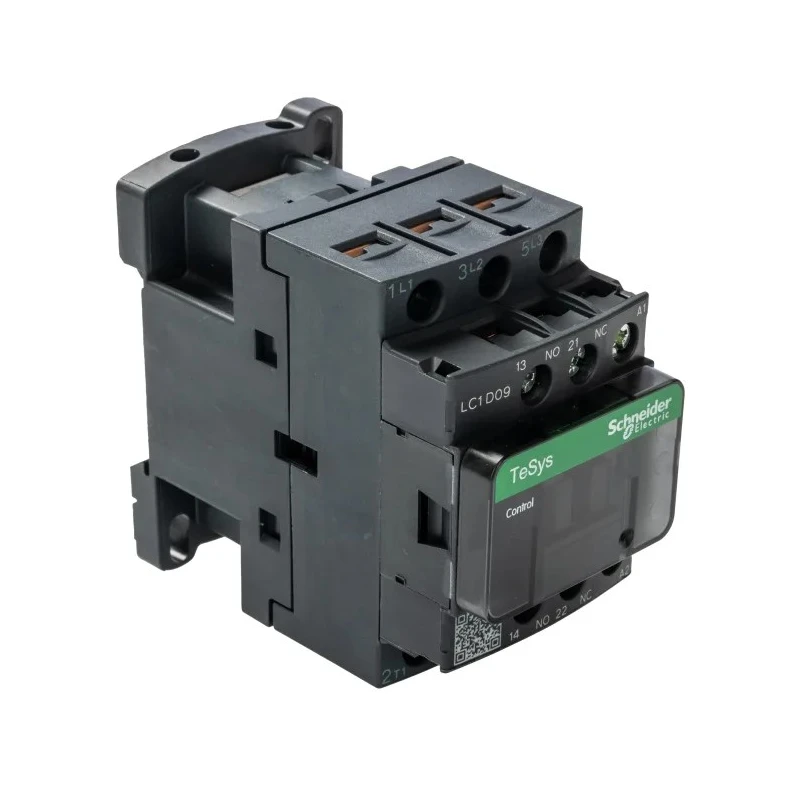

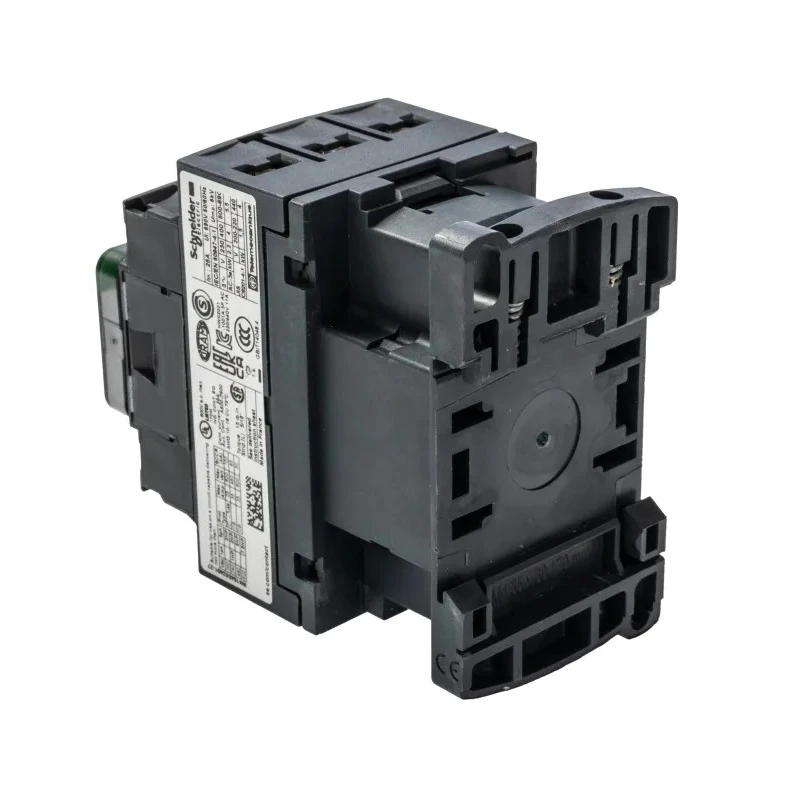

Schneider Electric TeSys D Contactor LC1D09E7, 48V AC Coil, 3-Pole, 9A, 4kW, 3 NO, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09E7 |
| Depth | 84mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC, EN 60947-5-1, EAC, CSA, CCC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open (NO) contacts for reliable switching.
- Designed with DIN rail mounting for easy installation.
- Features an IP20 rating for finger-safe operation.
- Supports contact voltage up to 690V AC suitable for high-power circuits.
- Built-in 2 auxiliary contacts (1 NO/1 NC) for additional control functionality.
- Operates within a temperature range from -5°C to 60°C.
- Screw clamp terminals with low tightening torque of 1.7Nm ensure easy wiring.
- Meets international standards including IEC, UL, RoHS, and more.
Product Description
Schneider Electric LC1D09E7 TeSys D Contactor is a high-reliability industrial switching device with a 48V AC coil, 3 poles, and a 9A operational current rating. Its 4kW power capacity and 690V AC contact voltage make it suited for robust motor control and resistive load applications.

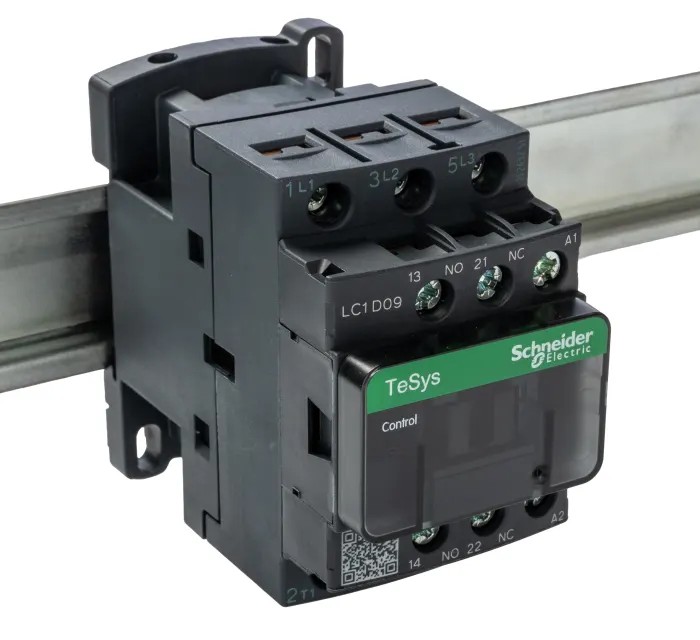

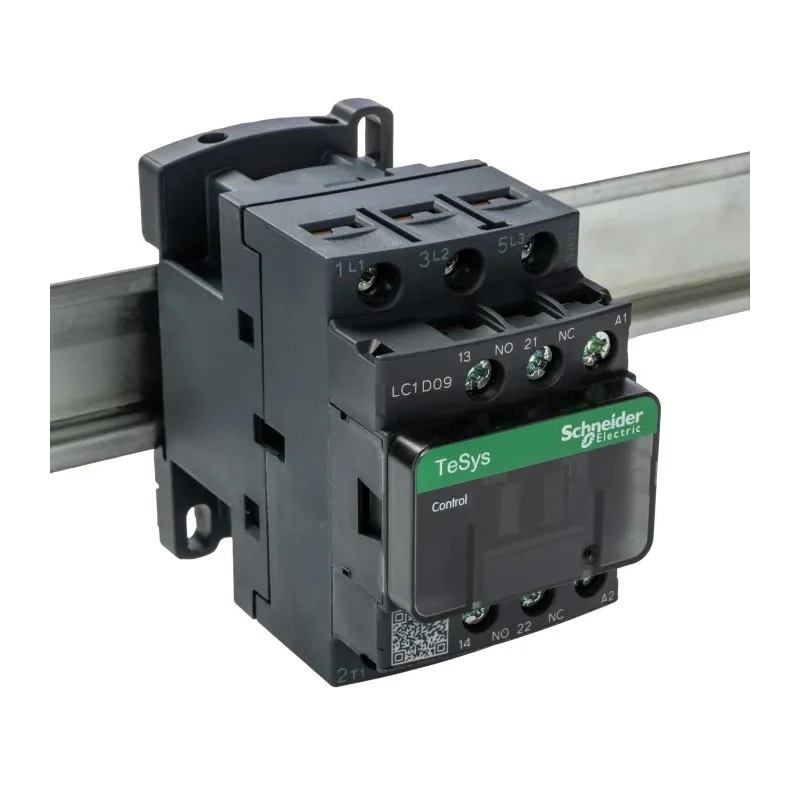

The contactor features a durable design with built-in auxiliary contacts (1 normally open, 1 normally closed) to provide extra switching capability for complex control systems. Its DIN rail mounting format enables quick installation without the need for additional tools.
With an IP20 rating and finger-safe terminals marked for international standards, the LC1D09E7 ensures operator safety and equipment protection. The low tightening torque screw terminals simplify wiring, reducing installation time and minimizing human error.
The device meets prestigious product certifications including IEC 60947-5-1, CSA, UL, RoHS, and CCC, reinforcing its reliability in industrial settings. It withstands AC impulses up to 6kV, protecting electrical circuits from voltage spikes.
Common applications include industrial automation, motor starters for machinery such as pumps and compressors, lighting rigs, and other resistive load circuits requiring dependable switching performance. Its capability to control circuits up to 690V AC and 9A operational current suits various industrial scenarios.
Reliable 3-pole switching with 3 normally open contacts. Auxiliary contacts for enhanced control versatility. DIN rail mounting for streamlined integration. IP20 finger-safe terminal protection. Compliance with IEC, UL, CSA, CCC, and RoHS standards.
Low tightening torque screw terminals for easy wiring.
Designed and manufactured in France, this Schneider Electric Contactor offers an efficient, safe, and simple solution for electrical and automation system control. Browse the Electronics & Electricals category at EnvMart for compatible control gear and automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D09E7 contactor has a power rating of 4kW.
This model supports a maximum contact voltage of 690V AC.
It features 3 poles, configured as 3 normally open (NO) contacts.
The coil voltage for the LC1D09E7 is 48V AC.
The dimensions are 77mm in length, 84mm in depth, and 45mm in width.
The operational current rating is 9A.
It is designed for DIN rail mounting, allowing for easy installation.
It operates within a temperature range of -5°C to 60°C.
The contactor includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with IEC, UL, CSA, CCC, and RoHS standards.
This model is suitable for motor control and resistive load applications.
It has screw terminals with an IP20 rating for finger-safe operation.
