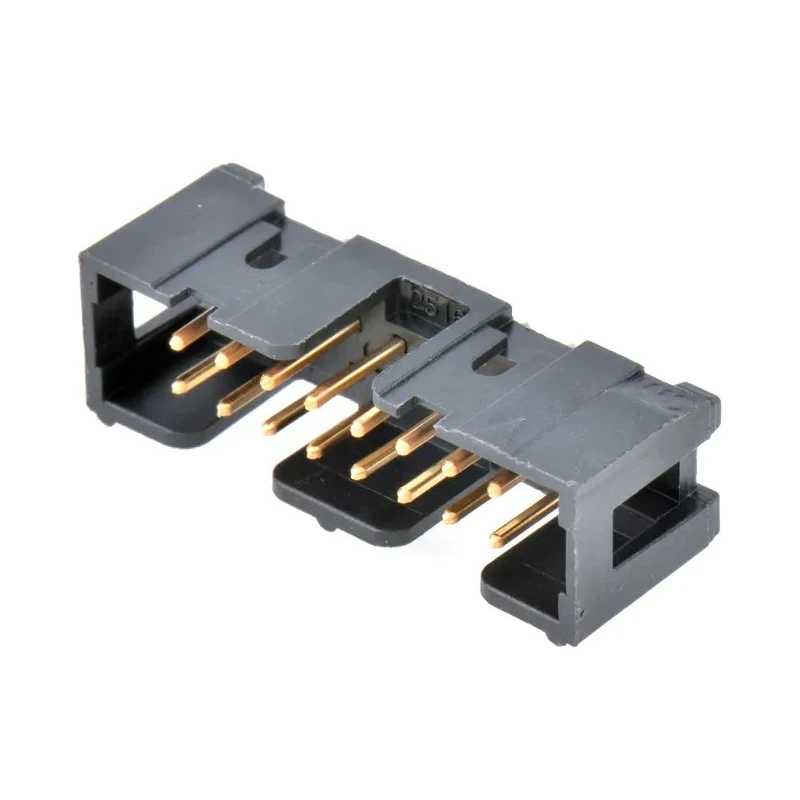

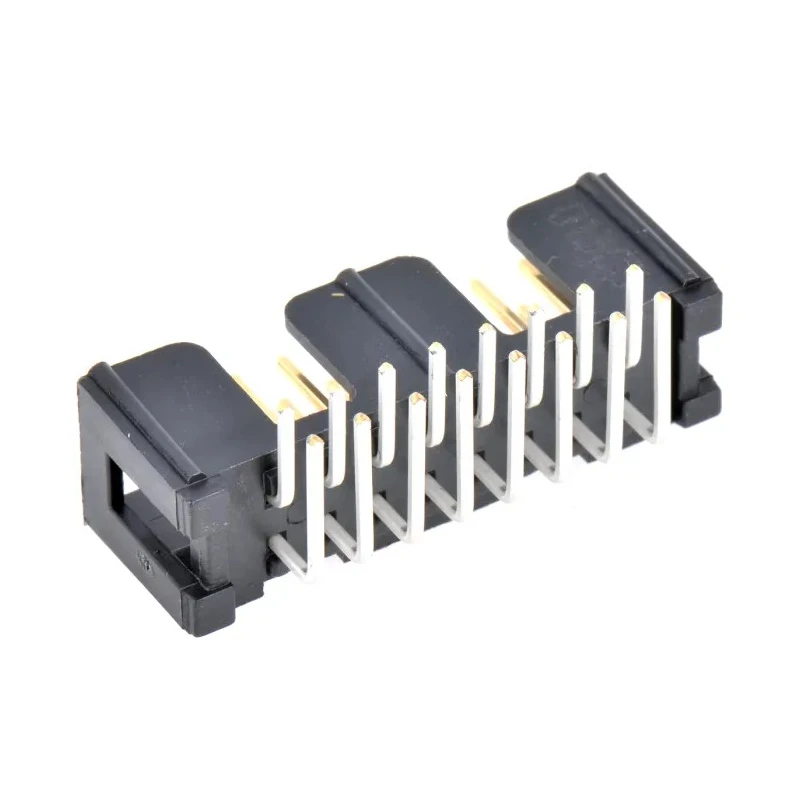

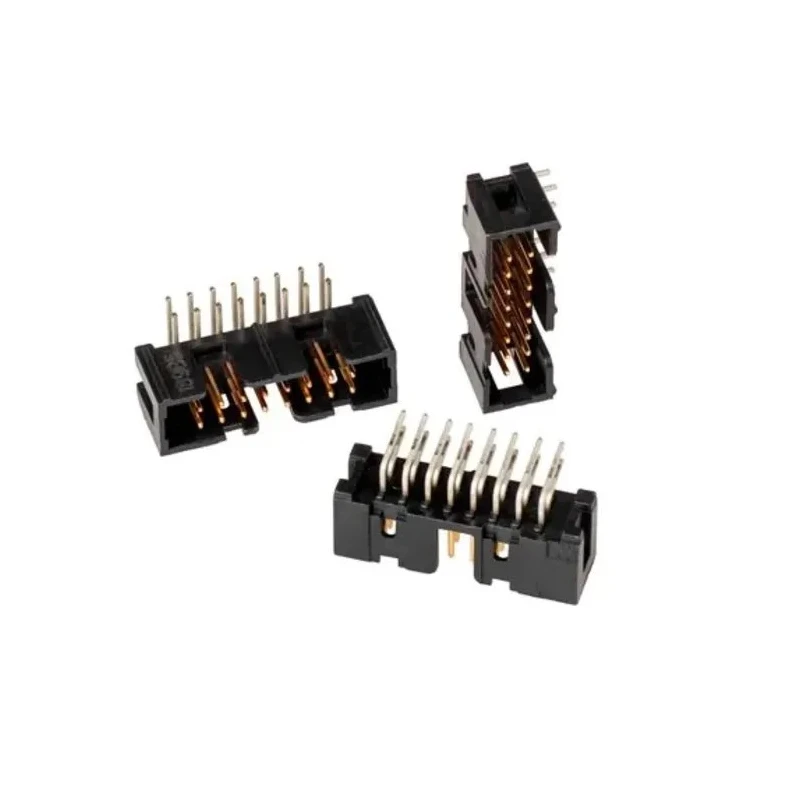

3M 2500 Series Right Angle Through Hole PCB Header 16 Contacts 2.54 mm Pitch Shrouded N2516-5002RB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1.75A |
| Model | N2516-5002RB |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | 2500 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Supports a current rating of 1.75A suitable for low power applications.
- Features gold-plated copper alloy contacts for high conductivity and corrosion resistance.
- Housing made of durable glass-filled polyester for impact and chemical resistance.
- Wide operating temperature range from -55°C to 105°C for harsh environments.
- Designed for through hole mount with solder termination for reliable mechanical stability.
- Includes center slot polarization to prevent incorrect mating and improve insertion accuracy.
- Compatible with board-to-board and wire-to-board connector systems.
- Compact 2-row configuration optimizes space on printed circuit boards.
Product Description
3M N2516-5002RB is a Right Angle Through Hole PCB Header from the 2500 Series, engineered for reliable and space-saving board-to-board or wire-to-board connections. This shrouded PCB header features 16 male contacts arranged in 2 rows with a standardized 2.54 mm pitch, making it ideal for electronic component assembly in diverse industrial applications.
The contacts are crafted from copper alloy with a robust gold plating, enhancing conductivity while ensuring corrosion resistance for durable performance. The housing uses a glass-filled polyester material, providing excellent impact resistance and chemical tolerance, suitable for demanding conditions.
Rated for a maximum current of 1.75A and voltage up to 1000V, the header supports moderate electrical loads commonly found in computers, medical devices, and avionics. Its operational temperature range from -55°C to 105°C allows it to function reliably in extreme conditions.
The connector features center slot polarization to avoid improper mating and reduce insertion time, ensuring dependable mechanical and electrical connections. It mounts through-hole on PCBs with a solder termination type for stable assembly. The right angle orientation facilitates optimal routing and compactness in design layouts.
This 3M 2500 Series header is applicable across electronic assemblies in computers, laptops, medical equipment, and avionics industries where secure, high-quality PCB connections are critical.
Supports both board-to-board and wire-to-board connector systems. Gold-plated copper alloy contacts for low resistance and durability. Shrouded design protects contacts and improves connection reliability. Glass-filled polyester housing withstands impact and chemical exposure.
Wide temperature range for use in harsh industrial environments. Center slot polarization for precise mating and prevention of mis-insertions. Through hole mounting with solder termination for mechanical strength. Compact 2-row, 16 contact configuration optimizes PCB space usage.
Explore other PCB header products and electronic components on EnvMart to find compatible connectors and accessories for your electronic assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 1.75A, making it suitable for low power applications.
This PCB header has a voltage rating of up to 1000V.
The contacts are made from copper alloy with gold plating, while the housing is constructed from glass-filled polyester.
The contacts are arranged with a standardized pitch of 2.54 mm.
It is designed for through-hole mounting with a solder termination type for reliable mechanical stability.
The operating temperature range for this PCB header is from -55°C to 105°C, allowing it to function in extreme conditions.
This model features 16 male contacts arranged in 2 rows.
It is compatible with both board-to-board and wire-to-board connector systems.
The header includes center slot polarization, which helps prevent incorrect mating and improves insertion accuracy.
This model is applicable in industries such as computers, medical equipment, and avionics, where secure PCB connections are critical.
The contacts are oriented in a right angle configuration, which facilitates optimal routing on printed circuit boards.
The shrouded design protects the contacts and improves connection reliability during use.
