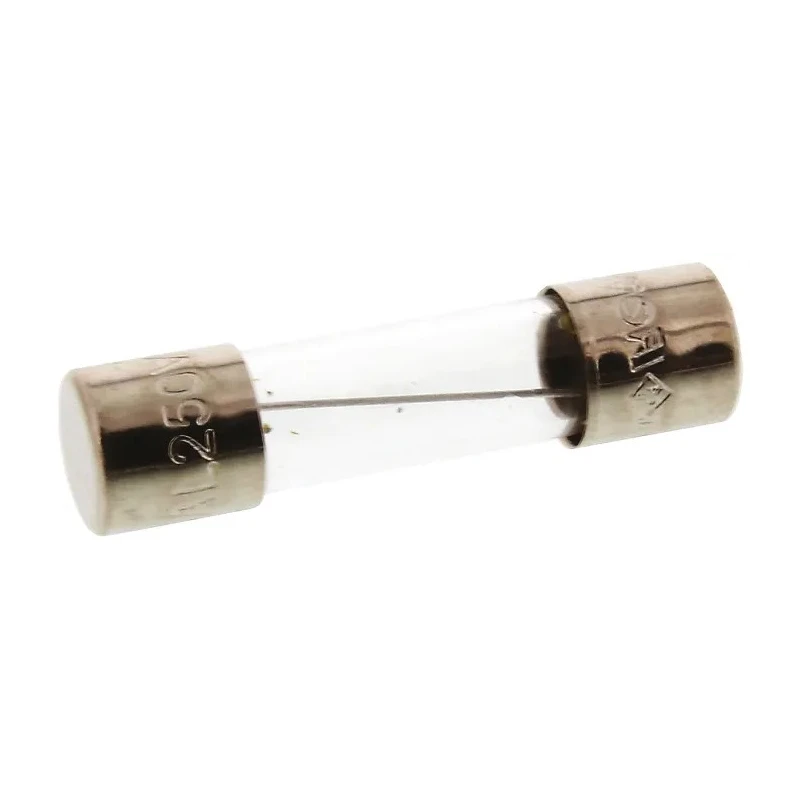

Eaton Cartridge Fuse 5A Time Delay Glass Body 5 x 20 mm, 250V AC S506-5-R

The Eaton S506-5-R Cartridge Fuse is a 5 amp, 250 volt AC time delay fuse with a glass body measuring 5 x 20 mm. This fuse is part of Eaton Bussmann's S506 series and designed for circuit protection against overcurrent conditions and short circuits in various electronic and electrical systems.

The glass cartridge design allows easy visual verification of fuse status, enabling quick maintenance and replacement when blown. The 5 a current rating and slow blow T characteristic allow it to tolerate temporary current surges without nuisance blowing, making it suitable for applications with inrush currents like motors and transformers.

With a length of 20 mm and diameter of 5 mm, this fuse fits into standard 5 x 20 mm fuse holders commonly found on circuit boards and panels. Its low breaking capacity (LBC) makes it appropriate for protecting sensitive electronics where fault currents are expected to be limited.

Certified to meet IEC 60127-2-3 standards and RoHS compliant, the fuse ensures reliability and environmental safety. Eaton, formerly known as Bussmann, manufactures this fuse in China, maintaining high industrial quality standards.

Typical industrial use cases include electrical automation systems, control panels, instrumentation devices, and electronic equipment protection in industrial, laboratory, and manufacturing environments.

Transparent glass body for easy inspection. 5A current rating with time delay (slow-blow) characteristic. Standard 5 x 20 mm cartridge size for broad compatibility. Low breaking capacity suited for low energy fault conditions.

Complies with IEC 60127-2-3 and RoHS standards. Ideal for electrical, automation, laboratory, and industrial applications.
