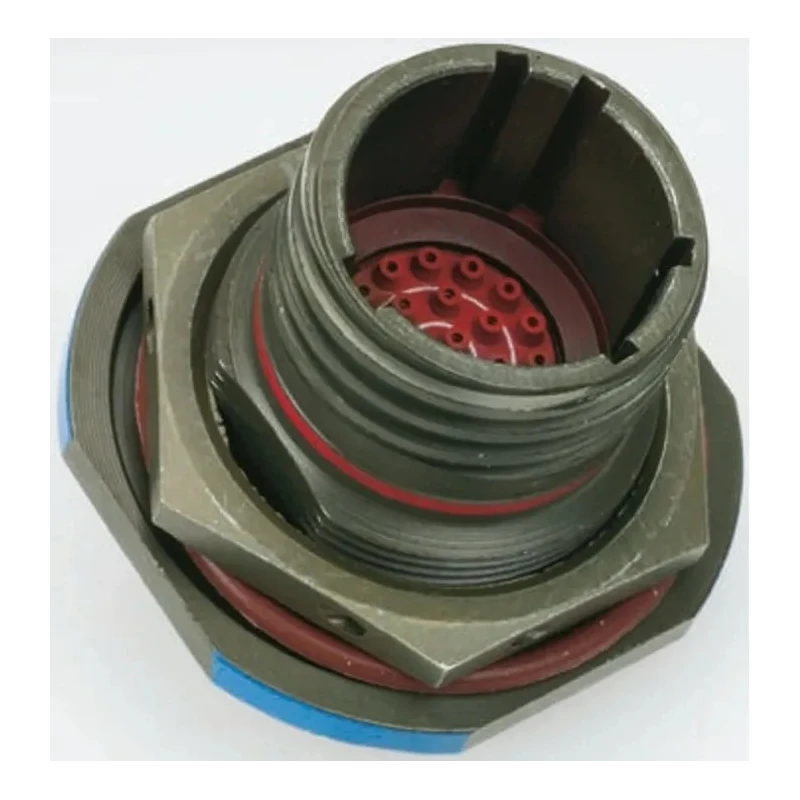

Amphenol Limited Copper Alloy Straight 6 Way Panel Mount MIL Spec Circular Connector TV07RW-11-98SN(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 850V dc |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV07RW-11-98SN(W52) |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 11 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- This connector features a panel mount type with a jam nut receptacle for secure installation.
- It supports a current rating of 7.5A and a voltage rating of 850V DC for reliable power transmission.
- The connector shell is made from aluminium with zinc cobalt plating to provide corrosion resistance and durability.
- The contact material is copper alloy with gold plating to ensure excellent conductivity and resistance to wear.
- The connector features a screw coupling mating type providing robust mechanical coupling.
- Operating temperature ranges from -65°C to 175°C allowing use in harsh environments.
- It supports six female contacts arranged in a straight orientation with strain relief to protect wiring integrity.
- The crimp termination type allows easy and secure contact installation.
Product Description
Amphenol Limited TV07RW-11-98SN(W52) is a high-quality copper alloy straight 6 way panel mount MIL Spec circular connector engineered to meet stringent MIL-DTL-38999 standards. It is designed for use in demanding industrial sectors such as aerospace, military, manufacturing, and communications where reliable, secure, and durable electrical connections are essential.
The connector features an aluminium housing with a robust zinc cobalt plating that provides excellent corrosion resistance and durability in tough conditions. The jam nut receptacle panel mount style ensures a secure attachment to equipment panels. It incorporates six female contacts fabricated from copper alloy and plated with gold to ensure optimal electrical conductivity, corrosion resistance, and long service life.
This connector is rated for a maximum current of 7.5 amperes and can withstand voltages up to 850 volts DC, making it suitable for a variety of power and signal applications. Its operating temperature range from -65°C to 175°C allows it to be used reliably in extreme temperature environments. The straight orientation and strain relief features protect wiring integrity during installation and operation.
The connector uses a screw coupling mating mechanism to ensure robust mechanical retention and quick assembly/disassembly. It has crimp type terminations that facilitate secure and reliable contact installation. The product is manufactured in India and conforms to military standards ensuring high quality and consistency.
This connector is ideal for industrial, laboratory, aerospace, military, communications equipment, and other demanding environments requiring robust, MIL-spec electrical circular connectors. It is engineered to exceed the needs of applications requiring durability, secure coupling, and high electrical performance.
Panel mount jam nut receptacle with screw coupling. 6 female contacts with gold-plated copper alloy material. Rated at 7.5A current, 850V DC voltage. Housing is aluminium with zinc cobalt plating. Operating temperature range from -65°C to 175°C.
Crimp termination type for easy wiring. Strain relief provided to protect cable integrity. Meets MIL-DTL-38999 military standard. Made in India to high quality standards. Explore EnvMart for more industrial electronic components and Mil Spec Circular Connectors tailored to your professional requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 7.5A, making it suitable for various power applications.
The voltage rating is 850V DC, allowing for reliable power transmission in various setups.
The housing is made from aluminium with zinc cobalt plating, while the contacts are copper alloy with gold plating for enhanced conductivity.
It operates within a temperature range of -65°C to 175°C, allowing it to function in extreme environments.
This model features six female contacts arranged in a straight orientation.
It uses a crimp termination type, which facilitates secure and reliable contact installation.
It features a panel mount type with a jam nut receptacle for secure installation.
This model utilizes a screw coupling mating type, ensuring robust mechanical coupling and ease of assembly.
It conforms to the MIL-DTL-38999 military standard, ensuring high quality and reliability.
The shell is plated with zinc cobalt, providing corrosion resistance and durability.
It is manufactured in India, adhering to high quality standards.
It is designed for use in demanding industrial sectors such as aerospace, military, manufacturing, and communications.
