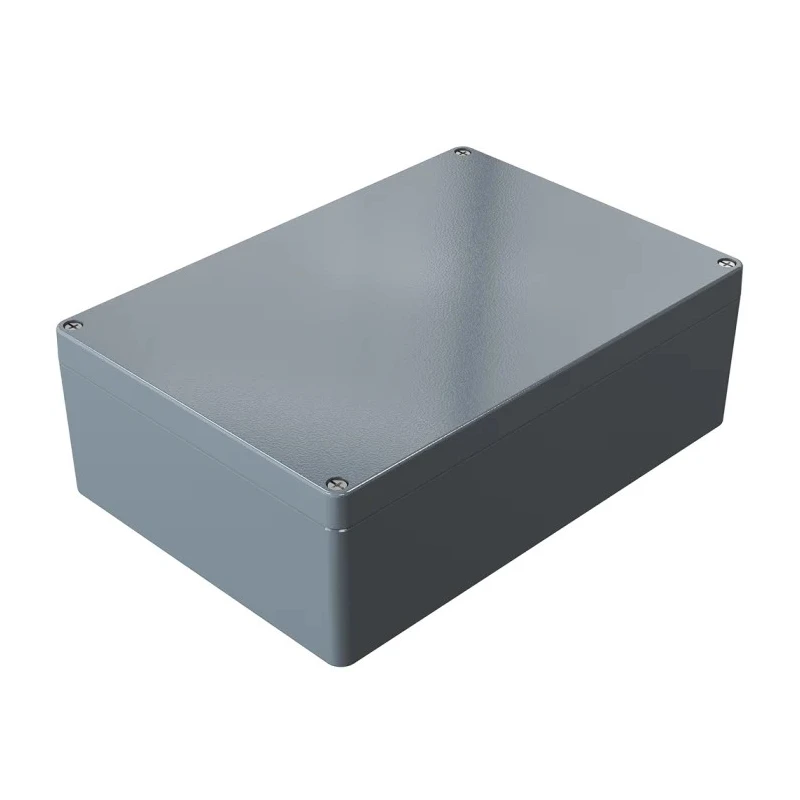

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure, IP66, IK09, 330 mm x 230 mm x 330 mm 01233311

Rose 01233311 Aluminium Standard Series Grey Lid Die Cast Aluminium Enclosure, with dimensions of 330 mm height, 230 mm width, and 330 mm depth, provides robust protection for sensitive electronic components in industrial, electrical, and automation applications.

Constructed from die cast aluminium, this enclosure offers superior impact resistance and corrosion protection, while its IP66 ingress protection rating ensures safety against dust ingress and high-pressure water jets. The IK09 rating further certifies its ability to withstand mechanical impacts, extending durability in demanding operational environments.

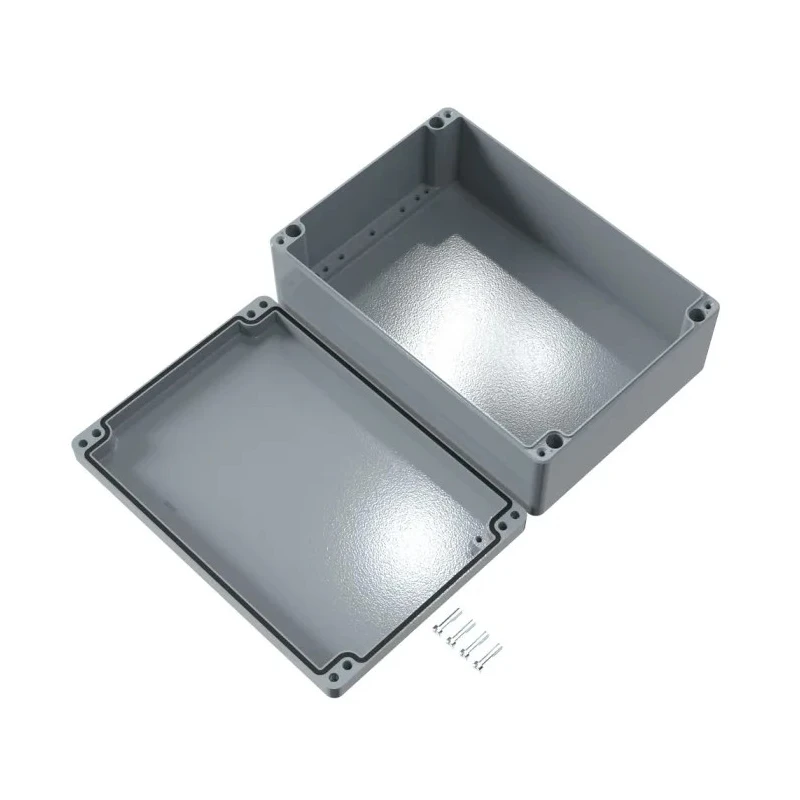

The enclosure is equipped with a polyurethane gasket that forms a tight seal to prevent dust and moisture ingress. Stainless steel captive screws secure the grey lid firmly, deterring unauthorized access and ensuring continued protection of internal components.

This product meets UL 508A standards for industrial control panels, affirming compliance with strict industrial safety and performance criteria. Its compact size supports the housing of small electronic modules and assemblies, making it ideal for electrical installations, assembly and packaging conveyor systems, and food and beverage industry environments.

Its broad operating temperature range from -40°C to +90°C makes it suitable for use in various industrial and commercial scenarios, including harsh outdoor conditions. The enclosure's lightweight design, weighing just around 3.66 kg, facilitates easier mounting and handling without sacrificing strength.

The enclosure is made of die cast aluminium ensuring durability and corrosion resistance. Compact external dimensions of 330 mm height, 230 mm width, and 330 mm length for versatile installations. Features an IP66 rating providing dust-tight and protection against powerful water jets.

IK09 rating guarantees high impact resistance against mechanical shocks. Gasket material is polyurethane for an effective seal against contaminants. Supplied with stainless steel captive screws to secure the grey lid and prevent unauthorized access.

Complies with UL 508 standards, suitable for industrial control panel applications. Designed for use in demanding environments with a broad operating temperature range from -40°C to +90°C. Applications include electrical installations, electronic modules, assembly conveyors, and the food & beverage industry.

Lightweight at approximately 3.66 kg, minimizing mounting strain. Explore EnvMart for a wide range of Electrical Enclosures, including high-quality aluminium and die cast models designed to meet diverse industrial and commercial needs.
