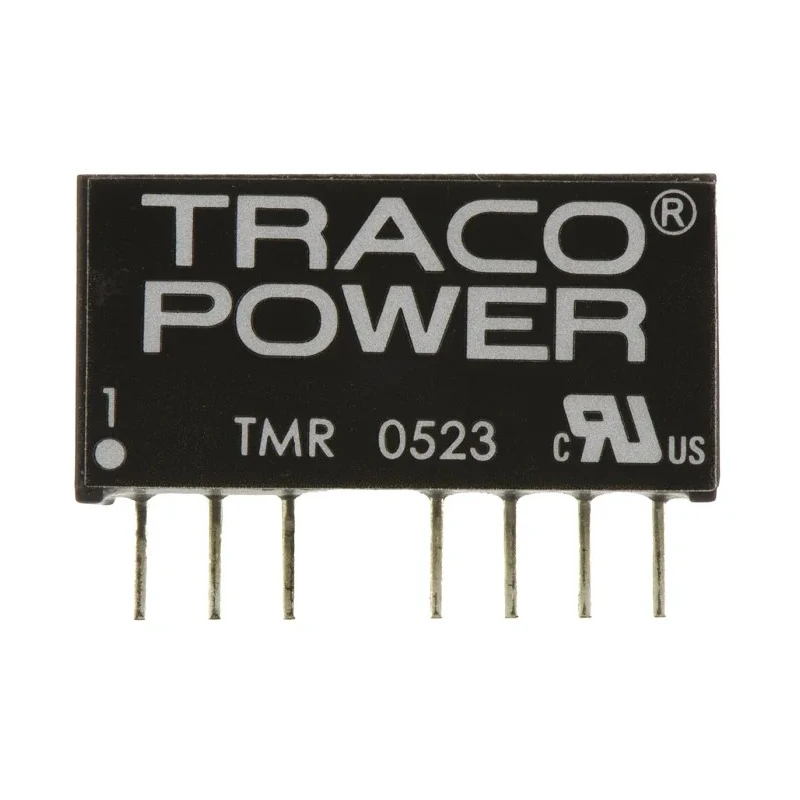

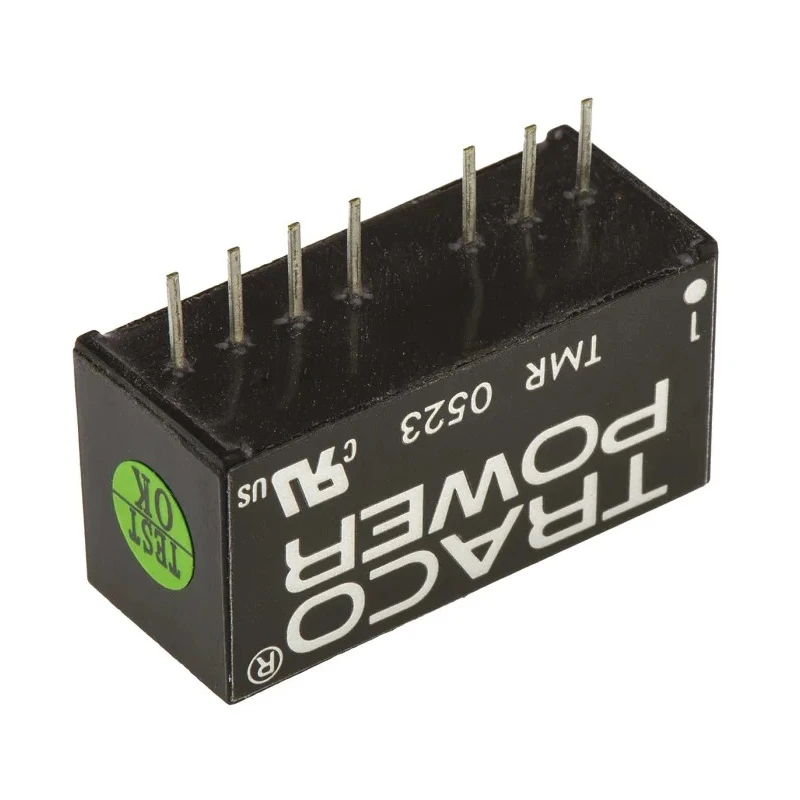

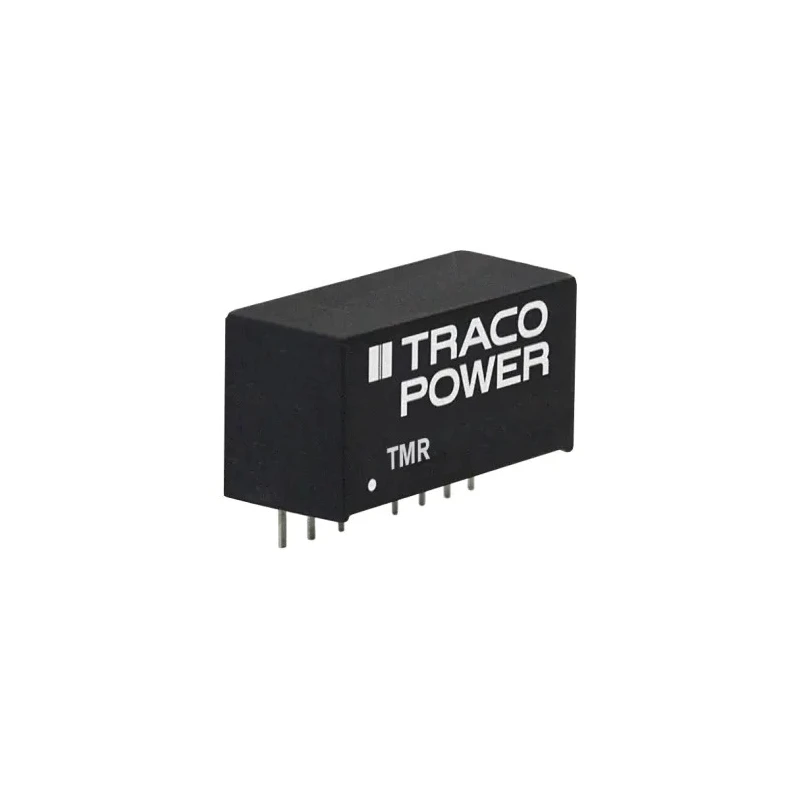

TRACOPOWER 2W Regulated Isolated DC-DC Converter SIP-8 Through Hole: 15V DC Output, 67mA, 9V-4.5V DC Input, 85°C Max TMR 0523
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 2 DC/DC Converter, 15V dc/ 67 mA, 9 |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | TMR 0523 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | TMR 2 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 4900000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 67mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input voltage range |
Key Features
- Compact SIP-8 plastic package with a small footprint of approximately 2.0 cm².
- High efficiency of 81% suitable for industrial applications.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Indefinite short circuit protection for reliable operation.
- Remote On/Off control functionality for ease of integration.
- 1.6kV DC isolation voltage enhances safety and noise immunity.
- Fully RoHS compliant and UL/cUL 60950-1, IEC/EN 60950-1 approved.
Product Description
TRACOPOWER TMR 0523 is a 2W SIP-8 through-hole DC-DC Converter offering regulated isolated dual output with 15V DC voltage at 67mA output current, designed for input voltages ranging from 4.5V to 9V DC. It is optimized for demanding industrial, communication equipment, instrumentation, and electronic applications requiring compact, highly efficient, and reliable power conversion.
The compact SIP-8 package occupies only 2.0 cm² area, enabling space-saving designs. It delivers excellent efficiency of 81% while maintaining wide input voltage flexibility with a 2:1 ratio. The converter operates safely in harsh temperature conditions, from -40°C up to 85°C maximum, making it suitable for outdoor and industrial environments.
Features include indefinite short-circuit protection, remote On/Off control, and isolation voltage of 1.6kV DC, ensuring robust and noise-immune operation. The device complies fully with RoHS standards and carries UL/cUL and IEC/EN certifications, confirming quality and safety standards required in professional installations.
Typical applications encompass industrial automation, communication systems, instrumentation devices, and general electronics requiring isolated and regulated DC power supplies. Package dimensions are compact with 21.8mm length, 9.2mm width, and 11.1mm depth, facilitating integration into tight PCB layouts.
Wide 2:1 input voltage range ensuring flexible power supply. Compact SIP-8 plastic package with a small footprint of approximately 2.0 cm². High efficiency of 81% suitable for industrial applications. Operating temperature range from -40°C to 85°C for harsh environments.
Indefinite short circuit protection for reliable operation. Remote On/Off control functionality for ease of integration. 1.6kV DC isolation voltage enhances safety and noise immunity. Low profile with dimensions: Length 21.8mm, Width 9.2mm, Depth 11.1mm.
Fully RoHS compliant and UL/cUL 60950-1, IEC/EN 60950-1 approved. Discover more power supply and converter solutions at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 15V DC with a maximum output current of 67mA.
It operates with input voltages ranging from 4.5V to 9V DC, featuring a 2:1 input ratio.
The dimensions of this unit are 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
The maximum operating temperature is 85°C, making it suitable for harsh environments.
Yes, it features indefinite short circuit protection for reliable operation.
It has an efficiency rating of 81%, which is suitable for industrial applications.
This model comes in a compact SIP-8 plastic package, occupying a footprint of approximately 2.0 cm².
It offers an isolation voltage of 1.6kV DC, enhancing safety and noise immunity.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This model features two outputs, providing versatility for various applications.
Yes, it is fully RoHS compliant and carries UL/cUL and IEC/EN 60950-1 approvals.
It is optimized for industrial automation, communication systems, instrumentation devices, and general electronics requiring isolated and regulated DC power supplies.
