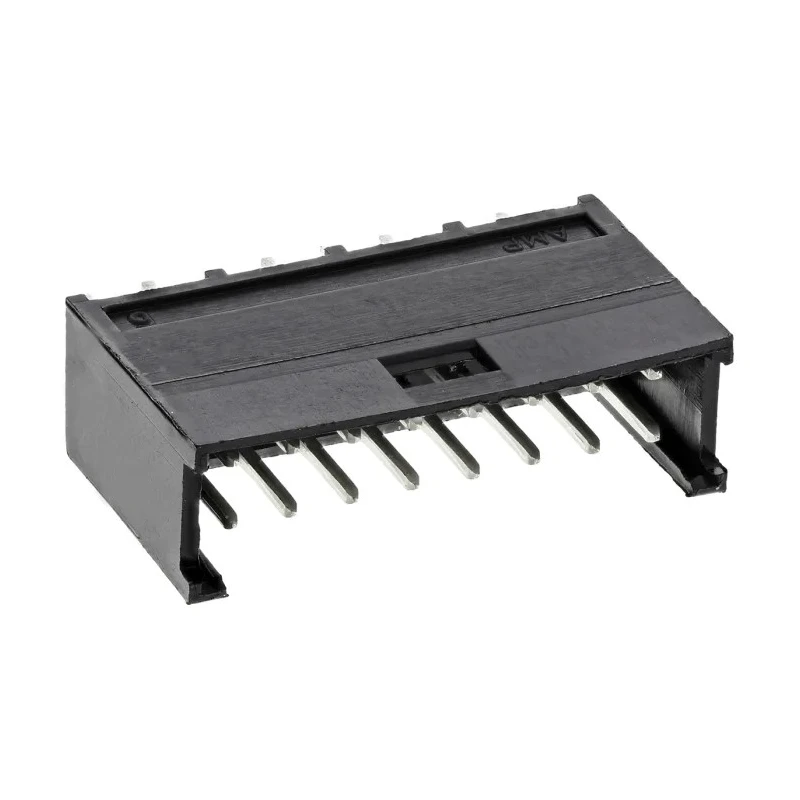

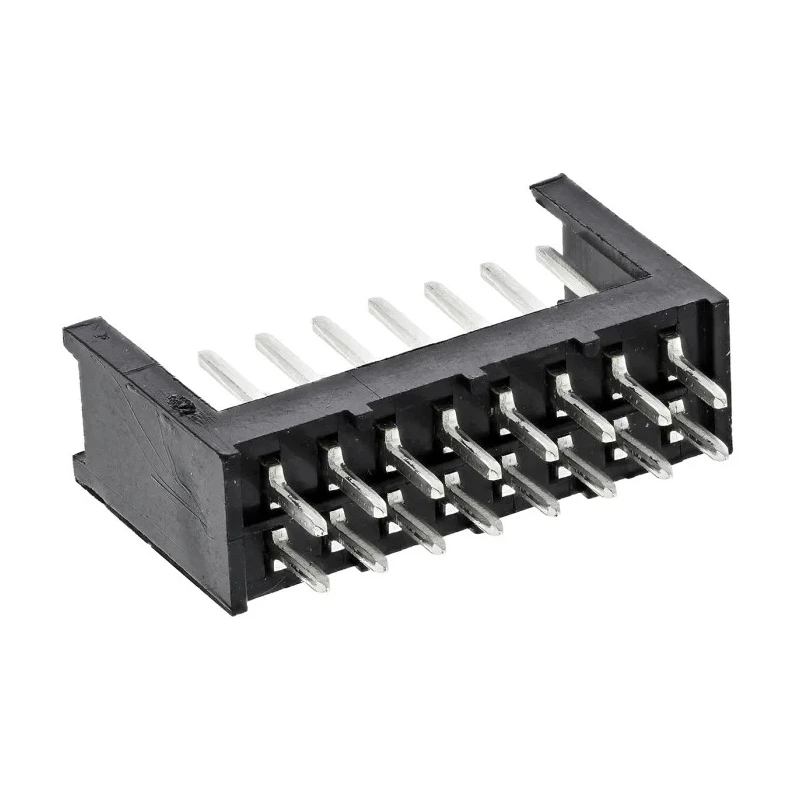

TE Connectivity AMPMODU Mod II 2.54 mm Shrouded Straight Through Hole PCB Header 16 Contacts 2 Row 280385-1

TE Connectivity 280385-1 AMPMODU Mod II 2.54 mm Shrouded Straight Through Hole PCB Header is a precision connector designed for electrical interconnect applications requiring durability and reliable signal integrity. It features a compact 2-row, 16-contact configuration with a 2.54 mm pitch. The shrouded housing on three sides provides excellent pin protection and ensures proper mating polarity to prevent connection errors.

The phosphor bronze contacts with tin plating deliver consistent electrical performance under high current loads up to 3 A and voltage up to 750 V. This connector is built to withstand operating temperatures ranging from -65°C to 105°C, making it suitable for harsh industrial and automotive environments.

The housing material is thermoplastic, ensuring mechanical robustness while maintaining lightweight characteristics. The through-hole mount type and straight orientation allow for easy PCB integration during automated assembly. A detent window in the housing results in a secure locking mechanism when mated with compatible receptacle connectors, enhancing vibration resistance.

Applications for this connector include automotive control systems, industrial and test equipment, computers, telecommunications, medical instruments, storage devices, and general-purpose appliances. The AMPMODU Mod II Interconnect system is widely respected for its compact design and reliable performance in board-to-board and wire-to-board connection systems.

Shrouded header protects pins and prevents damage during handling. Polarized housing prevents mismating and ensures correct assembly. Detent window provides secure positive locking with receptacle connectors. Suitable for automotive, industrial, telecommunications, medical, and computer equipment.

Made of thermoplastic housing with phosphor bronze contacts plated in tin for reliable conductivity. Supports 3 A current and voltage rating of 750 V. Through hole mounting with straight orientation for PCB assembly. Operating temperature range from -65°C to 105°C for demanding environments.

Tail pin length of 3.5 mm provides solid solder connections.

Choose TE Connectivity AMPMODU Mod II rated PCB Headers for dependable high-quality interconnections in industrial, laboratory, and manufacturing contexts. Explore the wide range of PCB connectors available at EnvMart to meet your electronic component requirements.
