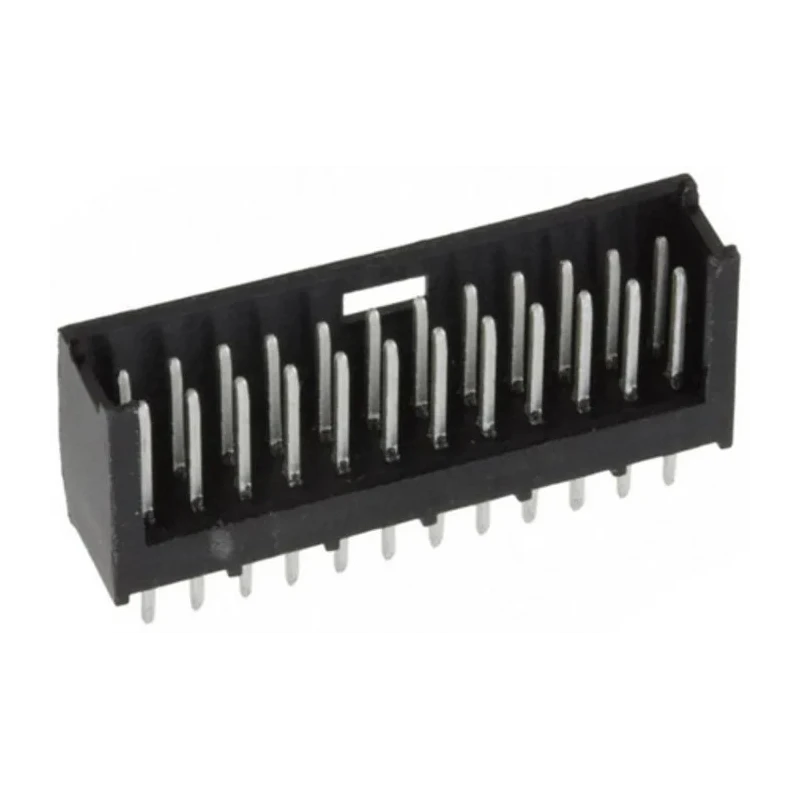

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header 24 Contacts 2.54 mm Pitch 2 Row Shrouded 280521-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280521-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The header has 24 contacts arranged in 2 rows with a 2.54 mm pitch.
- Shrouding provides pin protection and polarization to prevent mismating.
- The connector is suitable for board-to-board and wire-to-board applications.
- Contact material is phosphor bronze with tin plating for reliable solder termination.
- Rated for 3A current and 750V voltage with a temperature range of -65°C to 105°C.
- Tail pin length is 3.5 mm, designed for solder termination.
- The housing is made of durable thermoplastic material ensuring mechanical stability.
- Applications include automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and appliances.
Product Description
TE Connectivity 280521-1 AMPMODU MOD II Series Straight Through Hole PCB Header features 24 male contacts arranged in 2 rows with a 2.54 mm pitch, designed for secure and reliable electrical connections.
This PCB header has a shrouded thermoplastic housing that provides contact pin protection and polarization to prevent incorrect mating with connectors, ensuring system reliability.
It supports board-to-board and wire-to-board connector systems, with phosphor bronze contact material plated with tin for excellent conductivity and solderability. The header is mounted through hole and terminated by soldering, offering durable mechanical and electrical performance.
Rated at 3A current and designed to withstand voltages up to 750V, it operates effectively across a temperature range from -65°C to 105°C. The 3.5 mm tail pin length supports secure PCB insertion and connection.
These connectors are widely used in industrial, automotive, telecommunications, medical, computing, and storage system applications due to their compact design and dependable performance.
The AMPMODU Interconnect system is an established standard for automation and control applications, combining reliability with economical design flexibility. Shrouding protects pins and prevents mismating. Polarized housing ensures correct connector orientation.
Robust tin-plated phosphor bronze contacts for reliable electrical conductivity. Designed for through-hole mounting and solder termination. Wide operating temperature range from -65°C to 105°C. Rated for 3A current and 750V voltage.
Ideal for automotive, industrial, test equipment, telecommunications, medical, and computing industries. Explore more high-quality PCB Headers and connectors at EnvMart for diverse industrial and technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a current of 3A.
It can withstand voltages up to 750V.
The contacts are arranged with a pitch of 2.54 mm.
It operates effectively across a temperature range from -65°C to 105°C.
This PCB header features 24 male contacts arranged in 2 rows.
The termination type for this connector is solder.
The contacts are made of phosphor bronze with tin plating, and the housing is made of thermoplastic material.
The tail pin length is 3.5 mm, designed for secure solder termination.
It is suitable for automotive controls, industrial and test equipment, telecommunications, medical instruments, and computers.
This model is shrouded, providing pin protection and polarization to prevent mismating.
It supports board-to-board and wire-to-board connector systems.
The country of origin for this PCB header is India.
