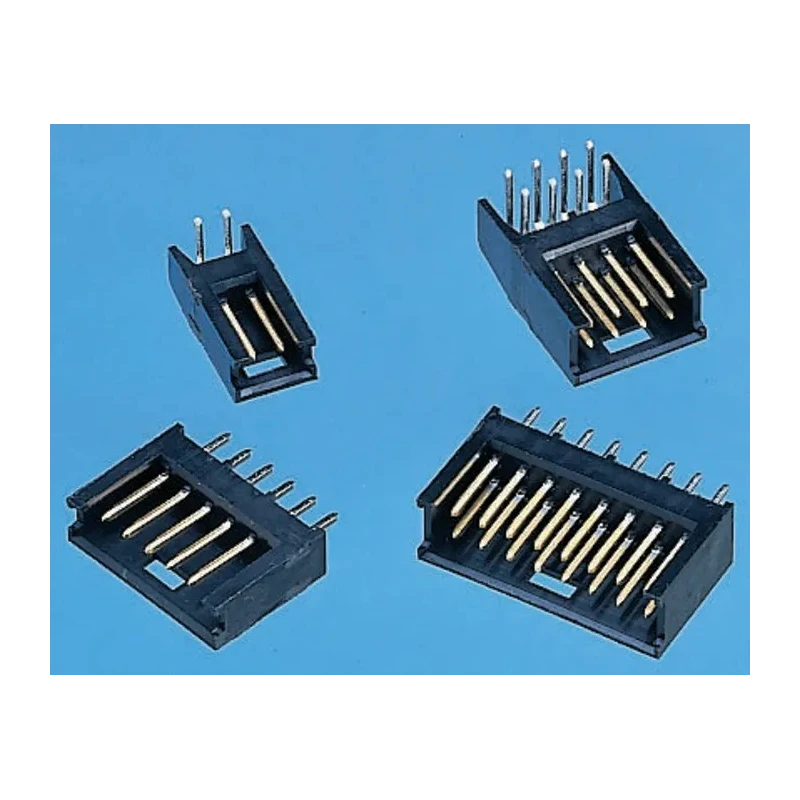

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header 12 Contact, 2.54 mm Pitch, 1 Row 280520-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280520-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Constructed with brass contacts plated in gold for reliable conductivity.
- Thermoplastic housing provides durable insulation and mechanical strength.
- Shrouded design with polarization to prevent mismating and ensure connection integrity.
- Supports through-hole mounting with solder termination for secure PCB attachment.
- Designed for operating temperature range from -65°C to 105°C suitable for demanding environments.
- Compatible with board-to-board and wire-to-board connector systems.
- Contact tail pin length is 3.5 mm for optimal soldering reliability.
- Rated for voltage up to 750 V offering high electrical safety.
Product Description
TE Connectivity 280520-2 AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header is a high-quality connector designed for industrial and electronics applications. Featuring 12 gold-plated brass contacts, this header ensures excellent electrical conductivity and corrosion resistance.
The thermoplastic housing is shrouded on three sides and polarized to prevent misalignment during assembly. The detent positive locking mechanism provides a secure locking connection, enhancing reliability in critical environments.
Its standard 2.54 mm pitch and single-row configuration allow for versatile use in PCB assemblies. The header supports through-hole mounting with a 3.5 mm tail pin length optimized for solder termination processes.
Operating reliably between -65°C and 105°C, this connector withstands a wide range of environmental conditions. Rated for up to 750 V, it meets demanding electrical safety requirements.
Applications include automotive control systems, industrial and test equipment, computer hardware, telecommunications devices, medical instruments, storage equipment, and a broad spectrum of appliance electronics.
Constructed with brass contacts plated in gold for reliable conductivity. Thermoplastic housing provides durable insulation and mechanical strength. Shrouded design with polarization to prevent mismating and ensure connection integrity.
Supports through-hole mounting with solder termination for secure PCB attachment. Designed for operating temperature range from -65°C to 105°C suitable for demanding environments. Compatible with board-to-board and wire-to-board connector systems.
Contact tail pin length is 3.5 mm for optimal soldering reliability. Rated for voltage up to 750 V offering high electrical safety. Features a detent positive locking mechanism for secure connector engagement. Ideal for automotive, industrial, telecommunications, medical, and computing applications.
This TE Connectivity AMPMODU MOD II shrouded PCB header offers a compact, reliable interconnect solution trusted in numerous industrial and commercial product lines. Explore EnvMart's extensive catalog for compatible connectors and accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of up to 750 V, ensuring high electrical safety for various applications.
It operates reliably within a temperature range of -65°C to 105°C, making it suitable for demanding environments.
The header features 12 contacts, providing multiple connection points for electrical circuits.
This model supports through-hole mounting, which allows for secure attachment to printed circuit boards (PCBs).
The contact pitch for this header is 2.54 mm, which is a standard size for many PCB applications.
It is constructed with brass contacts plated in gold for conductivity, and a thermoplastic housing for insulation and mechanical strength.
The tail pin length is 3.5 mm, optimized for reliable soldering during installation.
Yes, the shrouded design includes polarization features to prevent mismating and ensure connection integrity during assembly.
It is compatible with both board-to-board and wire-to-board connector systems, providing versatility in applications.
This model uses solder termination, which provides a secure connection to the PCB.
The contacts in this header are male, designed to connect with female counterparts in various applications.
This connector is suitable for automotive control systems, industrial equipment, telecommunications devices, and medical instruments, among others.
