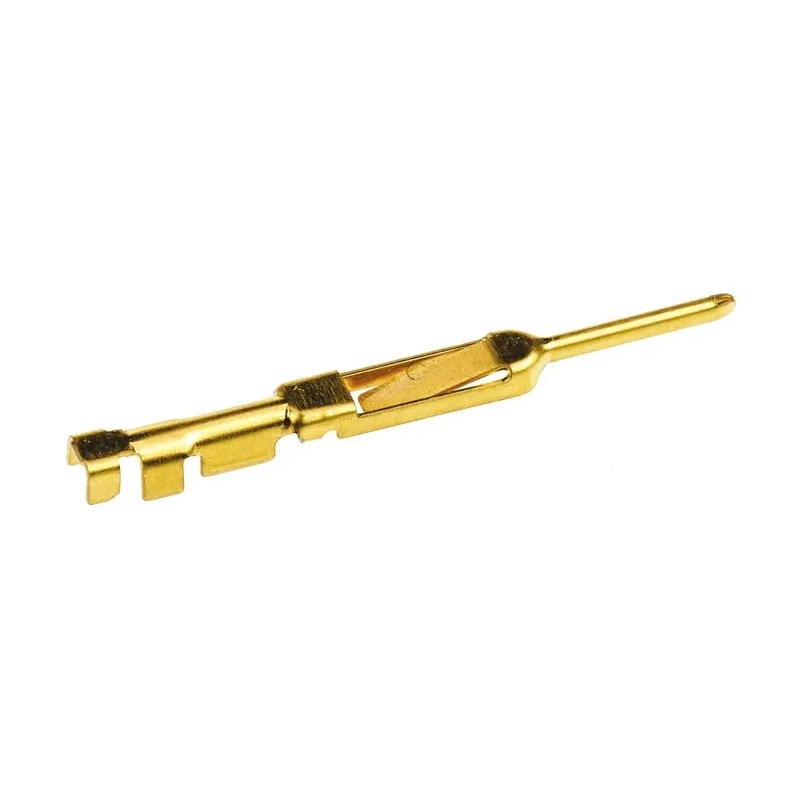

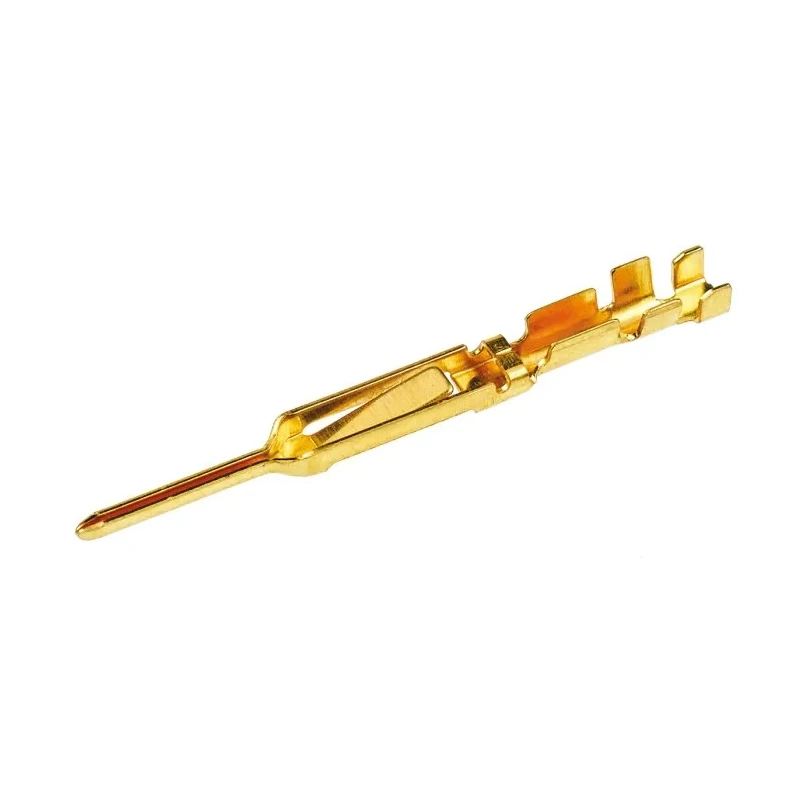

TE Connectivity FFC Series Male Crimp Terminal, 2A Current, 22-26 AWG, Gold Plated Contact 86561-6

TE Connectivity 86561-6 is a FFC Series Male Crimp Terminal designed for electronic component applications requiring reliable and compact wire connections. It supports a current rating of 2A and is compatible with FFC connector housings, providing robust and stable male pin contact connections.

The contact features gold plating of 0.4μm on the contact area with a gold flash finish on the remainder, offering excellent corrosion resistance and electrical conductivity. The contact material is phosphor bronze, characterized by its strength and conductivity, ideal for durable electronic assembly.

This crimp terminal operates over a temperature range from -55°C to 105°C, making it suitable for various industrial and commercial electronic environments where temperature fluctuations occur.

With a length of 21.1mm, this terminal is compact yet efficient, allowing easy integration into high-density printed circuit board (PCB) layouts. The termination type is crimp, ensuring a strong mechanical and electrical connection with the wire.

The maximum contact resistance of 25 milliohms ensures minimal electrical losses during operation, enhancing performance and reliability. It supports wire gauges from 22 AWG to 26 AWG, providing flexibility in wire selection.

Supports FFC connector housings for reliable wire to board connections. Contact plating includes 0.4μm gold on contact area with gold flash on remainder for corrosion resistance. Phosphor bronze contact material ensures durability and good conductivity.

Operates at temperatures from -55°C to 105°C for versatile applications. Termination is of crimp type, providing secure and efficient wire termination. Length of the terminal is 21.1mm, suited for compact electronic assemblies.

Maximum contact resistance is 25 milliohms ensuring low electrical loss. Compatible with 22-26 AWG wire sizes, accommodating various wire gauges.

This terminal is widely used in industrial, commercial, and manufacturing applications requiring high reliability in electronic wiring and connections. Its compatibility with the AMPMODU Mod II range and 2.54mm centerline configuration makes it useful in various cable-to-board and cable-to-cable applications.
