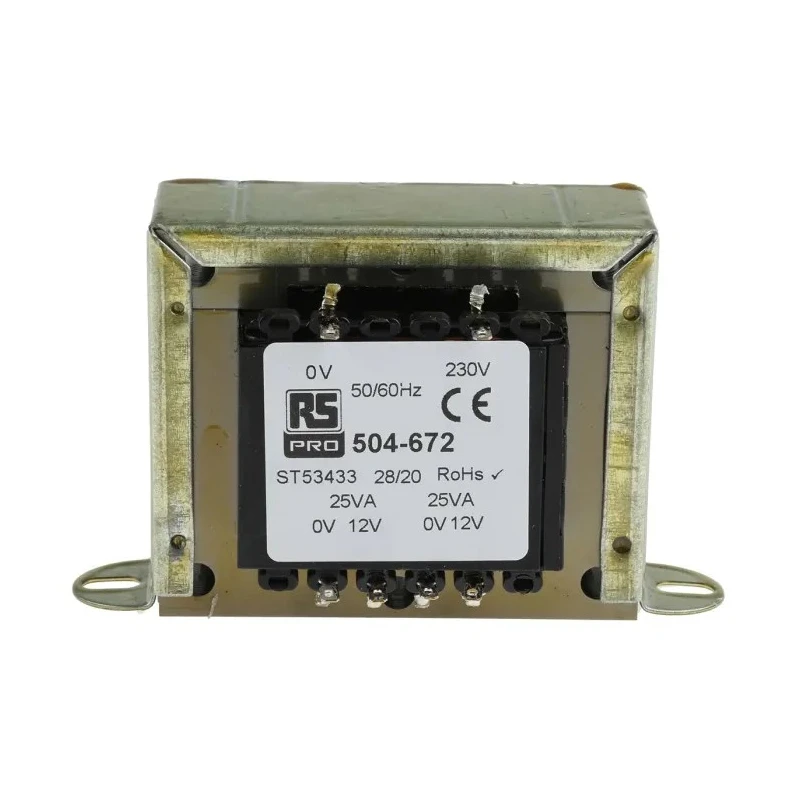

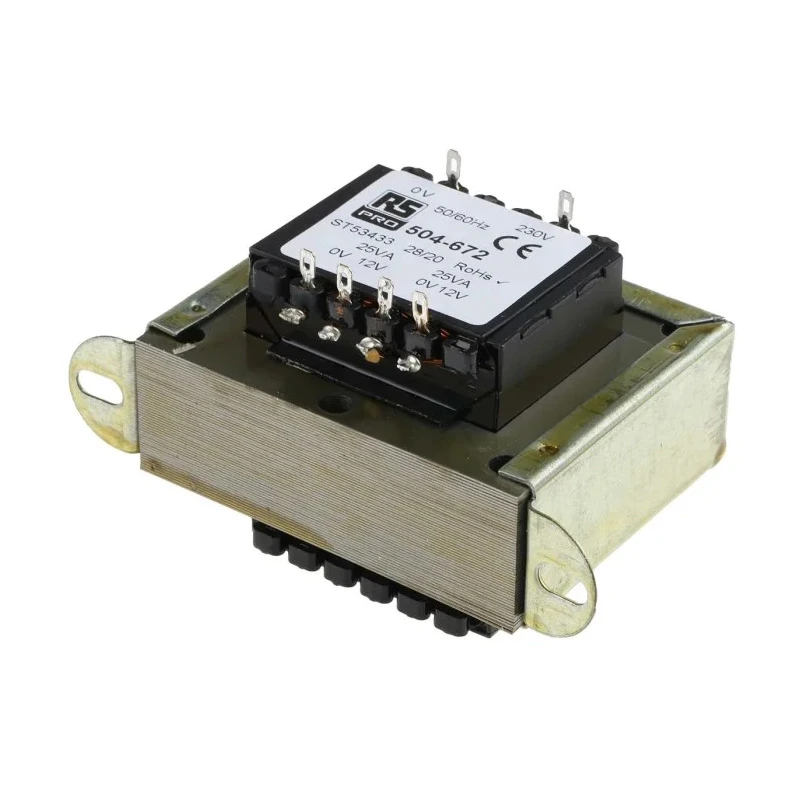

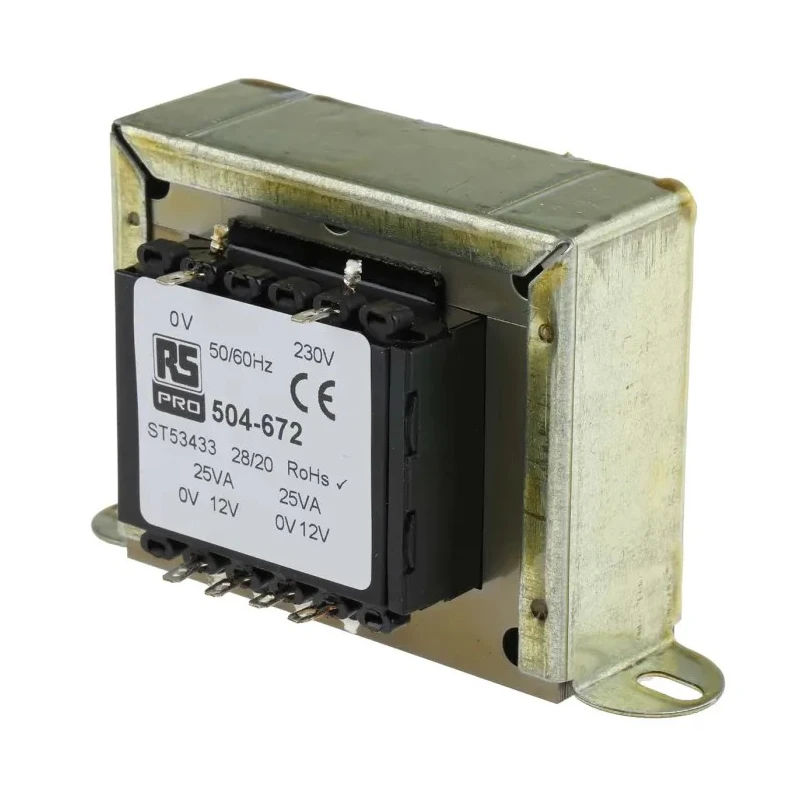

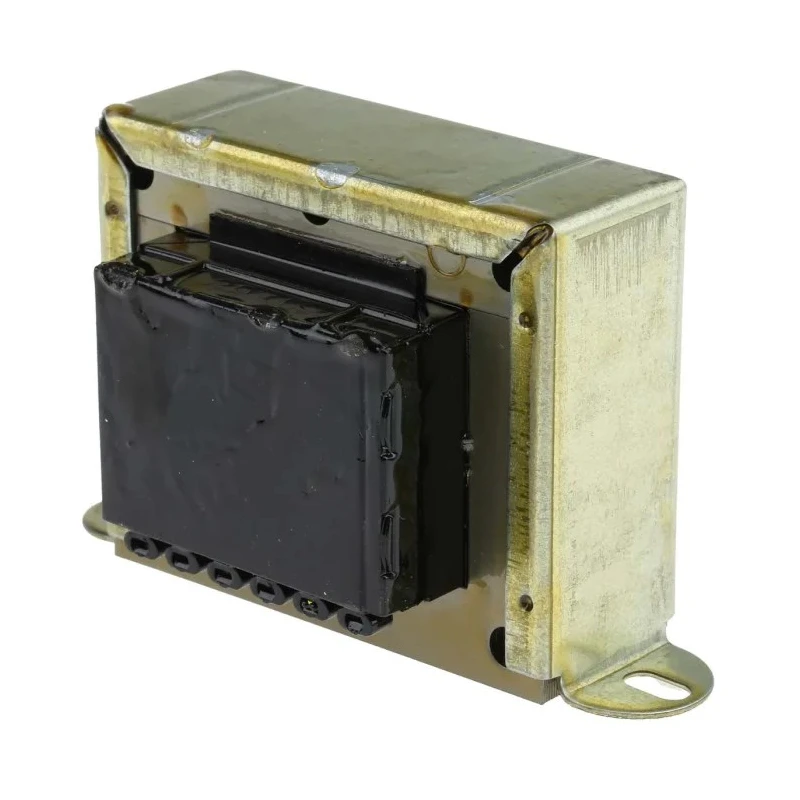

RS PRO 2 Output 50 VA Chassis Mount Transformer, 12 V ac, IECBSEN 615586, ASNZS 61558.1, RoHS, IECBSEN 615581, CE 504-672

RS PRO 504-672 2 Output 50 VA Chassis Mount Transformer delivers reliable secondary voltage of 12 V ac from a primary voltage of 230 V ac, supporting diverse industrial and electronic control systems applications. This chassis-mounted transformer features a robust clamp construction and complies with IECBSEN 615586, ASNZS 61558.1, RoHS, IECBSEN 615581, CE, and ASNZS 61558..6 standards, ensuring safety and regulatory adherence.

The transformer supports operating temperatures ranging from -30°C to 130°C, with a frequency range of 50 Hz to 60 Hz, enabling stable performance under varying environmental conditions. Its compact physical dimensions of 79 mm length, 62 mm width, and 37.65 mm depth make it ideal for tight installations requiring chassis mounting.

Constructed with a double section bobbin fully shrouded and full varnish impregnation, the unit offers high insulation quality and longevity. The two hole fixing wrap-over clamps facilitate secure mounting on chassis or panels, and solder tag termination ensures reliable electrical connections. Each unit undergoes 100% electrical and flash testing according to BS3535 and EN 60742 regulations, guaranteeing quality and safety.

The two separate secondary windings offer the flexibility to be connected in series or parallel, providing versatility in output voltage and current options. This transformer is well-suited for electromagnetic applications, relays, pumps, speed changers, heating elements, and other electronic and electrical control system uses.

Provides a power rating of 50 VA suitable for various industrial uses. Equipped with two separate secondary outputs for versatile voltage options. Supports operating temperatures from -30°C to 130°C. Compact dimensions measuring 79 mm length, 62 mm width, and 37.65 mm depth.

Construction includes double section bobbin fully shrouded for safety and efficiency. Includes two-hole fixing wrap-over clamps for secure chassis mounting. Transformer is 100% electrically and flash tested according to BS3535 and EN 60742 regulations.

Suitable for electromagnetic applications, relays, pumps, speed changers, and heating elements. Manufactured with full varnish impregnation for durability and performance.

This RS PRO Chassis Mount Transformer is manufactured in Poland and is a trusted choice for industrial, HVAC, manufacturing, water treatment, and laboratory electronic applications. Explore RS PRO products and transformers for more quality industrial electrical components.
