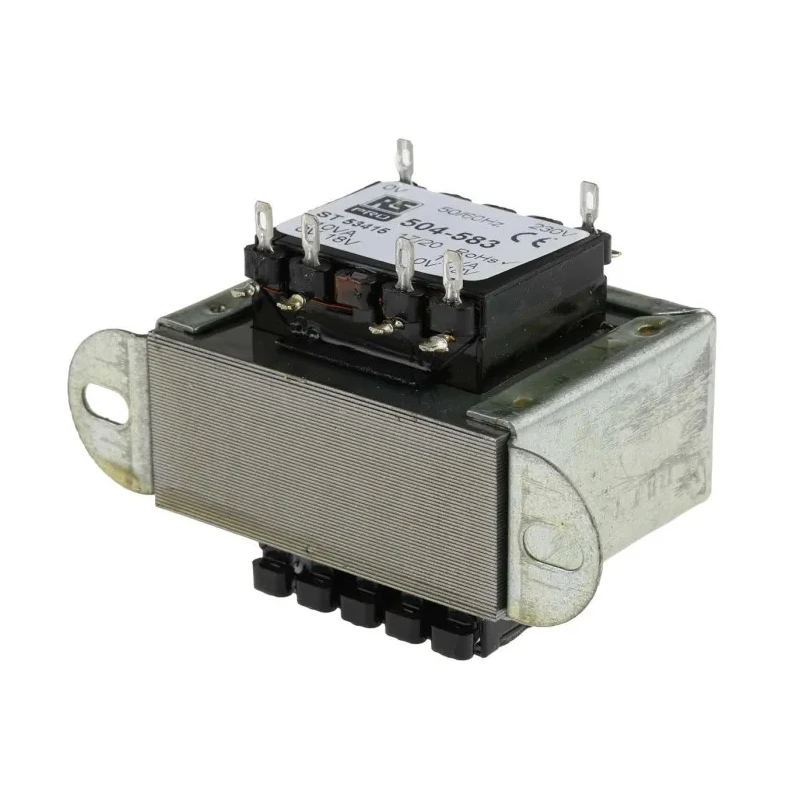

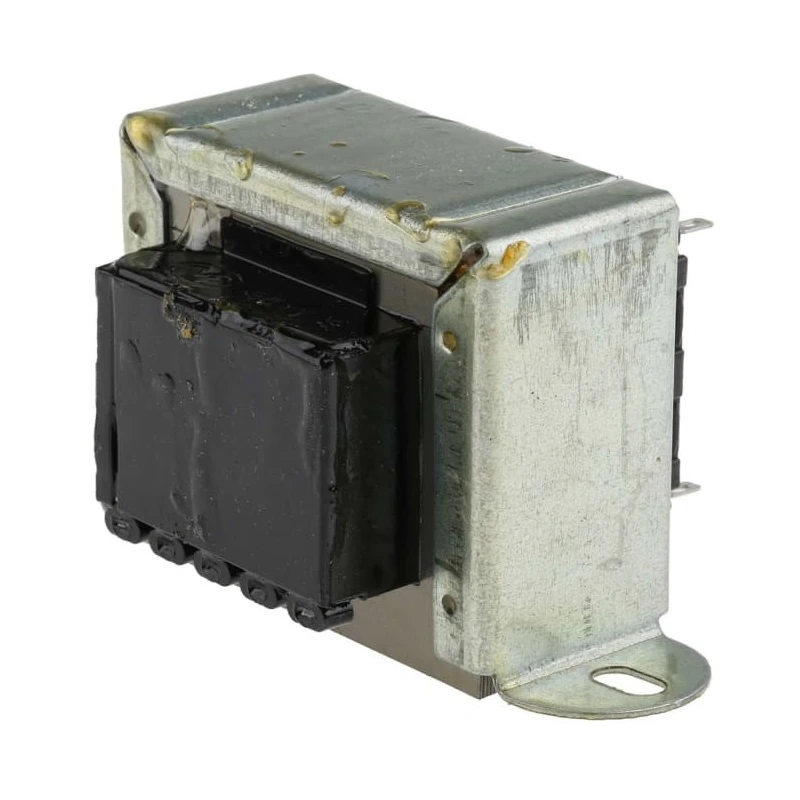

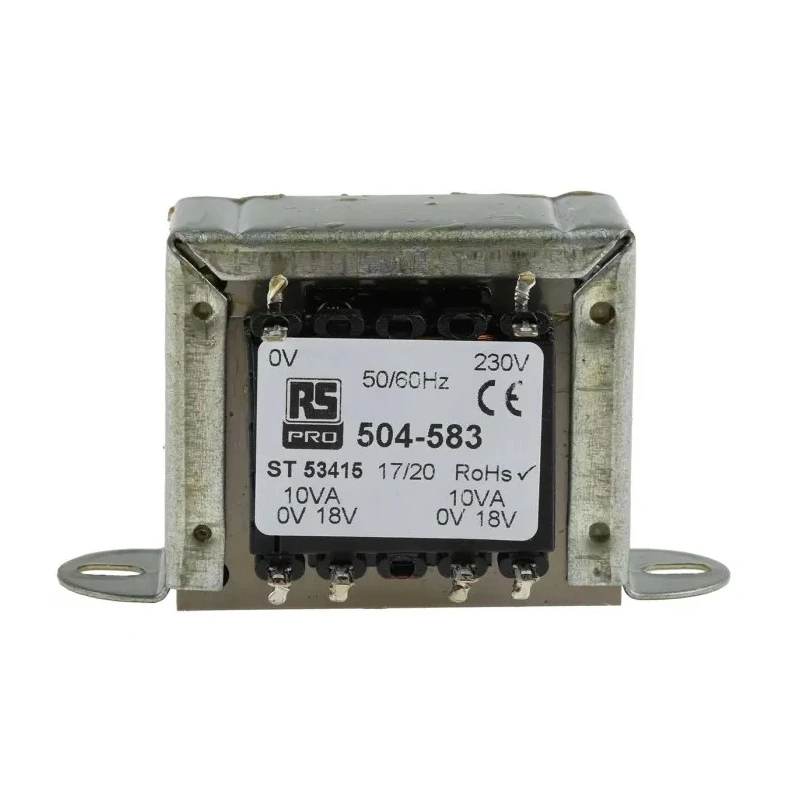

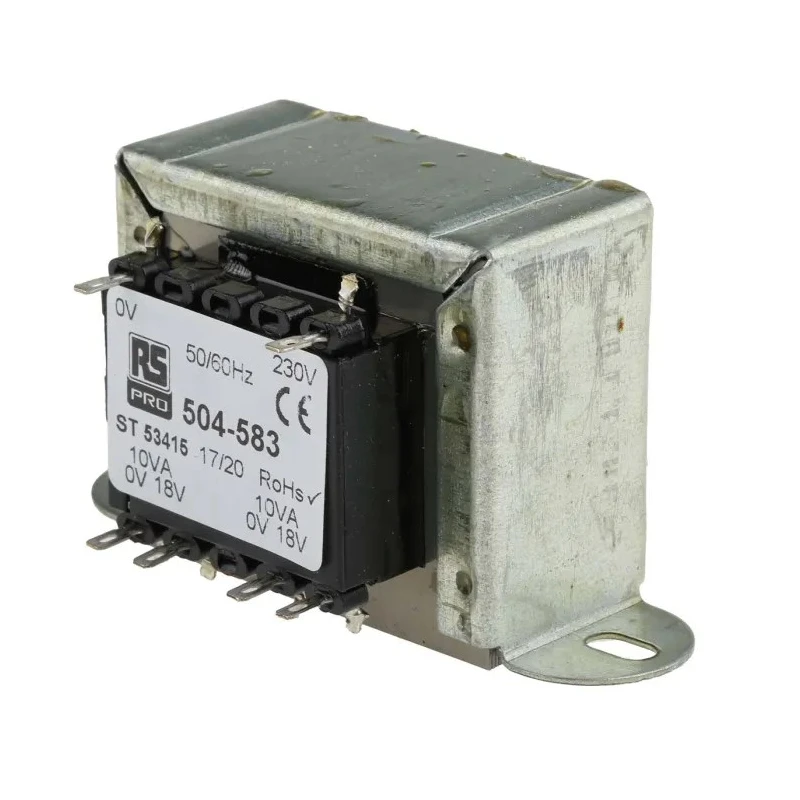

RS PRO 2 Output 20 VA Chassis Mount Transformer, 230 V ac Primary, 18 V ac Secondary, IECBSEN 61558-6, RoHS, ASNZS 504-583

RS PRO 504-583 Chassis Mount Transformer is a high-quality electrical component designed for use in systems requiring isolation and voltage conversion. With a power rating of 20 VA, this transformer features two output secondary windings at 18 V ac that can be connected in series or parallel to adapt output voltage and current as needed. It operates at a primary voltage of 230 V ac, making it suitable for a wide range of industrial and electronic applications.

The transformer is built with a robust clamp construction chassis mount design. It includes a double section bobbin that is fully shrouded and varnish-impregnated, ensuring mechanical durability and electrical safety. The two-hole fixing design with wrap-over clamps and fixing holes of 4.7 mm diameter facilitates secure mounting.

It is rated for operation at temperatures between -30°C and 130°C and frequencies between 50 Hz and 60 Hz. Weighting 210 grams and compact in size with dimensions 59 mm (L) x 57 mm (W) x 50 mm (D), it is ideal for electromagnetic applications, electrical control systems, relays, pumps, speed changers, and heating elements.

RS PRO transformers are stringently tested to comply with international standards such as IECBSEN 61558-6, RoHS, ASNZS 61558.1, and BS3535. This ensures the unit provides excellent isolating properties and reliable electrical performance, complying with critical safety standards for electronic components.

The solder tag termination supports straightforward electrical connections, and optional terminal shrouds are available to enhance safety. This transformer is suitable for use across industrial, laboratory, HVAC, manufacturing, and commercial environments where stable and safe voltage transformation is required.

Clamp construction chassis mount type transformer. 20 VA power rating with 2 outputs at 18 V ac. 230 V ac primary voltage for standard mains operation. Compliance with international electrical and safety standards. Operating temperature from -30°C to 130°C for wide application range.

Compact dimensions and moderate weight for easy integration. Solder tag termination and two-hole fixing design for secure installation. Electrically and flash tested for assured reliability.
