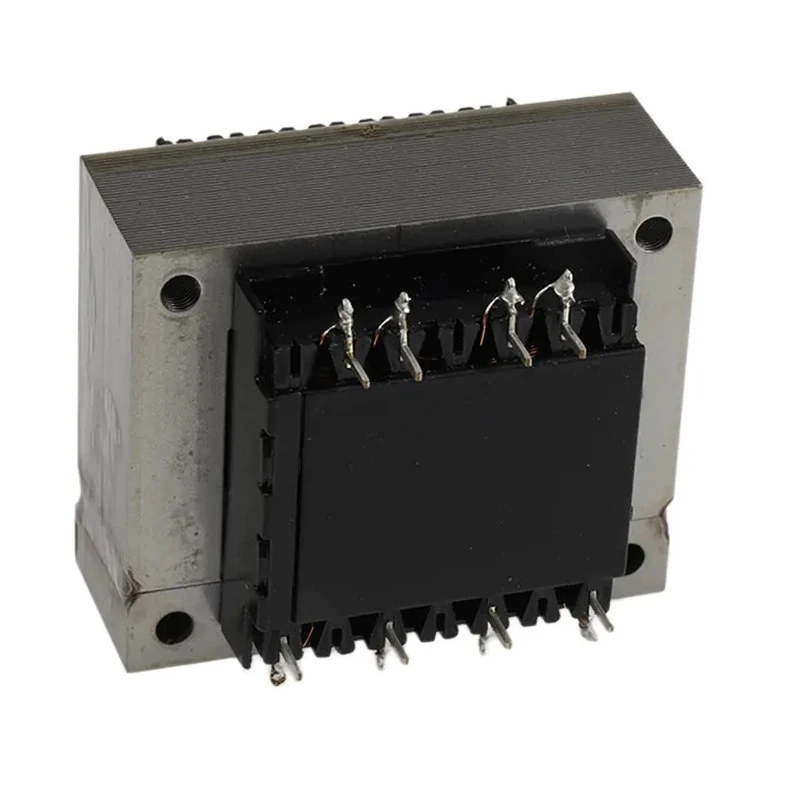

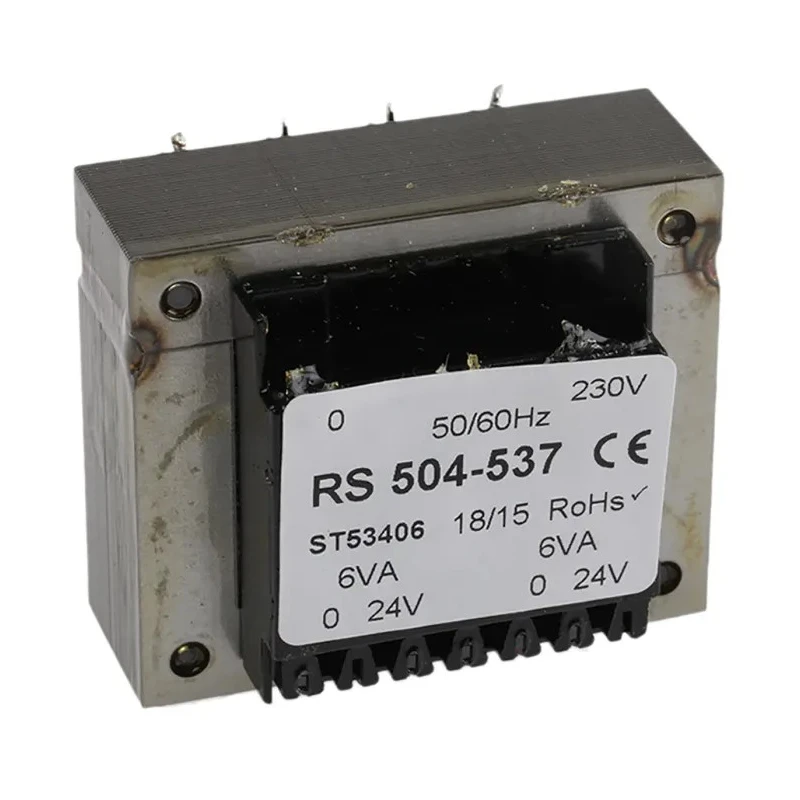

RS PRO PCB Transformer 5 to 24 V ac 2 Output Through Hole, 230 V ac Primary, 12VA Power, Dual Secondary Winding 504-537

RS PRO 504-537 is a robust PCB transformer featuring dual secondary windings, designed to deliver reliable step-down voltage conversion from a 230 V ac primary supply to selectable secondary outputs ranging from 5 to 24 V ac. This transformer is engineered for through-hole PCB mounting with fully shrouded bobbins and extra pins to ensure secure board installation.

The unit is fully impregnated with varnish and electrically flash tested to meet stringent quality controls. It offers a power rating of 12 VA, supports frequencies from 50 Hz to 60 Hz, and operates safely up to a maximum temperature of 130°C.

Its compact dimensions of 54 mm length, 45 mm width, and 41 mm depth enable easy integration into electronic assemblies where space is limited. The transformer also features an isolation voltage of 4 kVrms, ensuring safety against electrical surges and interference.

Certified to comply with multiple international standards such as ASNZS 61558..6, CE marking, RoHS directive, and IECBSEN 615581/615586, this product assures compliance with regulatory and safety requirements for commercial and industrial use alike.

Applications for this transformer include electronic equipment power supplies, industrial automation, HVAC systems, laboratory instrumentation, and water treatment control systems where durable and precise voltage conversion is essential.

Offers secondary voltages from 5 to 24 V ac for versatile applications. Primary voltage rated at 230 V ac, suitable for standard mains supplies. Provides two output windings enabling series or parallel configurations. Compact dimensions: 54 mm length, 45 mm width, and 41 mm depth for PCB mounting.

Through-hole mounting type ensures secure mechanical stability on PCBs. Dual secondary winding design enhances flexibility in output voltage and current supply. Maximum operating temperature up to 130°C for high reliability in demanding environments.

Meets international safety and quality standards including ASNZS 61558..6, CE marking, RoHS compliance, and IECBSEN certifications. Isolation voltage rated at 4 kVrms for electrical safety. Lightweight design at 400 g facilitates integration without excess weight load.

Ideal for industrial, commercial, electronic, and power supply applications requiring high-quality PCB transformers.

This RS PRO PCB transformer is a superior choice for engineers and designers looking to implement effective and efficient power conversion solutions compliant with global standards. Browse our extensive collection of Transformers and electronic components at EnvMart for more options and technical support.
