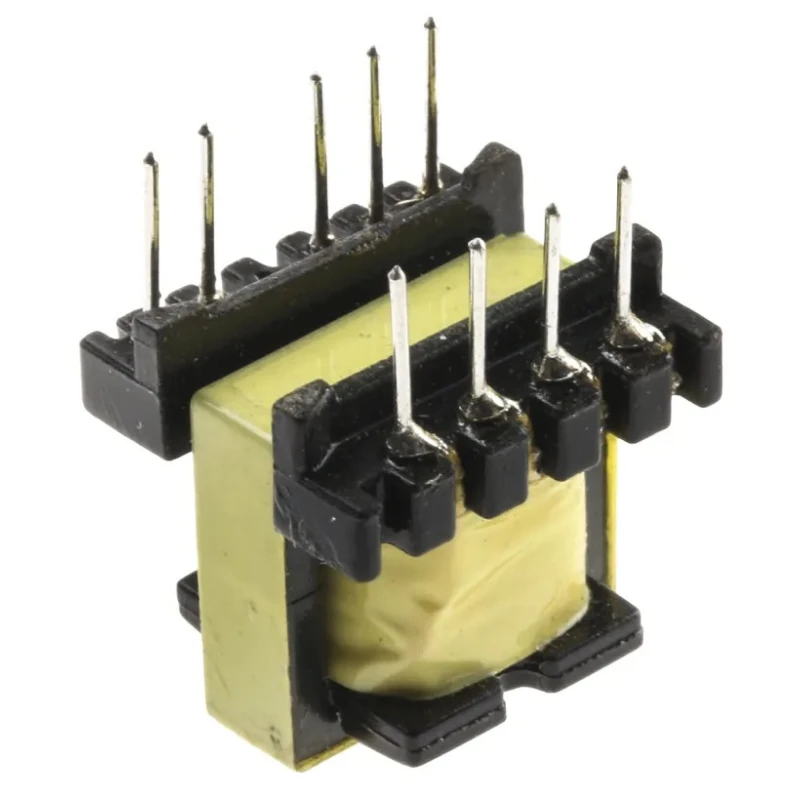

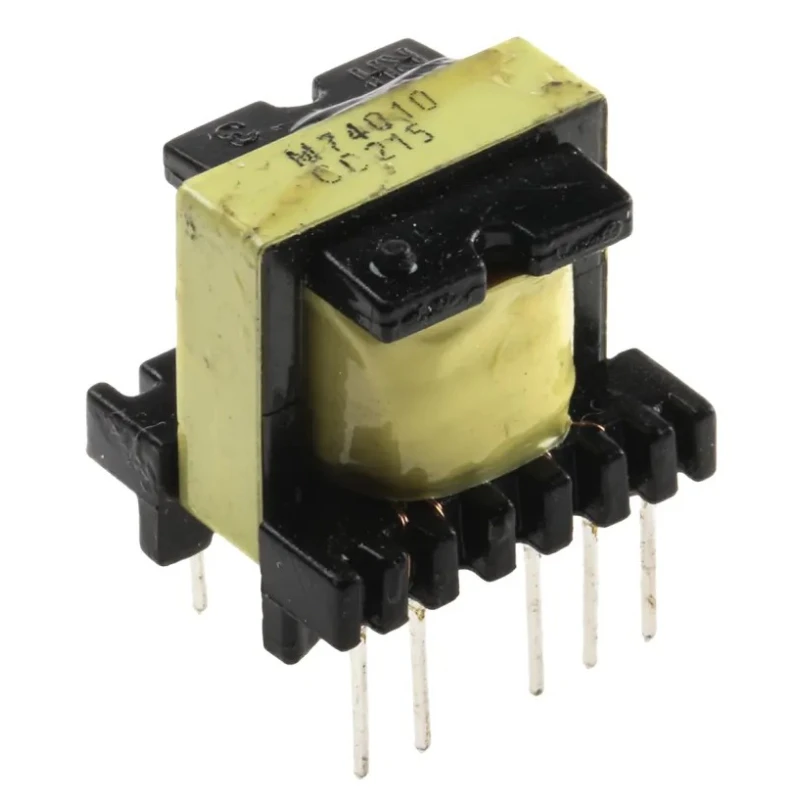

Myrra 2 Output SMPS Transformer 10W Power, 85/265 V AC Primary, 7 V & 8 to 17 V AC Secondary, 1.66 mH Inductance, Model 74010

Free Delivery in India | Lowest Global Shipping Charges

Myrra 2 Output SMPS Transformer 10W Power, 85/265 V AC Primary, 7 V & 8 to 17 V AC Secondary, 1.66 mH Inductance, Model 74010

Name: Myrra 2 Output SMPS Transformer 10W Power, 85/265 V AC Primary, 7 V & 8 to 17 V AC Secondary, 1.66 mH Inductance, Model 74010
Brand: Myrra
SKU: 184443
Price: 8.89 USD
Availability: InStock



Category Transformers Brand Myrra Condition New

Specifications

Country of Origin	France
Brand	Myrra
Power	10W
Length	18mm
Model	74010
Depth	16mm
Width	17.5mm
Mount Type	Through Hole
Termination Type	Pin
Maximum Operating Temperature	50°C
Secondary current	2A
Number of outputs	2
Inductance	1.66mH
Standards/Approvals	RoHS
Primary Voltage	85/265 V ac
Secondary Voltage	7 V, 8 to 17 V ac
Maximum Operating Frequency	70kHz

Key Features

Designed as a through-hole mount transformer for PCB using pin termination.
Features an inductance of 1.66 mH for stable current flow.
Supports maximum operating temperature up to 50°C for reliable performance.
Complies with RoHS standards ensuring environmental safety.
Compact dimensions with 18 mm length, 17.5 mm width, and 16 mm depth.
Operates at a maximum frequency of 70 kHz suitable for switch mode power supplies.
Secondary current rating of 2A supports efficient power output.

Product Description

Myrra 74010 is a high-quality 2 Output SMPS Transformer delivering 10W power with a flexible input voltage range of 85 to 265 V AC and dual secondary outputs of 7 V and 8 to 17 V AC. This power supply transformer is designed for use in switch mode power supplies where size, efficiency, and reliability are critical.

The transformer uses a through-hole mount construction with pin termination, facilitating easy PCB mounting and soldering. The inductance of 1.66 mH ensures smooth operation by reducing noise and maintaining current stability. It is designed to operate safely up to a temperature of 50°C, ensuring long-term durability in demanding industrial and electronic environments.

With compact dimensions measuring 18 mm length, 17.5 mm width, and 16 mm depth, the transformer fits well in space-constrained applications. It supports a maximum operating frequency of 70 kHz, making it ideal for modern power supply circuits.

The transformer meets RoHS compliance, guaranteeing environmentally safe manufacturing and materials. The two secondary outputs can be connected either in series or parallel to meet specific voltage and current requirements, increasing its versatility in power supply design.

Through-hole mount type with pin termination for PCB installation. Inductance of 1.66 mH for stable electrical characteristics. Rated for 10W output power with 2A maximum secondary current. Compact size optimized for switch mode power supplies (SMPS).

RoHS compliant construction for environmental safety. Maximum operating frequency of 70 kHz suitable for high-frequency circuits. Dual secondary voltages allow flexible wiring configurations.

This SMPS transformer is suitable for electronic components manufacturing, power supply design, industrial electronics, and laboratory equipment where reliable power conversion is required. It supports various applications including consumer electronics, industrial controls, and communications devices.
