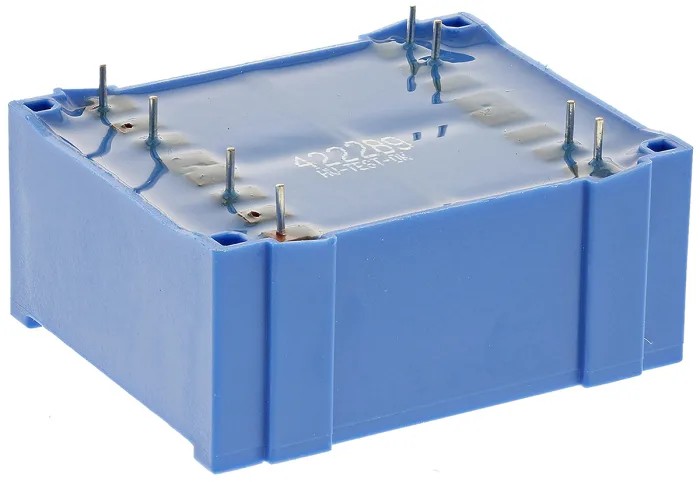

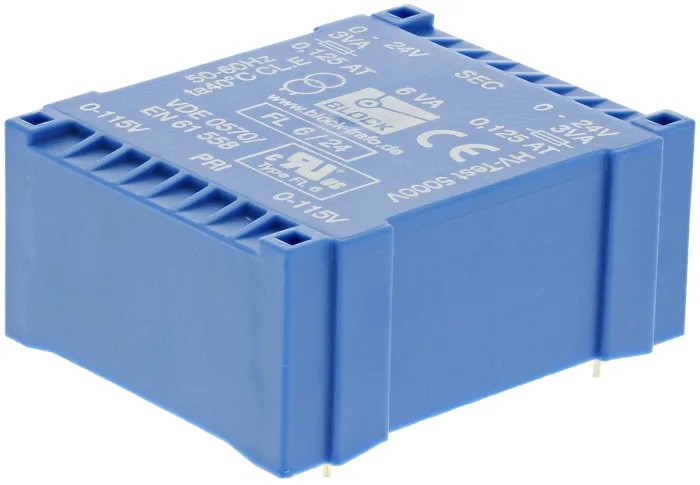

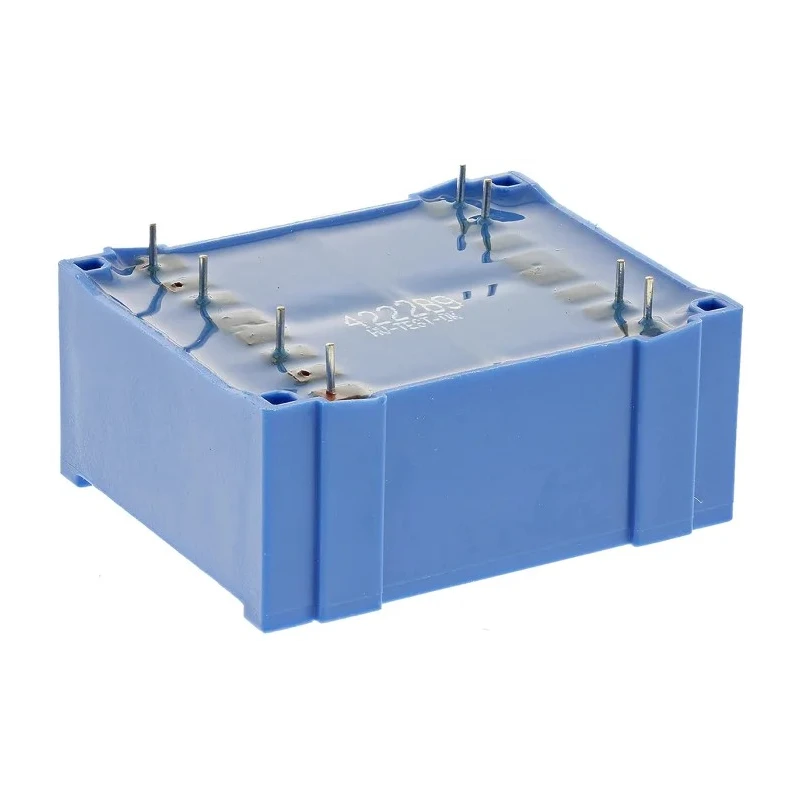

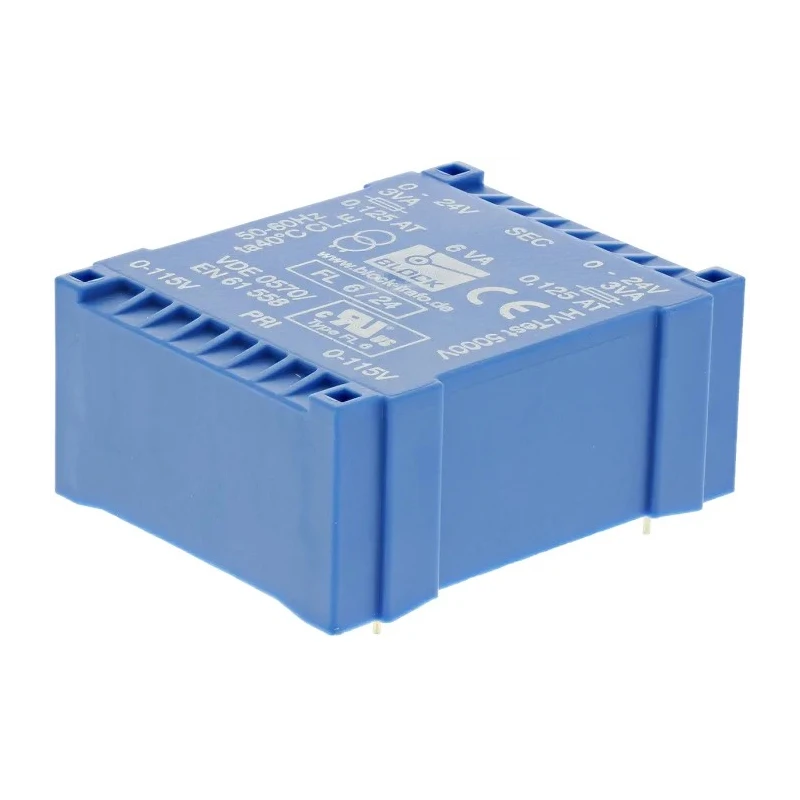

Block PCB Transformer 24 V AC Dual Primary Dual Secondary 6 VA Through Hole FL 6/24

Block FL 6/24 PCB Transformer is a high-quality through hole mounted transformer designed for printed circuit board applications. It operates at primary voltages of 115 V or 230 V AC and delivers a dual secondary output of 24 V AC with 6 VA power rating. The transformer features dual primary and dual secondary windings, allowing versatile series or parallel connection options depending on the application requirements.

The compact dimensions of 53 mm length, 22.6 mm width, and 44 mm depth, combined with a low profile design, make it suitable for compact PCB layouts. It incorporates vacuum epoxy resin moulding compliant with UL94-V0 flammability standards, ensuring superior electrical insulation and safety. The glass fibre reinforced polyamide bobbins provide durability and stability, along with low inter-winding capacitance to minimize noise and interference.

Rated for a maximum operating temperature of 40°C, this transformer operates efficiently with a 69% efficiency rating and a frequency range of 50 to 60 Hz. It is fully tested through electrical and flash testing to guarantee reliability. The transformer meets recognized safety standards including UL, VDE, EN60742, VDE 0551, and IEC 61558, making it suitable for industrial equipment, electronic devices, power supplies, and construction applications where reliable voltage transformation is critical.

Weighing 175 grams, it is easy to mount securely on PCBs through its through hole mounting style, featuring extra fixing holes for enhanced board stability. The transformer supports primary voltages of 115 V and 230 V AC.

Features dual primary and dual secondary windings for flexible connections. Compact size and low profile form factor for space-saving PCB mounting. Vacuum epoxy resin moulded to UL94-V0 standard ensuring electrical safety.

Constructed with glass fibre reinforced polyamide bobbins for durability. Maximum operating temperature rated at 40°C. Complies with UL, VDE, EN60742, VDE 0551, and IEC 61558 standards.
