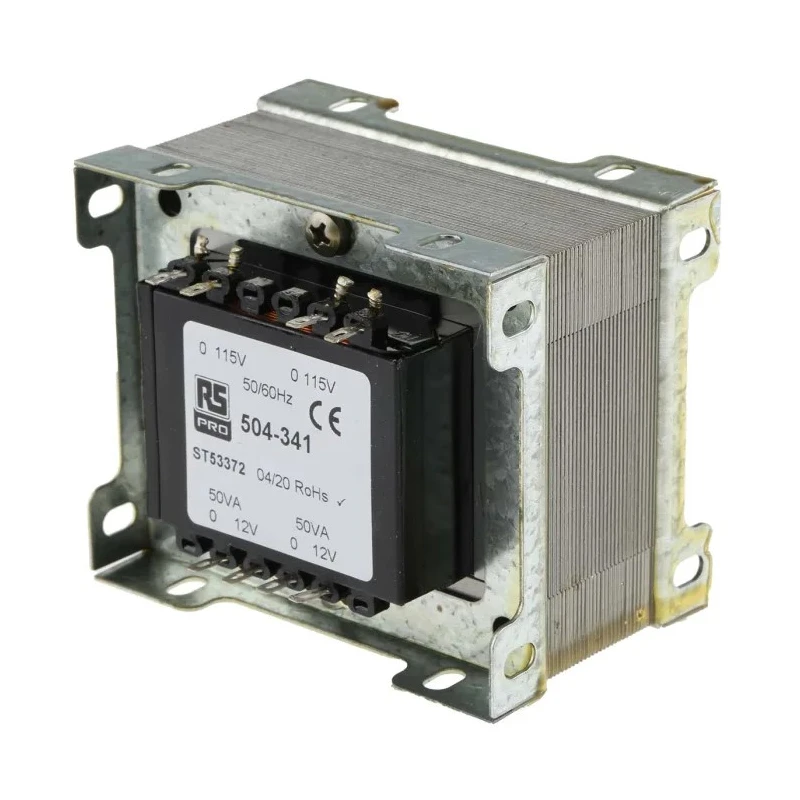

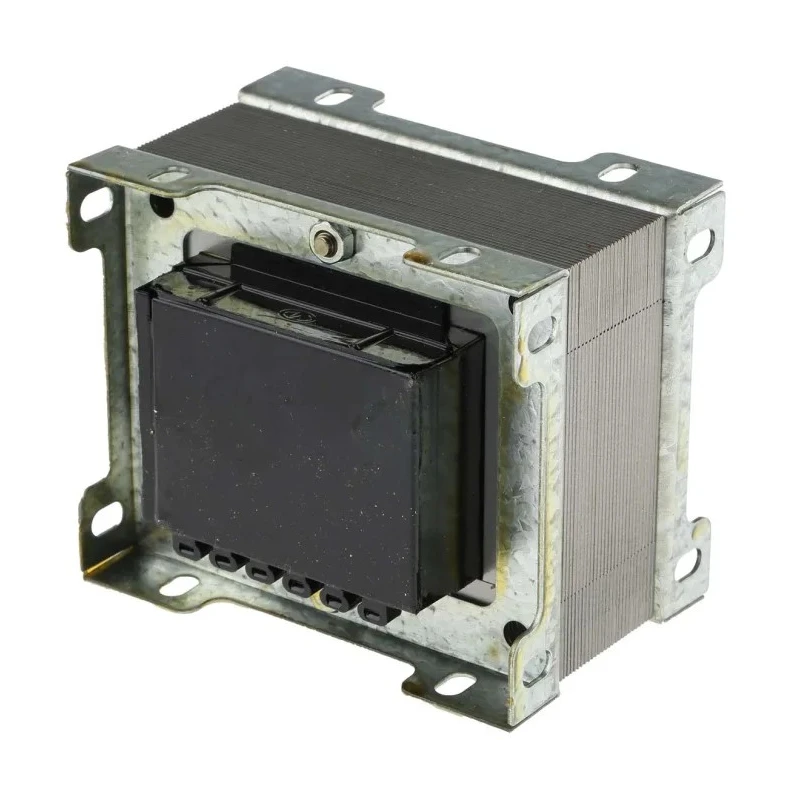

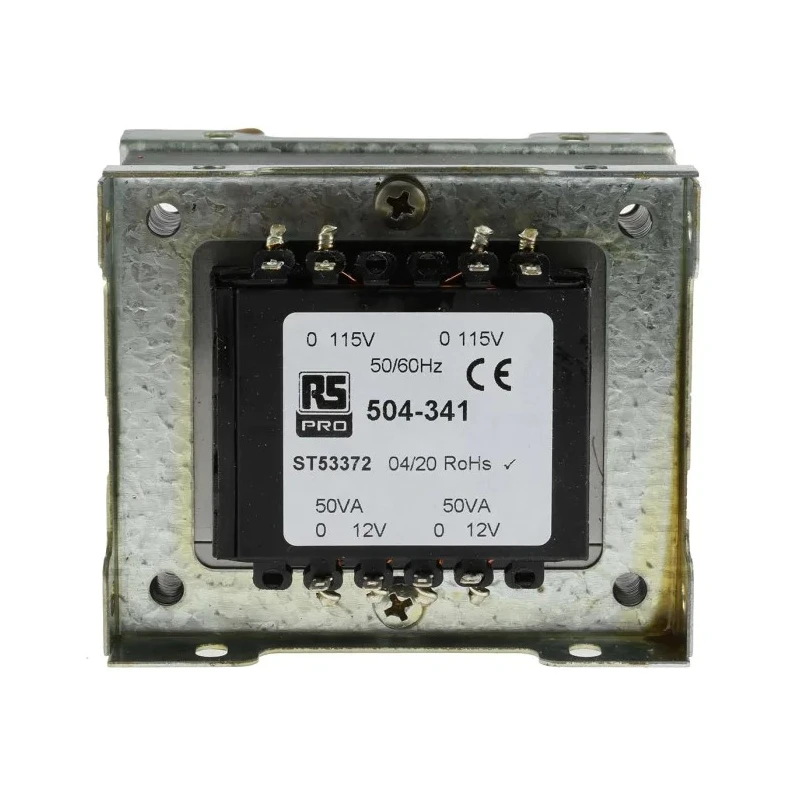

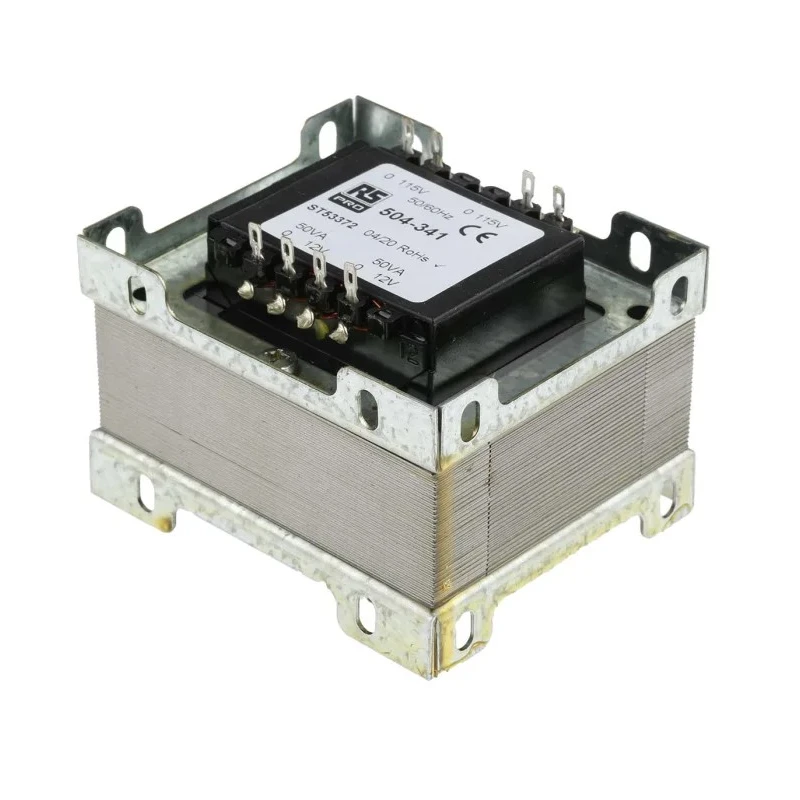

RS PRO 2 Output 100 VA Chassis Mount Transformer, 2 x 12 V AC, IEC/BS/EN 61558-2-6 Certified 504-341

RS PRO model 504-341 is a chassis mount transformer delivering 100 VA of power with two separate secondary outputs at 12 V AC each, powered by a dual 115 V AC primary winding. Designed for optimal electrical isolation and control, this transformer meets stringent IEC/BS/EN 61558-2-6, CE, RoHS, and AS/NZS 61558.2.6 safety standards.

The transformer features a durable chassis mount frame with double section bobbin construction fully shrouded and a full varnish impregnation for enhanced insulation and reliability. Dimensions of 89 mm in length, 75 mm in depth, and 68 mm in width, combined with a weight of 1.6 kg, make it robust for industrial mounting.

Engineered for a wide range of operating temperatures from -30°C to 70°C and frequencies between 50 Hz and 60 Hz, this product delivers high efficiency with low regulation, ideal for electromagnetic applications, electrical control systems, relays, pumps, speed changers, and heating elements.

Both the primary and secondary windings are optimized to provide flexibility; the primary can be connected in series or parallel for 115 or 230 V operation, while the two secondary windings can be used in series or parallel to deliver varied voltage and current output options.

2 x 12 V AC secondary outputs provide versatile voltage options. 2 x 115 V AC primary winding supports 115/230 V mains operation. Robust chassis mounting with multi-hole fixing assures secure installation. Electrically and flash tested for full compliance with industry standards.

Compact design suits numerous industrial and laboratory power requirements.

This RS PRO Chassis Mount Transformer is manufactured in Poland, ensuring high build quality and precision. Its compliance with multiple international standards makes it suitable for a broad spectrum of industrial applications.
