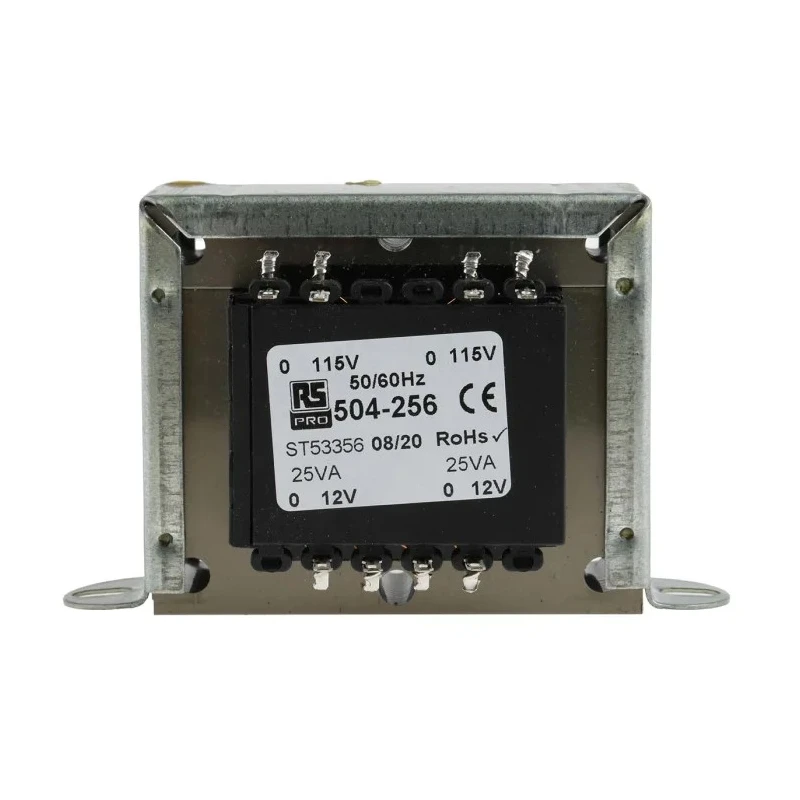

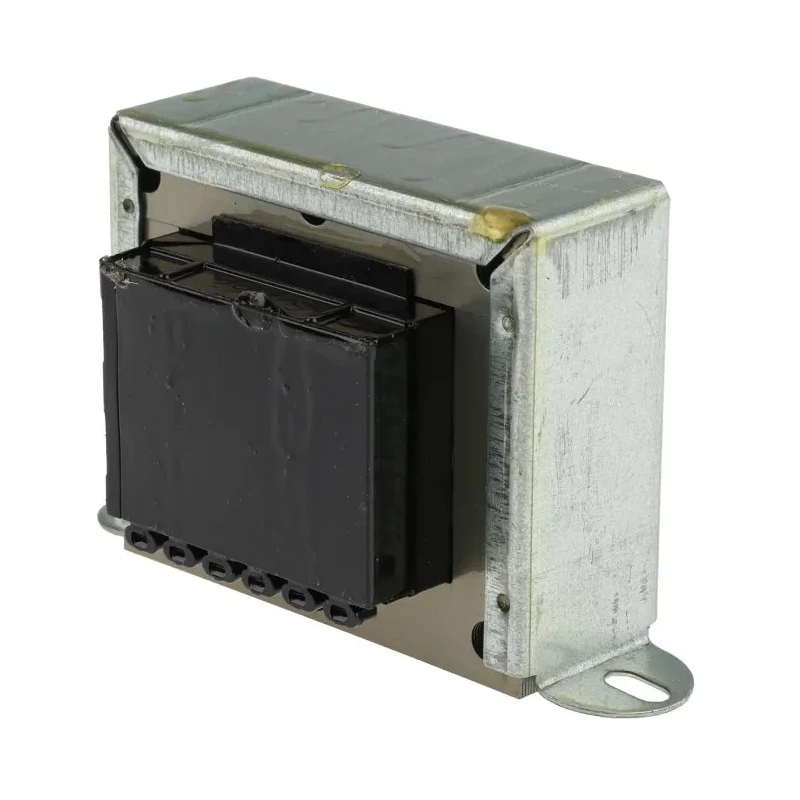

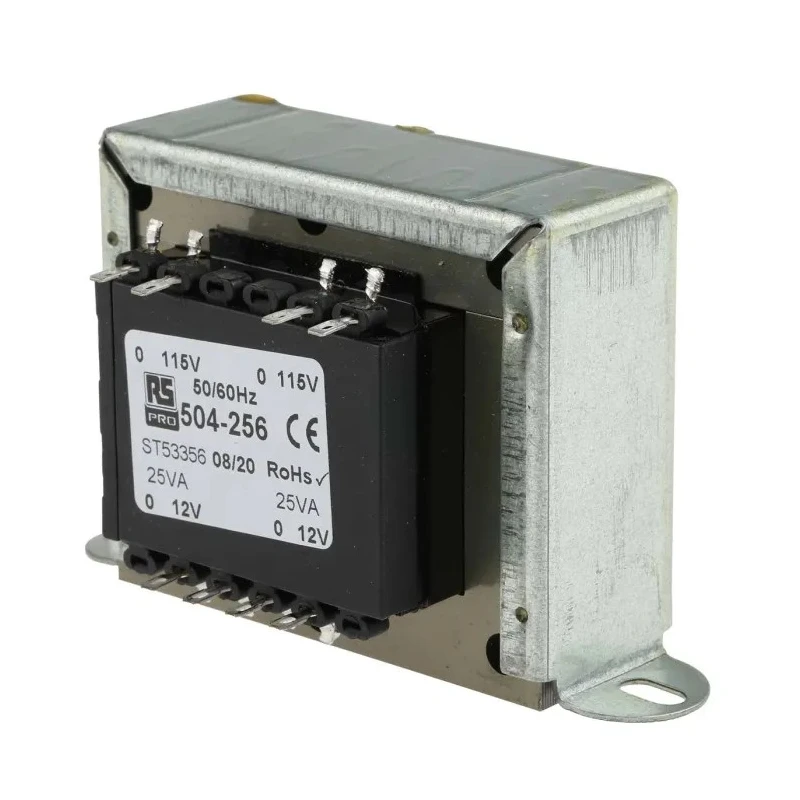

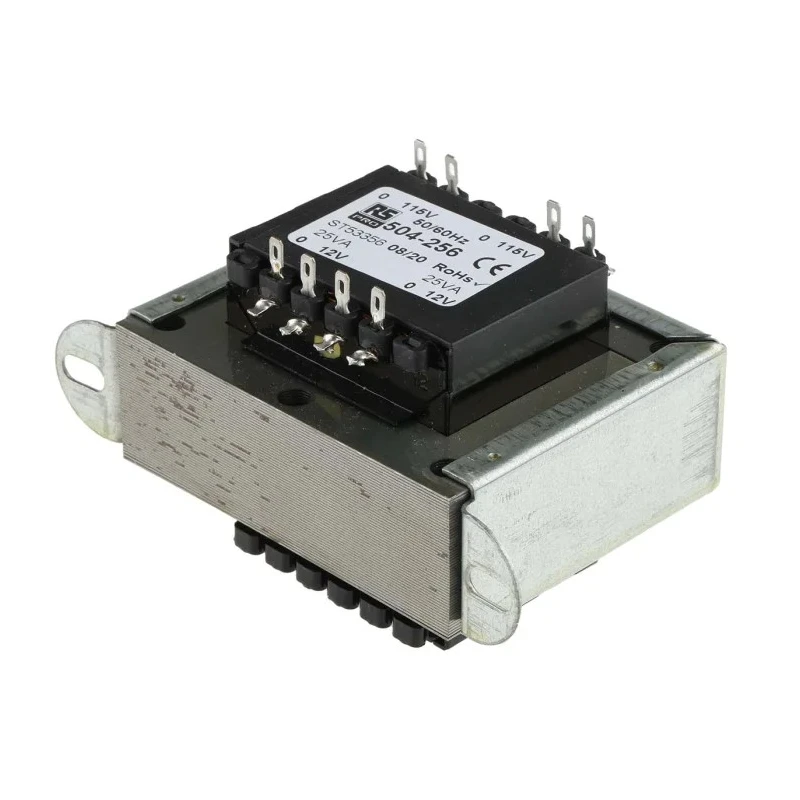

RS PRO 2 Output 50 VA Chassis Mount Transformer, 2 x 115 V ac Primary, 12 V ac Secondary, IECBSEN 615586, RoHS 504-256

RS PRO 504-256 is a high-quality 50 VA chassis mount transformer featuring 2 output windings and a 12 V ac secondary voltage designed for various industrial and electronic applications. It offers a primary voltage of 2 x 115 V ac, allowing connection versatility for both 115 V and 230 V mains power usage.

The transformer uses double-section bobbin construction fully shrouded with full varnish impregnation, providing excellent insulation and durability. It is mounted on chassis with two-hole wrap-over clamps, ensuring secure installation in devices and control panels.

This RS PRO chassis mount transformer is 100% electrical and flash tested to meet BS3535 and EN 60742 standards, guaranteeing outstanding performance and safety. It complies with several international standards including IECBSEN 615586, RoHS, IECBSEN 615581, CE, and ASNZS 61558.1, reflecting its quality and regulatory conformity.

The transformer features a compact design with dimensions of 79 mm length, 62 mm width, and 37.65 mm depth, and weighs 210 g, making it suitable for installations where space and weight are constraints. It operates efficiently over a temperature range from -30°C up to 130°C, suitable for most industrial and electronic environments.

Typical use cases for this transformer include electromagnetic apparatus, electronic and electrical control systems, relays, pumps, speed changers, and heating elements. Its design allows the secondary outputs to be connected in series or parallel, providing flexibility of output voltages and currents for diverse applications.

Features a primary voltage of 2 x 115 V ac for flexible connection options. Double-section bobbin fully shrouded for enhanced insulation. Two-hole wrap-over clamps ensure secure chassis mounting. High efficiency with low regulation design.

Tested to BS3535 and EN 60742 standards for electrical safety. Wide operating temperature range of -30°C to 130°C. Compact and lightweight with dimensions 79x62x37.65 mm and weight 210 g. Complies with IECBSEN 615586, RoHS, IECBSEN 615581, CE, ASNZS 61558.1 standards.

Suitable for electromagnetic, relay, pump, speed changer, and heating element applications.

Choose RS PRO for reliable Chassis Mount Transformers that meet global quality and safety standards, ideal for industrial, manufacturing, laboratory, and commercial electronic systems.
