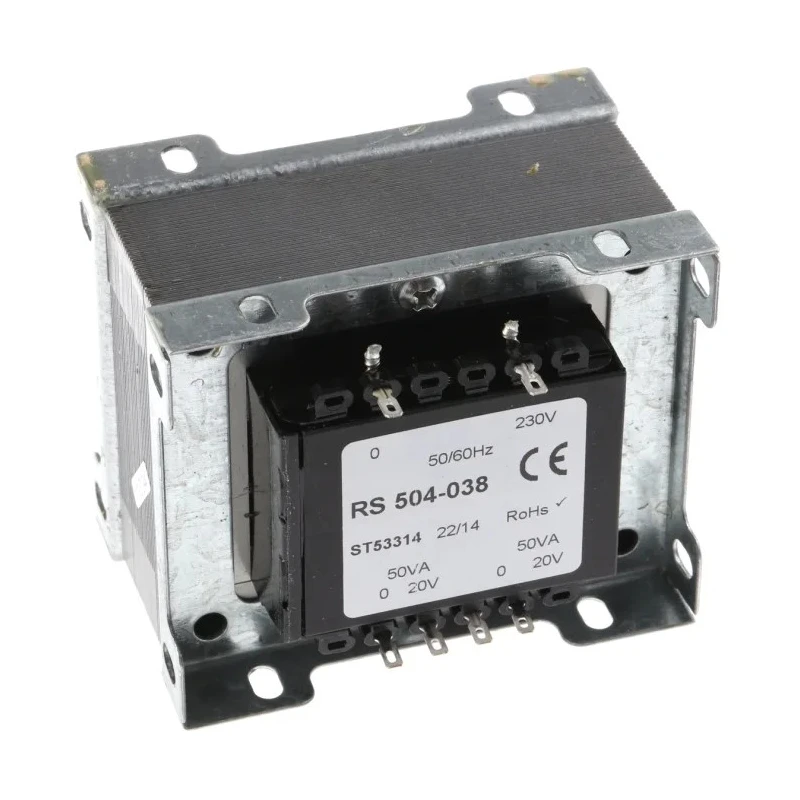

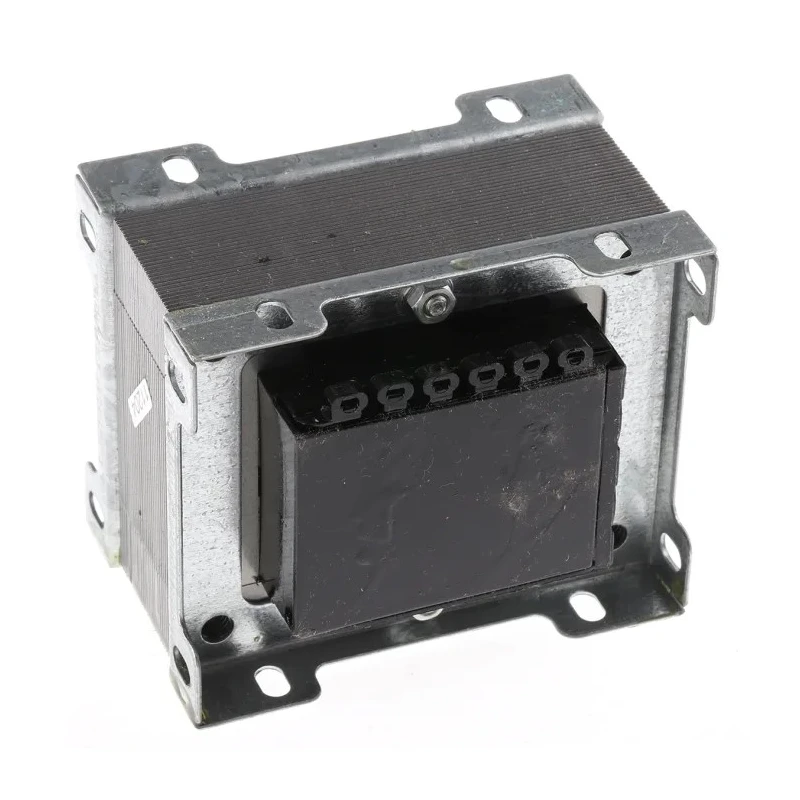

RS PRO 2 Output 100 VA Chassis Mount Transformer, 230 V ac Primary, 20 V ac Secondary, IEC 61558-2-6 504-038

RS PRO 504-038 is a high-quality chassis mount transformer designed for electrical and electronic applications requiring reliable power transformation. It features a primary voltage of 230 V ac and two secondary outputs delivering 20 V ac, offering a nominal power capacity of 100 VA. The transformer complies with the IEC 61558-2-6 standard, ensuring adherence to international safety and performance requirements.

Engineered to operate in temperatures ranging from -30°C to a maximum of 70°C, it is suitable for various industrial, commercial, and electrical distribution environments. Operating frequency is maintained between 50 Hz and 60 Hz, accommodating diverse input power sources.

The chassis mount frame supports power ratings from 75 VA up to 200 VA, with optional terminal shrouds available for enhanced safety and convenience specifically for 75 VA and 100 VA models. The transformer's dual independent secondary windings can be configured in series or parallel connections, providing flexibility in output voltage and current requirements.

With compact dimensions measuring 89 mm in length, 68 mm in width, and 75 mm in depth, the transformer is optimized for efficient space utilization. Weighing 1.6 kg, it balances robustness with easy installation.

The transformer supports a maximum operating temperature of 70°C and minimum of -30°C. It operates at a frequency from 50 Hz to 60 Hz. Two independent secondary windings allow series or parallel output connections. Compact chassis mounting with dimensions 89x68x75 mm.

Power rating of 100 VA with primary 230 V ac and secondary 20 V ac outputs. Complies with IEC 61558-2-6 international standards. Manufactured in Poland ensuring quality and reliability.

This RS PRO Chassis Mount Transformer is ideal for use in power supplies, industrial equipment, electronic devices, and other applications requiring stable voltage transformation and regulation.
