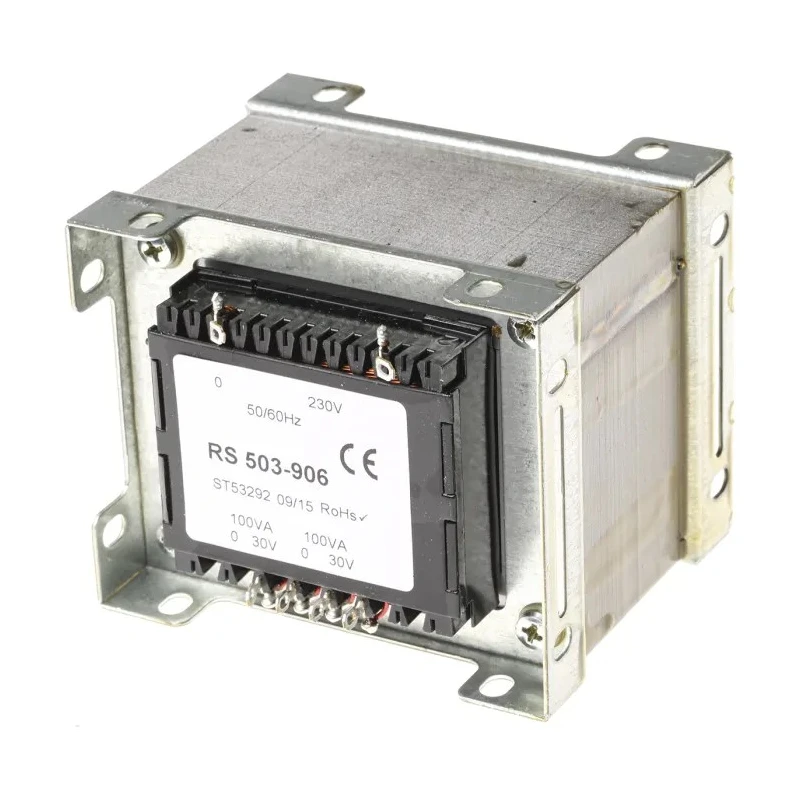

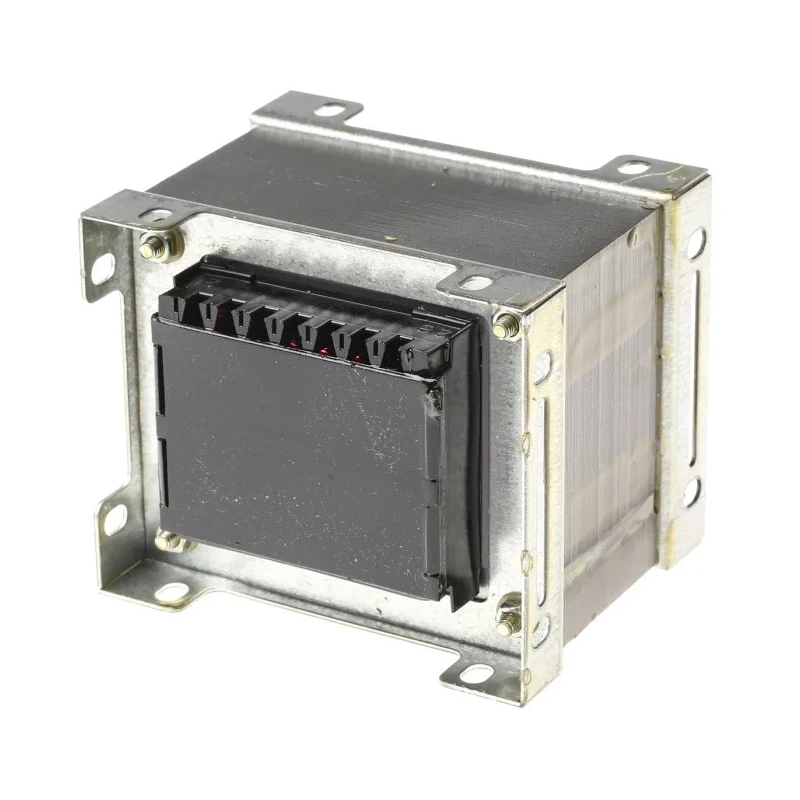

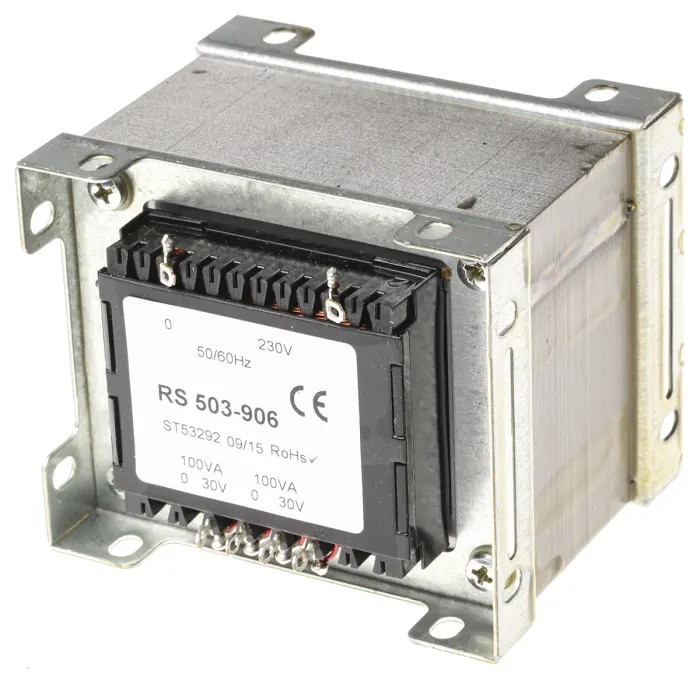

RS PRO 2 Output 200 VA Chassis Mount Transformer 230 V ac Primary, 30 V ac Secondary, 2 Outputs 503-906

RS PRO 503-906 chassis mount transformer is a robust and reliable power transformer designed for industrial and commercial applications requiring 200 VA power with two secondary outputs.

The primary voltage rating is 230 V ac, with secondary voltage at 30 V ac, providing versatile power delivery options. The two independent secondary windings can be connected either in parallel or series to adjust output voltage and current as needed.

Its chassis mount frame ensures secure and easy installation in various equipment and control panels. Measuring 100 mm in length, 92 mm in width, and 65.82 mm in depth, this transformer fits compact spaces without sacrificing performance.

Operating temperature ranges from -30°C to 70°C, demonstrating high reliability under a broad range of environmental conditions. The unit meets stringent safety and quality standards including ASNZS 61558..4, CE, IECBSEN 615586, IECBSEN 615584, IECBSEN 615581, ASNZS 61558..6, ASNZS 61558.1, and RoHS compliance, ensuring safe and environmentally responsible use.

With a gross weight of 2.8 kg, it is suitable for durable applications needing stable voltage transformation at 50 Hz or 60 Hz frequencies. Primary voltage rating of 230 V ac suitable for industrial power supply applications.

Two independent secondary outputs which can be connected in series or parallel for versatile voltage configurations. Operating temperature range from -30°C to 70°C ensures reliable performance in varying environments. Complies with multiple safety and quality standards including ASNZS 61558..4, CE, IECBSEN 615586, and RoHS.

Compact chassis mount design with dimensions 100 mm length, 92 mm width, and 65.82 mm depth allowing easy installation. Robust build with a gross weight of 2.8 kg for durable industrial use. Maximum operating frequency supports both 50 Hz and 60 Hz supply systems.

This transformer is ideal for industrial power distribution, manufacturing machinery, control systems, and other commercial electrical applications requiring reliable low-voltage power supply. Choose RS PRO for quality and safety in Chassis Mount Transformers.
