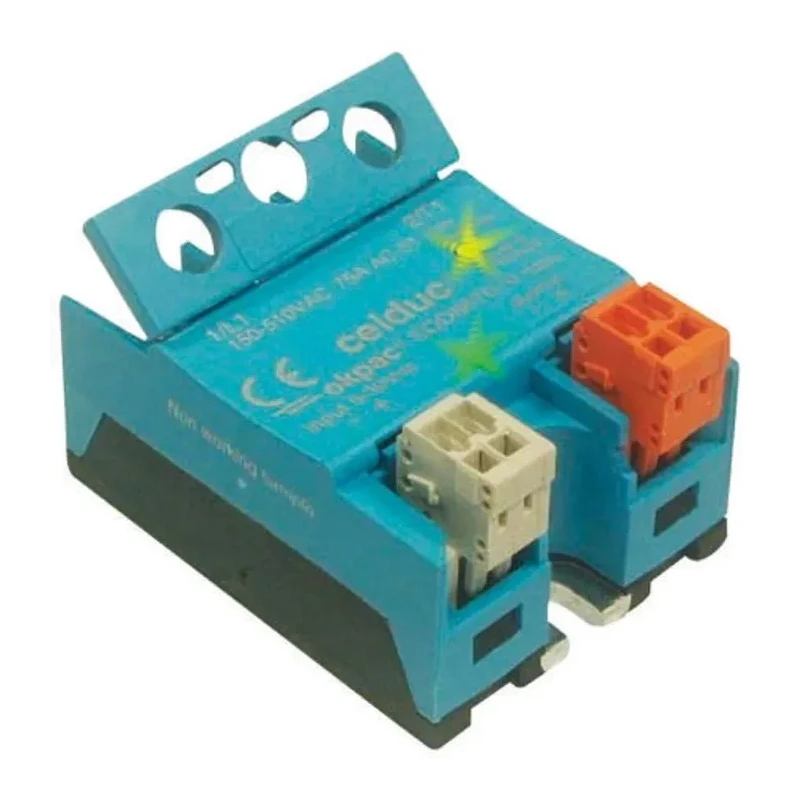

Celduc Solid State Relay 50 A Load, 275 V Load, 30 V Control, DIN Rail Mount SOD845180
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 30mm |
| Length | 59.4mm |
| Model | SOD845180 |
| IP Rating | IP20 |
| Width | 44.8mm |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | SOD |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | VDE, UKCA, RoHS, EAC, cURus, CSA, CE |
| Maximum Load Voltage | 275V |
| Minimum Load Voltage | 50V ac |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 30V |
| Off State Leakage Current | 1mA |
| On State Resistance | 16mΩ |
Key Features
- Operates with a control voltage range of 7 to 30 V DC.
- Features low on state resistance of 16 milliohms for efficient power handling.
- Incorporates zero-cross switching function for reduced electrical noise.
- Equipped with screw terminal type and IP20 rating for secure connections and dust protection.
- Operates reliably within a temperature range from -55°C to 100°C.
- Provides diagnostic outputs including charge, network, and relay output diagnostics.
- Designed with TMS2 technology thyristor output ensuring long device longevity.
- Compact dimensions of 59.4 mm length, 44.8 mm width, and 30 mm height.
Product Description
Celduc SOD845180 Solid State Relay is a high-performance relay designed for industrial and electrical automation applications. It supports a maximum load current of 50 A and a load voltage up to 275 V, making it suitable for robust electrical switching tasks. The device mounts easily on DIN rails, facilitating neat and efficient panel installations.
It operates with a control voltage range from 7 to 30 V DC, illuminated by a green LED indicator to confirm operational status. Featuring TMS2 technology, the relay uses a thyristor output for enhanced durability and long service life. The design includes diagnostic outputs for charge, network, and relay states, providing advanced monitoring capabilities.
The zero cross switching functionality helps reduce electrical noise and prolong relay life. The relay terminals are screw-type with an IP20 rating offering basic dust protection suitable for most industrial environments. The compact form factor with dimensions of 59.4 mm long, 44.8 mm wide, and 30 mm height makes it ideal for space-constrained control panels.
Operating temperature spans a wide range from -55°C to 100°C, ensuring reliability in diverse climatic conditions. The relay complies with multiple international standards such as VDE, UKCA, RoHS, EAC, cURus, CSA, and CE, underlining its quality and safety compliance. It is manufactured in France, ensuring premium build quality.
Applications include use in industrial automation systems, electrical control systems, and signal conditioning tasks where robust and reliable solid state relays are critical. The product offers a low off-state leakage current of 1 mA and low on state resistance of 16 milliohms for efficient operation.
Operates at a maximum load current of 50 A. Supports load voltages from 50 V AC to 275 V AC. Control input voltage range is 7 to 30 V DC. Screw terminal type ensures secure wiring connections. IP20 protection suitable for indoor industrial environments.
Compact DIN rail mount design for streamlined panel integration. Equipped with diagnostic outputs for proactive system monitoring. Wide operating temperature range of -55°C to 100°C for reliability. Complies with multiple international safety and quality certifications.
Manufactured in France ensuring high quality standards. Explore more quality Solid State Relays and electrical automation products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This solid state relay can handle a maximum load current of 50 A.
The control voltage range for this model is from 7 to 30 V DC.
It supports a maximum load voltage of 275 V.
This relay is designed for DIN rail mounting, facilitating easy installation in control panels.
The on state resistance is 16 milliohms, which helps in efficient power handling.
The IP rating of this model is IP20, providing basic dust protection suitable for indoor use.
The dimensions are 59.4 mm in length, 44.8 mm in width, and 30 mm in height.
It operates reliably within a temperature range from -55°C to 100°C.
Yes, it incorporates zero cross switching functionality to reduce electrical noise.
It is equipped with screw terminals for secure wiring connections.
This model includes diagnostic outputs for charge, network, and relay output diagnostics.
It complies with multiple international standards including VDE, UKCA, RoHS, EAC, cURus, CSA, and CE.
