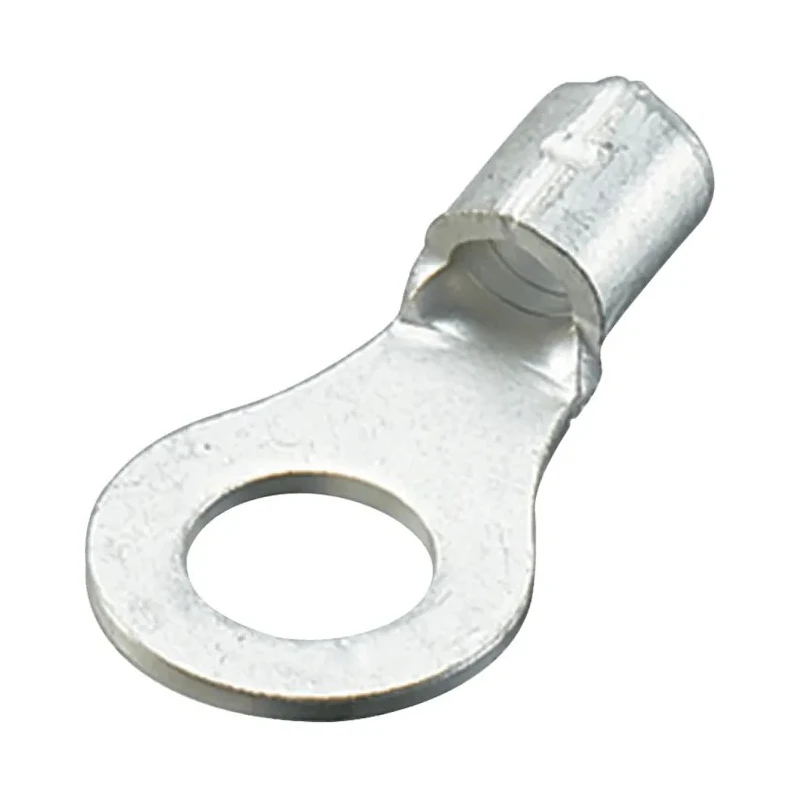

Nichifu Uninsulated Ring Terminal, M3 Stud Size, 22 AWG to 16 AWG Wire Size, Grey HC R1.25-3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Nichifu |
| Colour | Grey |
| THICKNESS | 0.03in |
| Model | HC R1.25-3 |
| Insulation | Uninsulated |
| Overall Length | 0.472in |
| Contact Material | Copper |
| Series | R1.25 |
| Standards/Approvals | UL, CSA, JIS |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 0.216in |
| Stud Size | M3 |
Key Features
- The terminal features a copper contact material for reliable conductivity.
- It is uninsulated, suitable for applications requiring bare crimp terminals.
- Outer ring diameter measures 0.216 inches ensuring proper fit.
- Overall length is 0.472 inches facilitating compact connections.
- Terminal thickness is 0.03 inches providing robust mechanical strength.
- Compliant with UL, CSA, and JIS standards for quality assurance.
- Supports maximum wire size of 1.65 mm² and minimum wire size of 0.25 mm².
- Grey color coding for easy identification in wiring assemblies.
Product Description
Nichifu HC R1.25-3 is an uninsulated ring terminal engineered for secure wire connections utilizing M3 stud size fasteners. Designed to accommodate wire sizes ranging from 22 AWG to 16 AWG, this grey-colored terminal features a copper contact material to ensure excellent electrical conductivity and durability.
The terminal's outer ring diameter of 0.216 inches and an overall length of 0.472 inches make it ideal for compact electrical assemblies. Its thickness of 0.03 inches provides mechanical strength required in demanding industrial and electronic applications.
Certified to comply with UL, CSA, and JIS standards, the Nichifu R1.25 series assures safety and reliability in use. This bare crimp terminal suits various applications including electronic component wiring, power connectors in industrial systems, and electrical panels.
It supports wires with cross-sectional areas from 0.25 mm² to 1.65 mm², making it versatile for small to medium gauge cables. The uninsulated design allows for direct metal-to-metal contact, optimal for grounding and bonding requirements.
Features copper contact material for superior conductivity. Uninsulated terminal suitable for bare crimp connections. Compact size with 0.216 inch outer ring diameter. Meets UL, CSA, and JIS international quality standards.
Accommodates wire sizes from 22 AWG to 16 AWG safely. Robust construction with 0.03 inch thickness. Grey color plating for wire identification ease. Ideal for industrial, electronics, HVAC, and manufacturing wiring.
The Nichifu HC R1.25-3 Ring Terminal is a dependable choice for applications requiring secure, compliant, and efficient wire terminations. Customers can rely on its consistent quality and performance across various industrial and electrical engineering tasks. Explore more Nichifu connectors and terminals on EnvMart for your wiring and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes ranging from 22 AWG to 16 AWG, with a minimum wire size of 0.25 mm² and a maximum wire size of 1.65 mm².
The outer ring diameter measures 0.216 inches, and the overall length is 0.472 inches, with a thickness of 0.03 inches.
The contact material of this terminal is copper, which ensures reliable conductivity.
This terminal is uninsulated, making it suitable for applications requiring bare crimp connections.
It complies with UL, CSA, and JIS standards, ensuring quality assurance and safety in its applications.
This model is designed for use with M3 stud size fasteners.
It is suitable for various applications including electronic component wiring, power connectors in industrial systems, and electrical panels.
The grey color coding facilitates easy identification in wiring assemblies, helping to streamline installation and maintenance.
The overall thickness of this terminal is 0.03 inches, providing mechanical strength for reliable connections.
This terminal is manufactured in Japan.
Copper is used for the contact material due to its excellent electrical conductivity, which ensures efficient performance in electrical connections.
As an uninsulated terminal, it requires proper crimping techniques to ensure secure connections, particularly in applications involving direct metal-to-metal contact.
