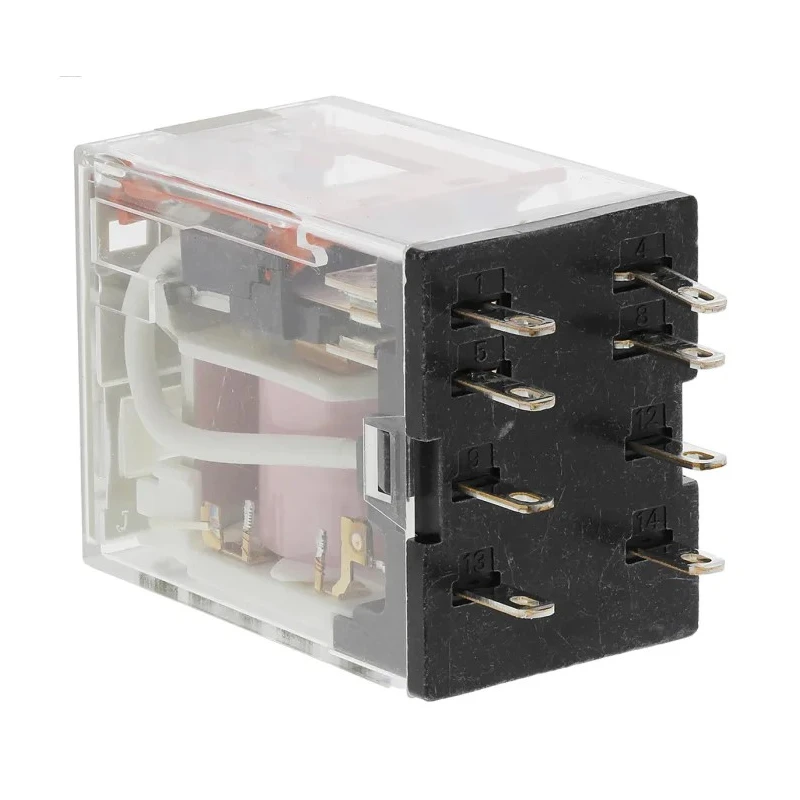

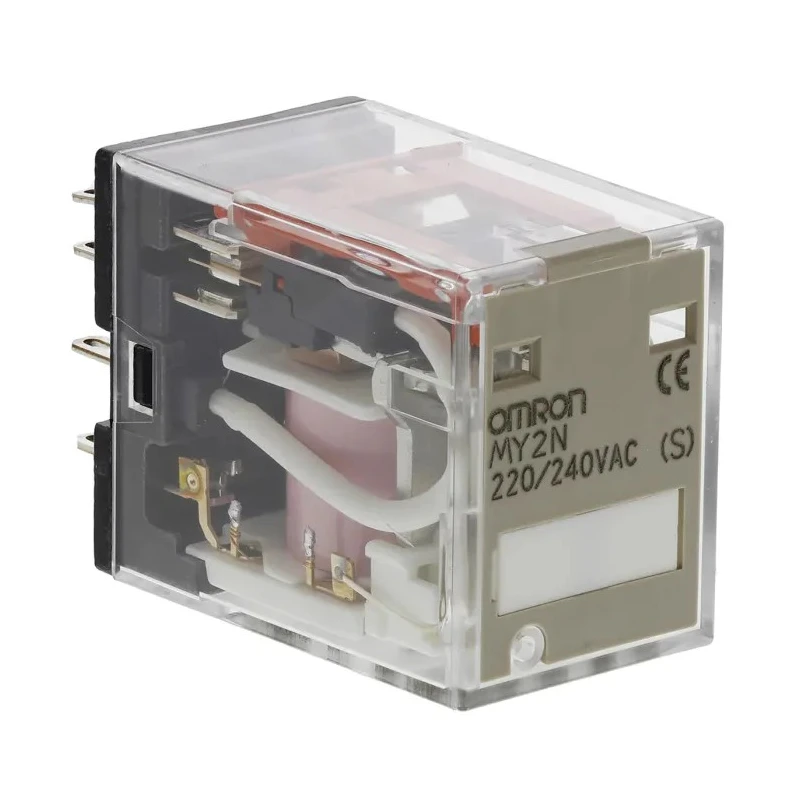

Omron DIN Rail Power Relay, 240V AC Coil, 10A Switching Current, DPDT MY2N AC220/240(S)

Omron MY2N AC220/240(S) DIN Rail Power Relay is engineered for robust electrical control applications in industrial, automation, and electrical systems. It features a coil voltage of 240V AC and a DPDT (Double Pole Double Throw) contact configuration for multipurpose switching tasks.

The relay supports a high switching current of 10A and switching voltages up to 250V AC, making it suitable for medium-power control circuits and loads. The contact material is silver alloy with gold plating, offering excellent conductivity and reduced contact wear, with resistance as low as 100 milliohms.

Designed for DIN rail mounting, this plug-in type relay has compact dimensions of 42.4mm height, 21.5mm width, and 28mm depth, facilitating space-efficient installation in panels. It offers a wide operating temperature range from -55°C to +70°C, ensuring reliable operation in harsh industrial environments.

The coil resistance of 18.8 kΩ and coil power consumption of 1.1W optimize energy use, while an isolation voltage of 2000V AC between the coil and contacts guarantees operational safety and protection against electrical noise and surge.

This Omron relay meets major international standards including CE, CSA, LR, RoHS, UL, and VDE, signifying compliance with stringent safety and performance requirements.

It is highly applicable in industrial automation, motor control, HVAC systems, manufacturing equipment, and other electrical control applications requiring dependable power relay switching.

Operates on a coil voltage of 240V AC for efficient power relay control. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Supports a maximum switching current of 10A and switching AC voltage up to 250V AC.

Durable silver alloy gold-plated contacts ensure low contact resistance and long service life. Compact DIN rail mount design with dimensions 42.4mm height, 21.5mm width, and 28mm depth. Wide operating temperature range from -55°C to +70°C suitable for diverse environments.

Plug-in terminal type allows easy installation and replacement in control panels. Coil resistance rated at 18.8 kΩ and coil power consumption of 1.1W for efficient operation. High isolation voltage of 2000V AC between coil and contacts guarantees safety and reliability.

Complies with CE, CSA, LR, RoHS, UL, and VDE standards for international safety and quality assurance.
