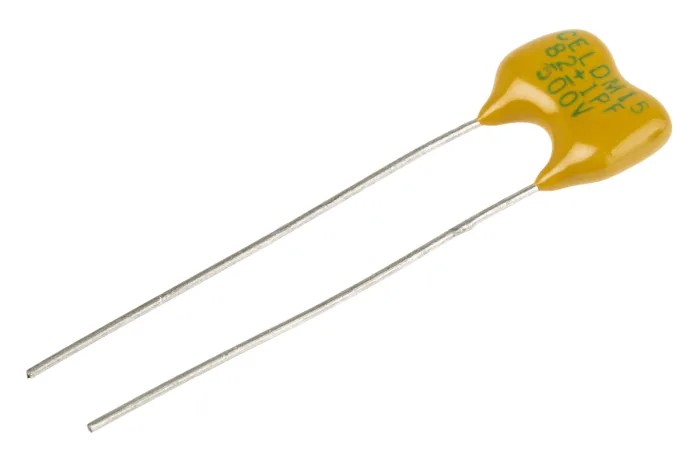

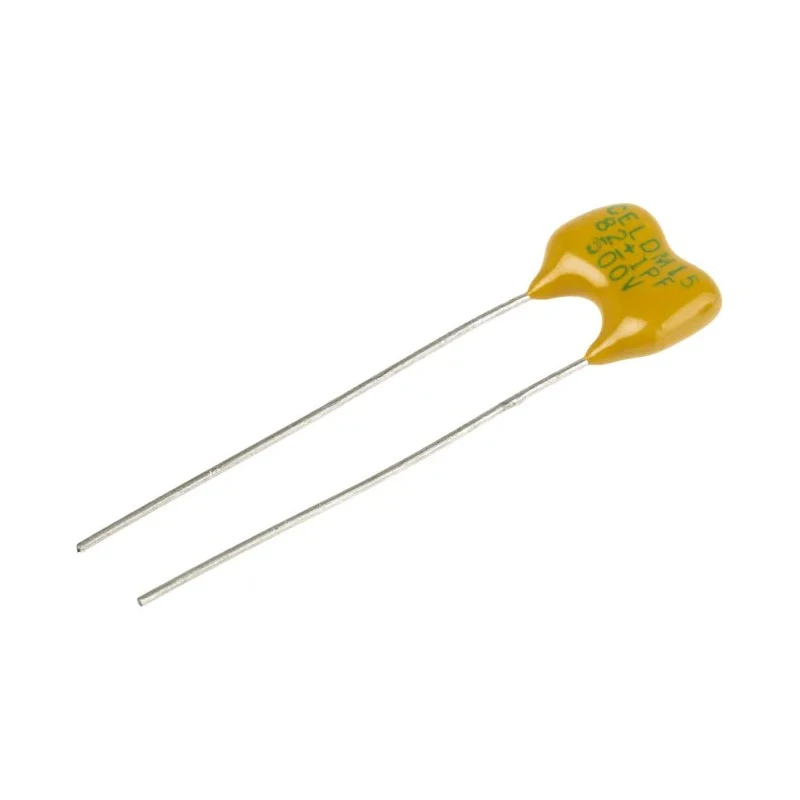

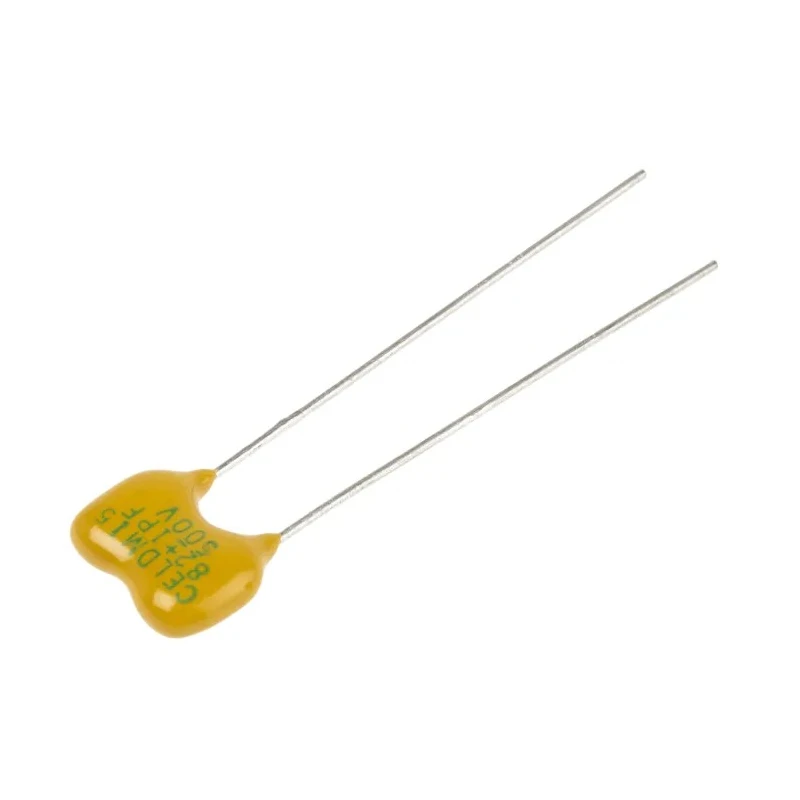

RS PRO 82 pF 500V dc Radial Mica Capacitor 1 pF Tolerance 495-739

RS PRO 495-739 is a high-quality radial mica capacitor designed to deliver precise electronic performance with an 82 pF capacitance, rated for 500V dc operation with a tight tolerance of 1 pF. Manufactured using silvered mica dielectric, this capacitor ensures high insulation resistance and long-term stability, suitable for demanding industrial, laboratory, and military applications.

This through-hole mounted component features radial leads with a pitch of 5.72 mm, measuring 11.43 mm in length, 9.14 mm in height, and 4.57 mm in width. The capacitor operates efficiently across a wide temperature range from -55°C to 150°C, supported by a flame retardant epoxy coating that protects against environmental and thermal stress.

Commonly utilized in logic and transmission circuits, pulse forming networks, delay lines, timing circuits, and DC voltage blocking circuits, this Mica Capacitor is designed to provide reliable pulse operation and RF tuning stability. Its professional radial wire-ended dipped construction makes it ideal for applications demanding high precision and endurance.

Constructed with radial lead type and through hole mount. Features silvered mica dielectric for excellent insulation and stability. Supports operating temperatures from -55°C to 150°C. Compact size with dimensions 11.43 mm length, 9.14 mm height, and 4.57 mm width.

Ideal for use in logic, transmission circuits, timing circuits, and pulse forming networks. Flame retardant epoxy coating for enhanced safety and durability. Designed for professional and military grade equipment requiring high insulation resistance.

Pin count of 2, suitable for RF tuned circuits and pulse operation applications. Explore the extensive RS PRO capacitor range to find precision components optimized for high-performance electrical and electronic engineering needs.
