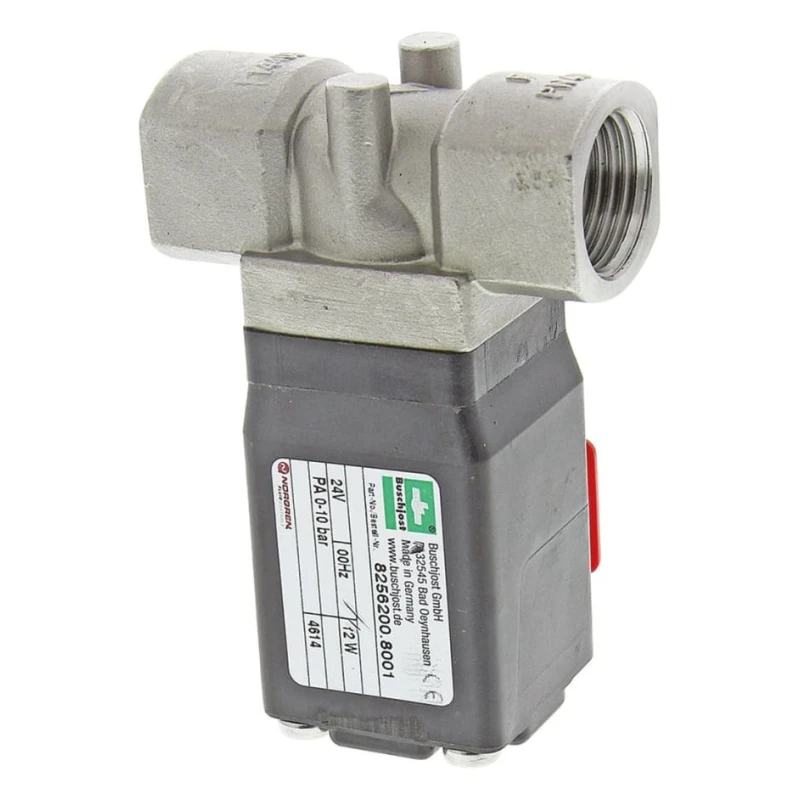

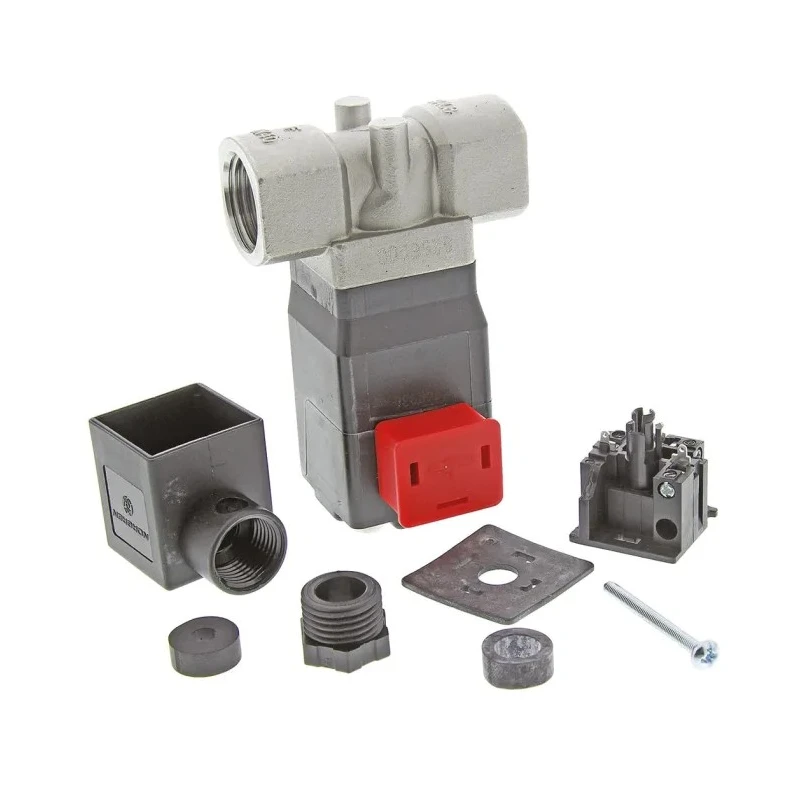

Buschjost Solenoid Valve 2 Port Normally Closed Threaded 10mm Orifice 24V dc 8256200.8001.02400

Buschjost 8256200.8001.02400 solenoid valve is a premium 2 port, normally closed (NC) valve operating at 24V dc supply voltage. It is designed for precise and reliable fluid control in demanding industrial environments.

The valve features a 10mm orifice diameter that provides a flow factor (Kv) of 1.7m³/h, allowing for efficient high flow capability. The body is constructed from high-grade 316 stainless steel along with PA66 materials, ensuring excellent corrosion resistance and durability for liquid and vacuum applications.

This solenoid valve has a maximum operating pressure of 10 bar and can operate safely within a temperature range from -10°C to 50°C. Its membrane valve design enables it to handle partially aggressive gaseous and liquid fluids with a fixed flow direction, operating reliably without a minimum pressure differential.

Equipped with advanced servo assist and forced lift electromagnetic operation, the valve guarantees dependable opening and closing performance. The compact solenoid includes an integrated core tube, and the unit is fitted with threaded inlet and outlet connections for easy installation.

It complies with several international standards including EN 61000-6-1, EN 61000-6-3, EN 60529 (IP65 rated), DIN VDE 0580, and DIN EN 175301-803. Additionally, it carries hazardous area certification x II 2 GD EEx me II T3, making it suitable for use in potentially explosive environments.

Manufactured in Germany, this Buschjost solenoid valve is designed for industrial, laboratory, manufacturing, HVAC, and water treatment applications, where dependable fluid control solutions are critical.

The valve features a 10mm orifice diameter ensuring high flow performance. Constructed with a robust 316 stainless steel body and PA66 components for durability. Maximum operating pressure of 10 bar suitable for various industrial applications.

Designed to operate within temperature ranges from -10°C to 50°C. Equipped with servo assist and forced lift electromagnetic operation for reliable switching. Complies with multiple standards including EN 61000-6-1 and IP65 rated for protection.

Compact threaded inlet and outlet connections for easy integration. Ideal for liquid and vacuum applications with membrane valve design. Certified for hazardous areas with x II 2 GD EEx me II T3 classification. Manufactured in Germany ensuring high quality and performance.
