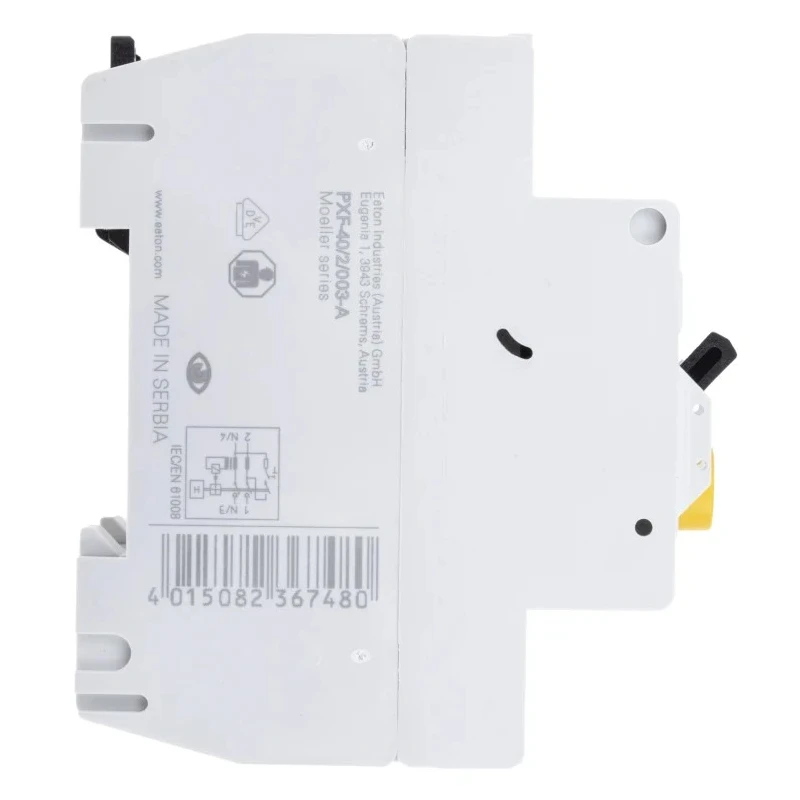

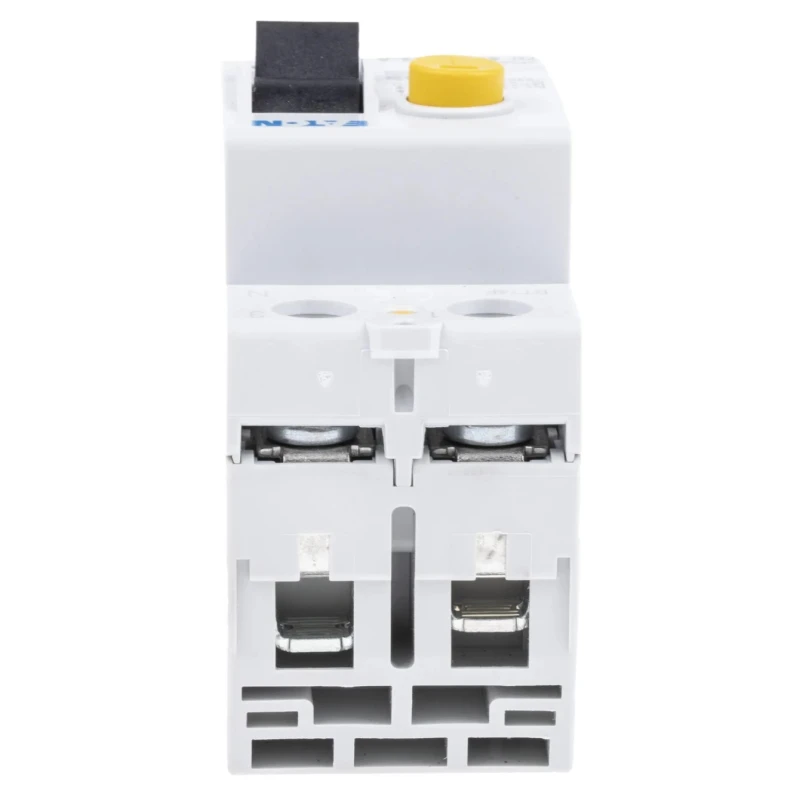

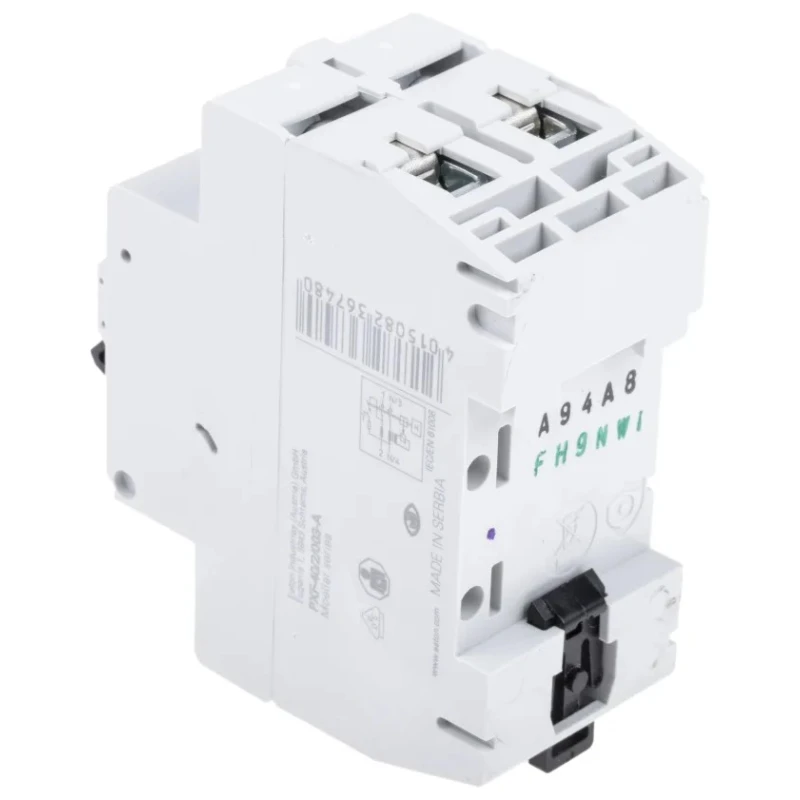

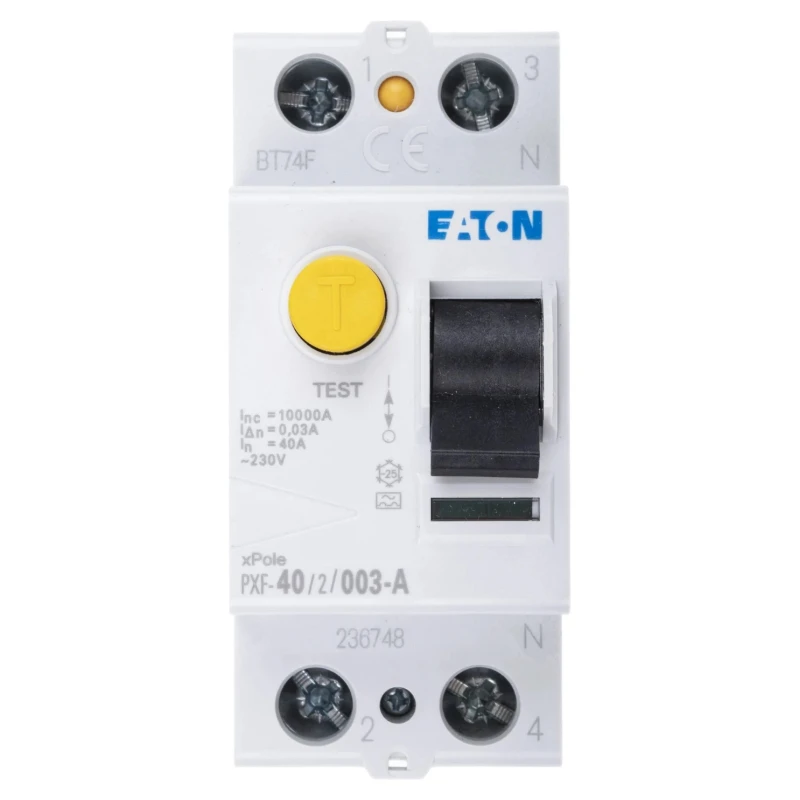

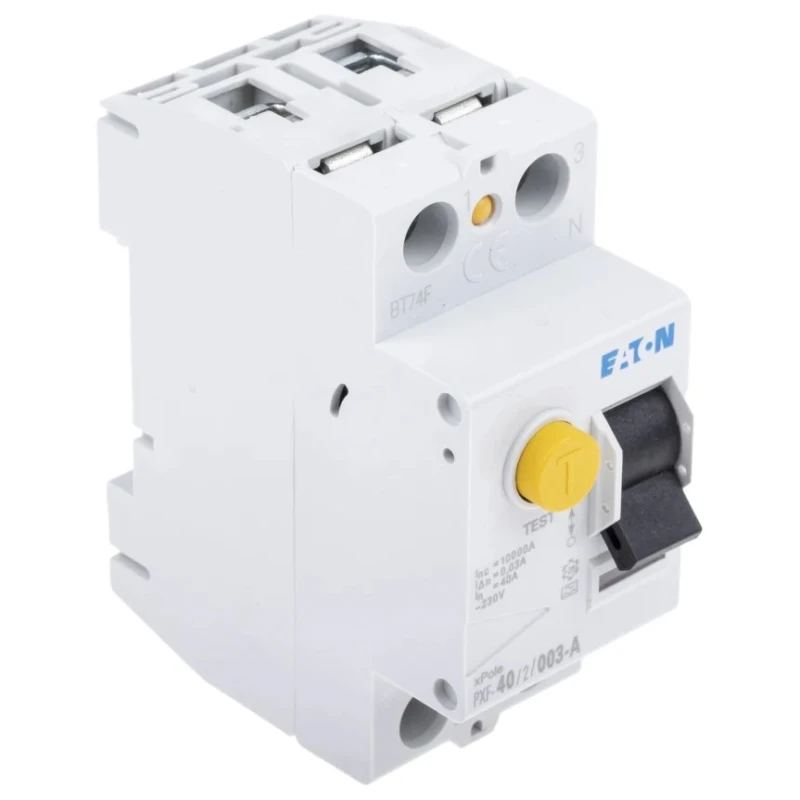

Eaton PXF-A Series Residual Current Circuit Breaker 40A, 1-Pole, 30 mA Trip Sensitivity, Type A, 500A 236748 PXF-40/2/003-A

The Eaton 236748 PXF-40/2/003-A is a high-quality residual current circuit breaker from the PXF-A series, designed for precise earth leakage protection. It covers a current rating of 40 amperes and features a sensitive trip current of 30 mA, making it suitable for protecting residential and commercial electrical installations against electric shock hazards.

This device offers one-pole configuration and a breaking capacity of 500 amperes, allowing it to safely interrupt fault currents. It operates on a rated AC voltage of 230 volts and features quick connect terminal types for efficient and secure wiring. DIN rail mounting compatibility ensures easy integration into standard electrical distribution boards.

The Type A tripping characteristic allows the unit to detect both alternating and pulsating direct residual currents, providing enhanced protection against complex fault scenarios often encountered in modern electrical environments. Equipped with a lever reset actuator, the breaker can be quickly reset manually after tripping events.

Compliant with international IEC/EN 61008 standards, the Eaton PXF-A series RCCB meets stringent safety and performance criteria. Its construction includes a double terminal design with lift and jaw contacts, ensuring reliable electrical connection and installation flexibility, with top or bottom rail arrangement options.

The compact form factor, measuring 80mm in height, 35mm in width, and 45mm in depth, makes it ideal for installations where space is at a premium. Additionally, the breaker provides real contact position and triggered state displays for enhanced diagnostics.

Rated current of 40 amperes for moderate electrical loads. Single pole configuration suitable for individual circuit protection. Type A tripping characteristic designed for pulsating direct currents. Breaking capacity of 500 amperes ensuring safe fault interruption.

Operating voltage of 230 volts AC for residential and commercial use. Quick connect terminals for fast and secure installation. DIN rail mounting compatibility for standard electrical panels. Equipped with lever reset actuator for manual reset after trip.

Complies with IEC/EN 61008 and RoHS standards ensuring quality and safety. Compact and versatile form factor for efficient panel space usage.

The Eaton PXF-A series Residual Current Circuit Breakers are widely applicable in residential, commercial, and light industrial electrical systems to prevent electric shock hazards by detecting earth leakage currents and isolating power quickly. These devices contribute significantly to electrical safety and compliance with regulations.
