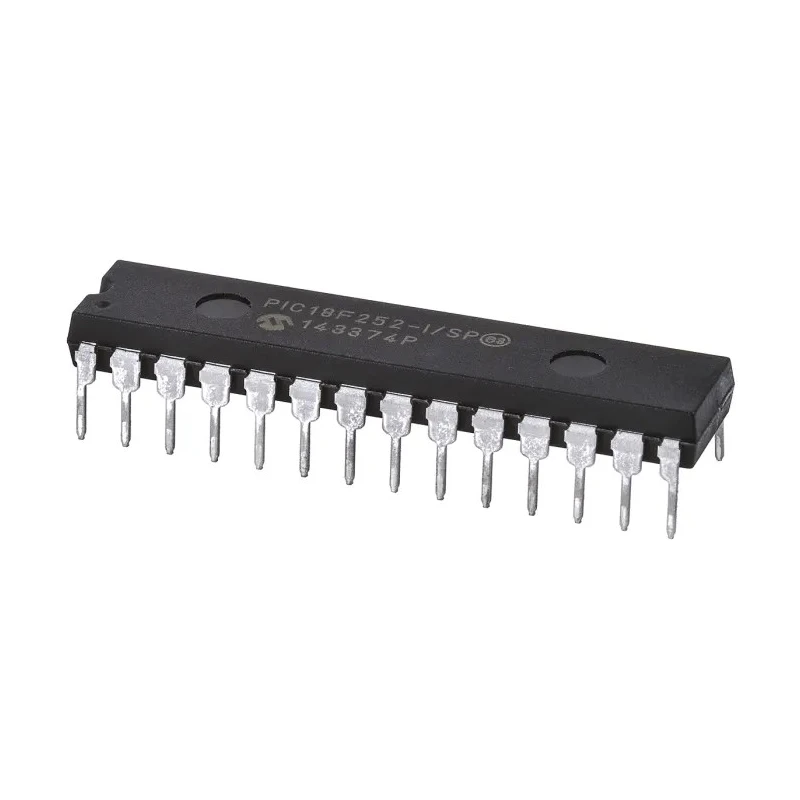

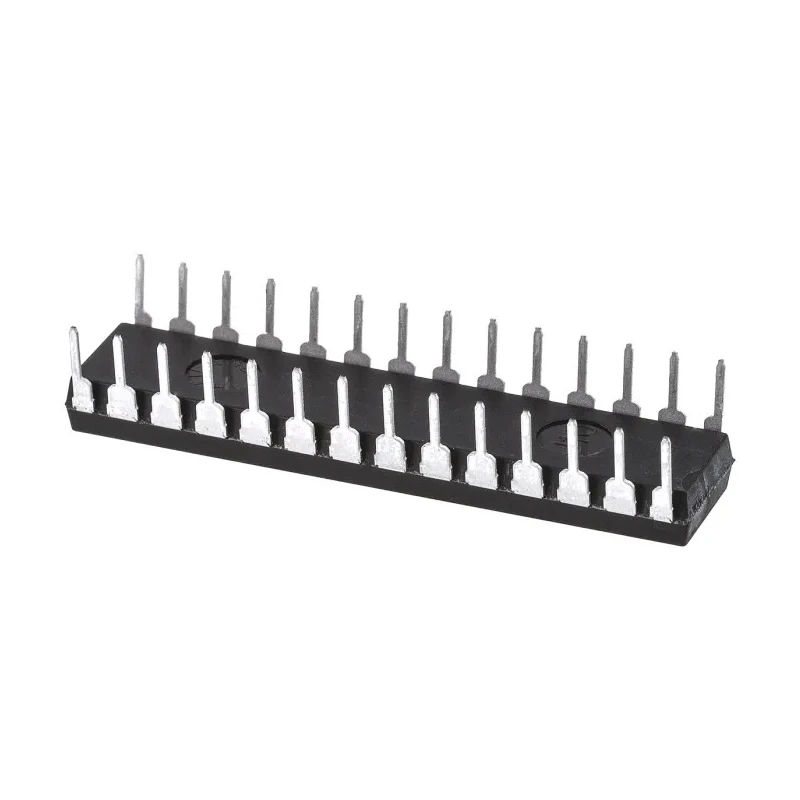

Microchip 8 bit PIC PIC18F Microcontroller 40 MHz 32kB FLASH 28-Pin SPDIP PIC18F252-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC18F252-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 23 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC device core and a 40 MHz maximum clock frequency.
- Incorporates 32kB of FLASH program memory and 1.54kB RAM memory.
- Supports 23 programmable I/O pins and 5 ADC channels with 10-bit resolution each.
- Operates with supply voltages ranging from 2V to 5.5V for low power consumption.
- Features 4 timers and a RISC instruction set architecture for high performance.
- Designed for through-hole mounting in a 28-pin SPDIP package with dimensions 35.18mm x 7.49mm x 3.43mm.
- Complies with RoHS standards ensuring environmental safety.
- Operates reliably within a temperature range of -40°C to 85°C for industrial applications.
Product Description
Microchip PIC18F252-I/SP is an 8-bit PIC microcontroller designed for embedded applications requiring efficient performance and reliable operation. Featuring a 40 MHz maximum clock frequency and 32kB of FLASH program memory, this device balances computation speed with ample storage for complex firmware.
This microcontroller utilizes a PIC device core with 8-bit data bus width and includes 1.54kB RAM to support variable data handling. It integrates 23 programmable input/output pins, enabling flexible interfacing with various peripherals and sensors.
The device offers five ADC channels with a 10-bit resolution enhancing its utility in precision analog signal processing. Four dedicated timers assist in time-critical applications such as event counting, pulse generation, and timing control.
Designed for through-hole mounting in a 28-pin SPDIP package, the PIC18F252-I/SP measures 35.18mm in length, 7.49mm in width, and 3.43mm in height, suitable for PCB layouts requiring DIP components. It operates with a supply voltage range from 2V minimum to 5.5V maximum, with a power dissipation limit of 1 watt, making it applicable for power-conscious embedded systems.
The microcontroller meets RoHS environmental compliance standards and operates reliably across a wide industrial temperature range from -40°C to 85°C, ideal for industrial, automotive, and commercial embedded system use cases.
Operates with an 8-bit PIC device core and a 40 MHz maximum clock frequency. Incorporates 32kB FLASH program memory and 1.54kB RAM. 23 programmable I/O pins for flexible interfacing. Five 10-bit ADC channels for analog signal conversion.
Four timers facilitating timing and control functions. 28-pin SPDIP package with through-hole mount suitable for DIP PCB layouts. Broad operating voltage range from 2V to 5.5V and 1W maximum power dissipation. RoHS compliant and industrial temperature rated from -40°C to 85°C.
This Microchip PIC18F252-I/SP microcontroller is widely suited for embedded electronic systems including industrial automation, instrumentation, automotive electronics, and consumer devices requiring reliable and efficient microcontroller solutions. Explore more Microcontrollers in the Semiconductor category at EnvMart to find components tailored to your specific applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It incorporates 32kB of FLASH program memory.
This microcontroller features 23 programmable I/O pins for flexible interfacing.
It operates reliably within a temperature range of -40°C to 85°C.
This model includes 1.54kB of RAM memory.
It is designed in a 28-pin SPDIP package suitable for through-hole mounting.
The microcontroller operates with a supply voltage ranging from 2V to 5.5V.
It offers five ADC channels, each with a 10-bit resolution.
The maximum power dissipation limit for this model is 1 watt.
It utilizes a RISC instruction set architecture for high performance.
This microcontroller is equipped with four dedicated timers.
It complies with RoHS standards, ensuring environmental safety.
