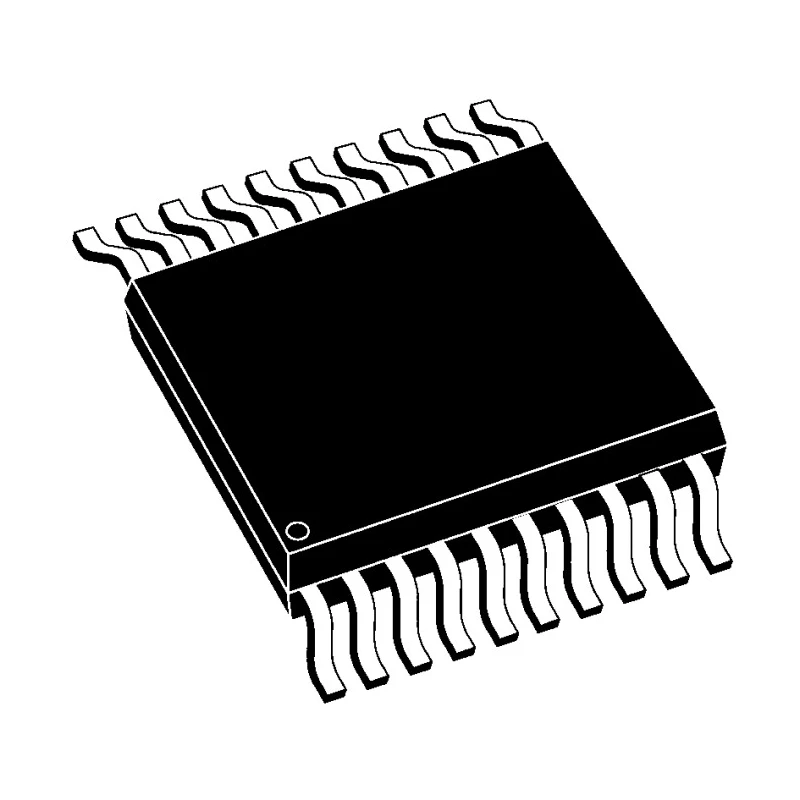

Microchip 8-bit PIC Microcontroller 20 MHz 256B FLASH 20-Pin SSOP PIC16F648A-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | PIC16F648A-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 224bit |
| Interface Type | UART |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Built on Microchip's PIC16F series with RISC architecture and 35 instructions.
- 8-bit data bus width with program memory size of 256 bytes and RAM size of 224 bits.
- Supports up to 20 MHz clock frequency and operates between -40°C and 85°C.
- Features 16 programmable I/Os, 2 analog comparators, and 3 timers for versatile applications.
- Includes power-saving features like Power-On Reset, Watchdog Timer, and Brown-Out Reset.
- Offers low-voltage and in-circuit serial programming capabilities.
- Compact SSOP package measuring 7.5 mm length, 5.6 mm width, and 1.85 mm height.
- Operating voltage range from 2V to a maximum of 5.5V with power dissipation up to 800mW.
Product Description
Microchip PIC16F648A-I/SS is an 8-bit PIC microcontroller built on the proven PIC16F series architecture. It features a 20 MHz maximum CPU speed and 256 bytes of FLASH program memory with 224 bits of RAM, suitable for embedded system applications requiring compact performance.
This microcontroller utilizes Microchip's RISC core with an 8-level deep hardware stack and supports 16 programmable input/output pins. It includes 2 analog comparators and 3 timers, providing flexibility for timing, control, and measurement tasks. Designers benefit from in-circuit serial programming (ICSP) and low-voltage programming (LVP), enhancing development efficiency.
The device supports operation in harsh environments with a wide temperature range from -40°C to 85°C, and can operate at supply voltages ranging from 2V to 5.5V. Its maximum power dissipation is rated at 800mW, ensuring energy efficiency. The SSOP package measures 7.5 mm by 5.6 mm and has a height of 1.85 mm, making it ideal for space-constrained designs.
Additional features include Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and Watchdog Timer (WDT), which are essential for reliable system operations in industrial, automation, consumer electronics, and embedded system environments.
The PIC16F648A-I/SS is RoHS compliant, guaranteeing environmental safety and compatibility in modern electronic design and manufacturing. It is suitable for applications in industrial control systems, consumer electronics, instrumentation, and other embedded system designs requiring reliable, efficient microcontrollers.
Built on Microchip's PIC16F series with RISC architecture and hardware stack. 8-bit data bus with 256 bytes FLASH and 224 bit RAM memory. Operates up to 20 MHz clock frequency supporting diverse application needs. 16 programmable I/Os, 2 analog comparators, and 3 timers for versatile control.
Includes Power-On Reset, Brown-Out Reset, and Watchdog Timer for stability. Low-voltage and in-circuit serial programming support for developer flexibility. Compact 20-pin SSOP package measures 7.5 x 5.6 x 1.85 mm for tight spaces.
Wide operating temperature range from -40°C to 85°C and voltage from 2V to 5.5V.
Explore our Microcontroller category for a wide range of Microchip devices and other semiconductor components suited for industrial, laboratory, and commercial electronics development projects through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 20 MHz.
It features a program memory size of 256 bytes (256B).
The operating temperature range is from -40°C to 85°C.
This model has 16 programmable input/output pins.
It comes in a 20-pin SSOP (Shrink Small Outline Package) format.
The maximum supply voltage is 5.5V.
Yes, it includes support for in-circuit serial programming (ICSP).
The height of this model is 1.85 mm.
It includes 3 timers for various control and measurement tasks.
It includes Power-On Reset, Watchdog Timer, and Brown-Out Reset for stability and power management.
The RAM size is 224 bits.
Yes, this model is RoHS compliant, ensuring environmental safety and compatibility.
