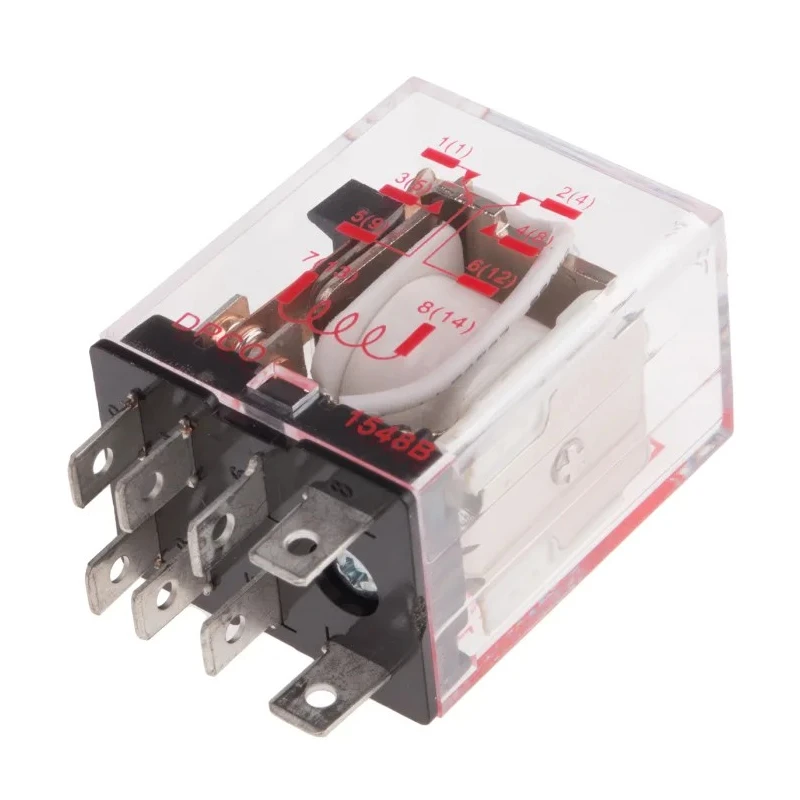

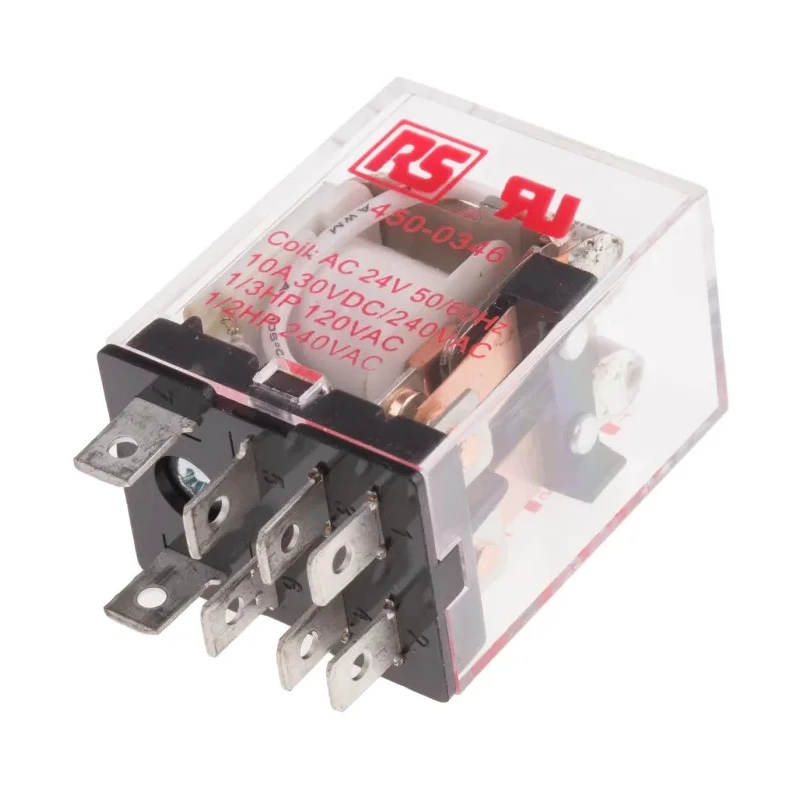

RS PRO Plug-in Power Relay, 24V AC Coil Voltage, 10A Switching Current, DPDT Contact Configuration 450-0346

RS PRO 450-0346 is a high-quality plug-in power relay designed for industrial and commercial electrical control applications. This relay features a 24V AC coil voltage and supports a switching current of 10A, making it suitable for controlling various electrical loads.

The double-pole double-throw (DPDT) contact configuration allows flexible switching options in complex circuits, while silver alloy contacts ensure minimal contact resistance (maximum 50mΩ), providing efficient electrical performance and durability.

Mounting the relay is convenient with its plug-in design and PCB pin terminals, simplifying integration into printed circuit boards. The relay is rated for switching AC voltages up to 240V and DC voltages up to 30V, catering to diverse application needs.

Operating temperature range spans from -45°C minimum to 55°C maximum, ensuring reliable performance in harsh environments. With a mechanical life expectancy of 10 million operations and an electrical life of 100,000 operations, the relay is engineered for long-term industrial use.

RS PRO 450-0346 meets internationally recognized standards including UL, CE, and EN, affirming its compliance with global safety and performance requirements. The contact material consists of silver alloy, offering excellent conductivity and resistance to wear.

Manufactured in Taiwan, Province of China, this relay brings quality assurance and consistency. Suitable for industrial automation, electrical control systems, and laboratory equipment, it provides reliable switching performance where dependable power relays are essential.

Designed with a 24V AC coil voltage for reliable operation. Features double-pole double-throw (DPDT) contact configuration. Supports a maximum switching current of 10A for diverse load demands. Constructed with silver alloy contacts ensuring low contact resistance up to 50mΩ.

Compact plug-in mount type with PCB pin terminals for ease of installation. Rated for switching AC voltage up to 240V and DC voltage up to 30V. Operates within a temperature range of -45°C to 55°C for robust environmental performance.

Mechanical life of 10 million operations and electrical life up to 100000 operations ensure long service life. Complies with UL, CE, and EN standards for safety and quality assurance. Manufactured in Taiwan, Province of China, assuring consistent quality.
