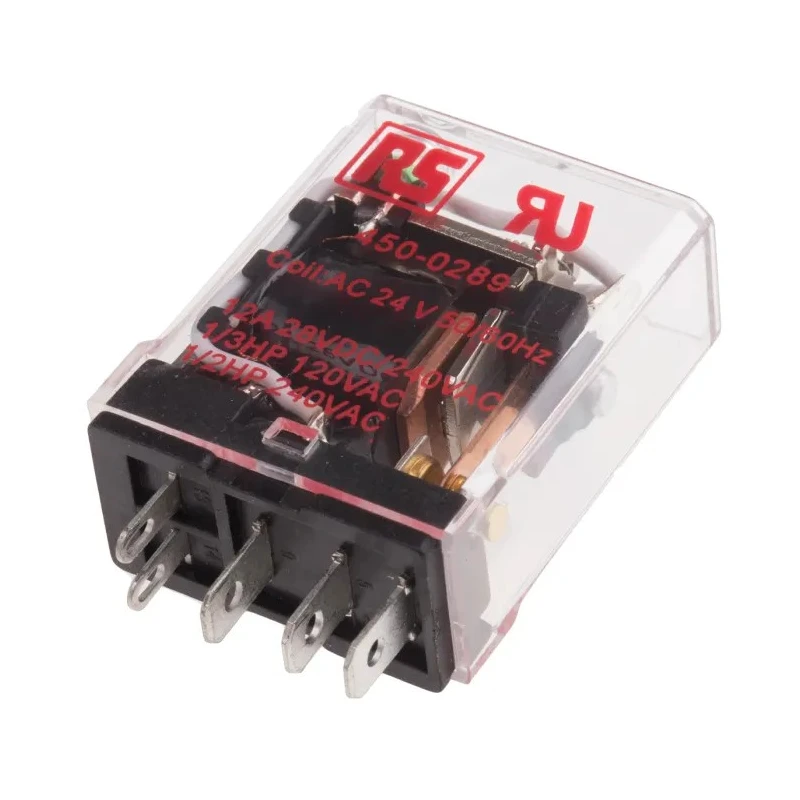

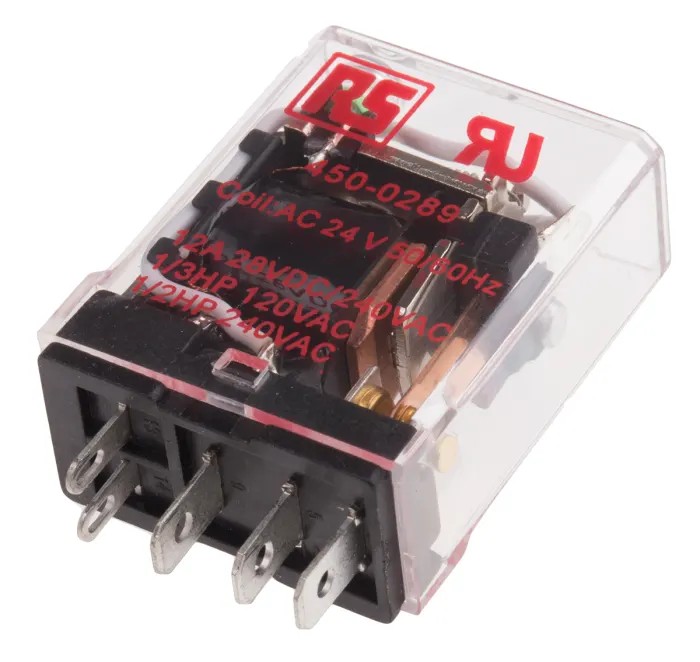

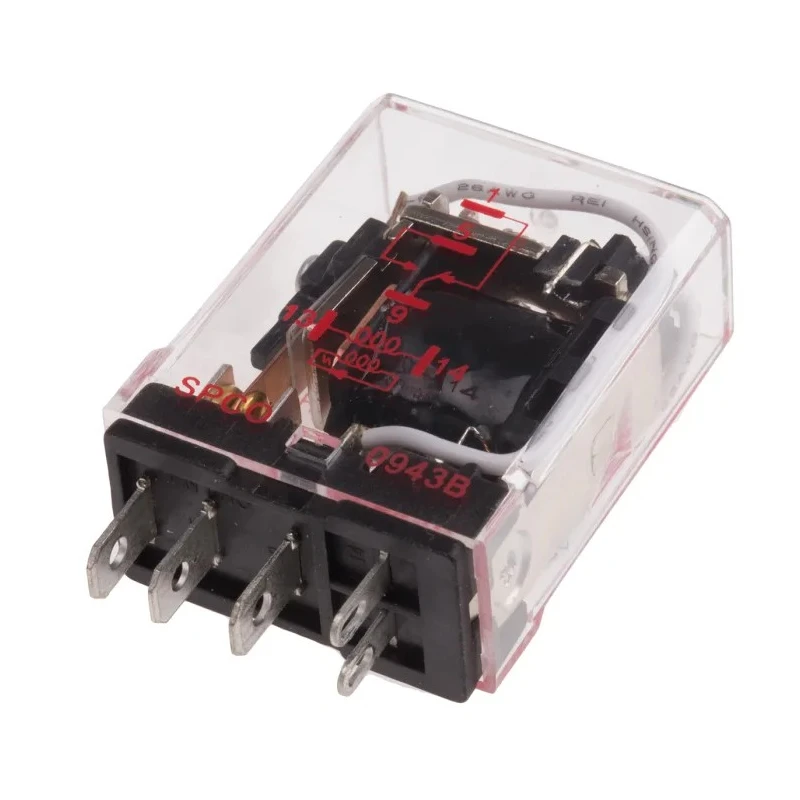

RS PRO 24V AC Coil Power Relay, 15A Switching Current, SPDT PCB Mount 450-0289
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 35.6mm |
| Length | 27mm |
| Model | 450-0289 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | UL, EN, CE |
| Mechanical Life | 10 million operations |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 1.2W |
| Electrical Life | 100000 operations |
| 10A SPCO RELAY+LED 24VACBrand | Idec |
Key Features
- Operates with coil power of 1.2W for efficient switching performance.
- Suitable for switching AC voltage up to 240V and DC voltage up to 28V.
- Compact dimensions with length 27mm, width 13.5mm, and height 35.6mm.
- Operates reliably between -45°C to 55°C operating temperatures.
- Contact material made from silver alloy ensuring low resistance and high conductivity.
- Mechanical life rated at 10 million operations and electrical life rated at 100,000 operations.
- Coil resistance measured at 180 ohms confirming precise coil function.
- Designed with PCB pin terminal type for secure mounting and connection.
Product Description
RS PRO model 450-0289 is a high-quality power relay unit designed for industrial and electronic applications requiring reliable switching capabilities. It features a coil voltage of 24V AC and a switching current rating of 15A, making it ideal for control of moderate power loads.
The relay uses a single-pole double throw (SPDT) contact configuration and is designed for PCB mounting using PCB pin terminals. It delivers switching performance for AC voltages up to 240V and DC voltages up to 28V, supporting a variety of control circuits.
Constructed with a silver alloy contact material, it ensures minimal contact resistance (max 50 milliohms), providing efficient and durable operation. The coil power consumption is low at 1.2 watts, optimizing energy efficiency in circuit operation.
The dimensions of the relay are compact, with length 27mm, width 13.5mm, and height 35.6mm, allowing easy integration in tight circuit assembly spaces. It can operate effectively in a temperature range of -45°C to +55°C, suitable for a variety of industrial environments.
This relay boasts a mechanical life of 10 million operations and an electrical life of 100,000 operations, ensuring longevity and reliability in demanding applications. Operates at 24V AC coil voltage for reliable activation.
Supports 15A switching current with SPDT contact configuration. Compact PCB mount design with secure PCB pin terminals. Silver alloy contacts provide low resistance and durability. Works efficiently from -45°C to 55°C operating temperature.
Mechanical life up to 10 million cycles for durability. Electrical operational life of 100,000 cycles for longevity. Low coil power consumption of 1.2 watts.
This RS PRO Power Relay is widely used in industrial electronics, automation systems, and control panels. It suits applications requiring dependable switching of medium to high current loads on PCBs with precision and safety.
Explore EnvMart's extensive Electronics & Electricals category for more reliable relays and contactors to fulfill your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 15A, making it suitable for controlling moderate power loads.
This model has compact dimensions of 27mm in length, 13.5mm in width, and 35.6mm in height, allowing for easy integration into tight spaces.
The coil voltage for this relay is 24V AC, which is necessary for its activation.
It can switch AC voltages up to 240V, making it versatile for various applications.
The relay features a single-pole double throw (SPDT) contact configuration, allowing for flexible switching options.
The mechanical life of this relay is rated at 10 million operations, ensuring long-lasting performance.
The electrical life of this relay is rated at 100,000 operations, indicating its longevity under electrical load.
The coil power consumption is low at 1.2 watts, optimizing energy efficiency during operation.
This relay can operate effectively in temperatures as low as -45°C, suitable for various industrial environments.
The contact material is made from silver alloy, which ensures low resistance and high conductivity.
It is designed for PCB mounting using PCB pin terminals, providing secure and reliable connections.
This relay is compliant with UL, EN, and CE standards, ensuring it meets various safety and quality regulations.
