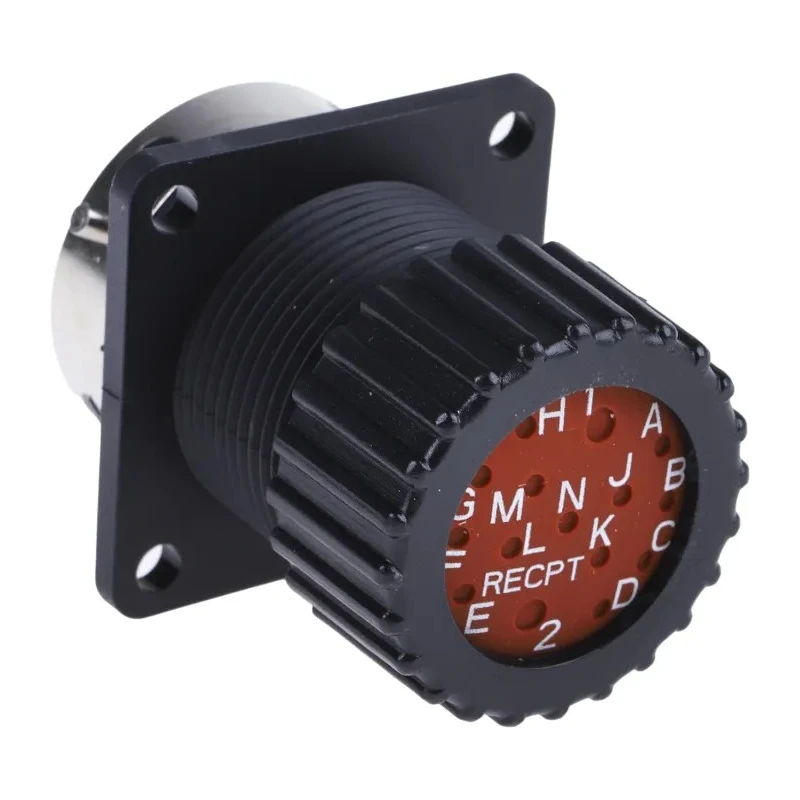

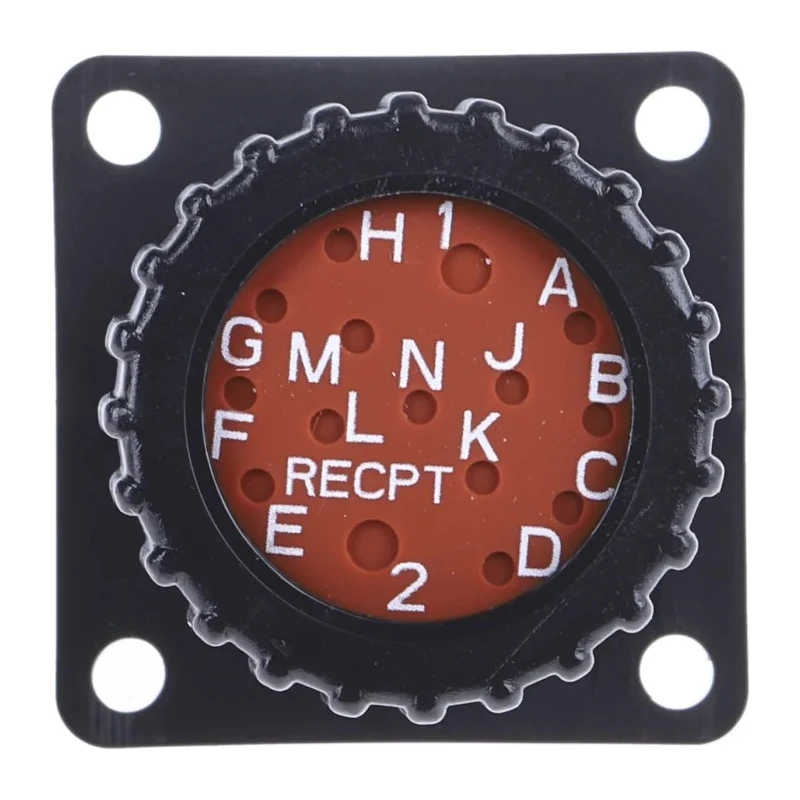

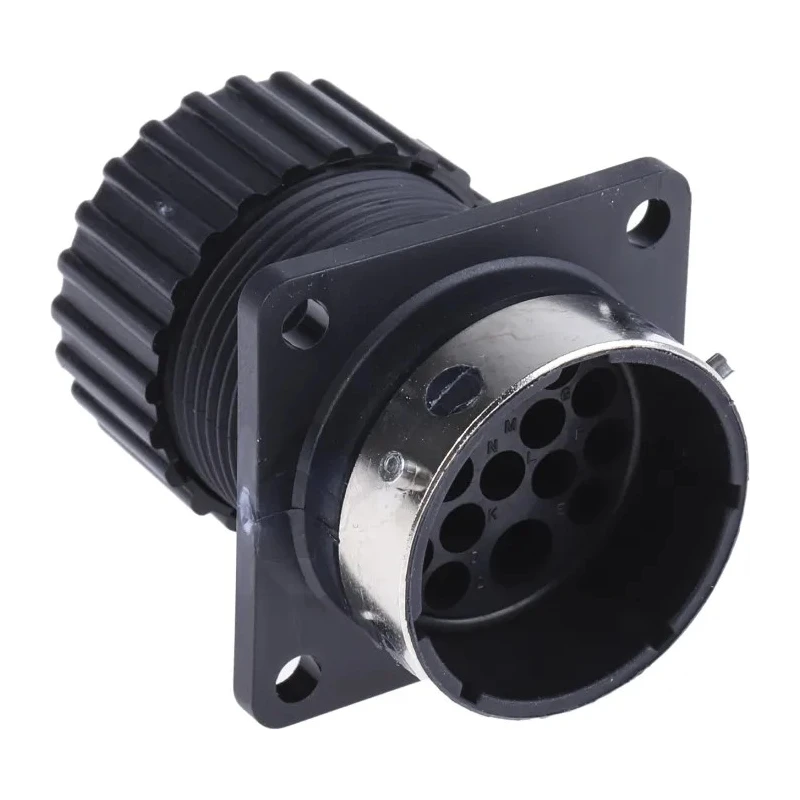

ITT Cannon Circular Connector 15 Contacts Panel Mount Socket Male Nylon IP67 Trident Neptune TN0S16-0213P1L / 192900-0582
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN0S16-0213P1L / 192900-0582 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 15 |
| Contact Plating | Nickel |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shell Size | 16 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- High durability with 500 mating cycles certified.
- Mixed configuration of power and signal contacts in one housing.
- Bayonet mating type ensures secure connection and ease of use.
- Operating temperature range from -55°C to 105°C suitable for harsh environments.
- Constructed with nylon housing and nickel-plated copper contacts for corrosion resistance.
- Rated for 250V and 30A current providing robust electrical performance.
- Water-submersible design supports demanding industrial applications.
- Straight orientation and crimp termination type for reliable installation.
Product Description
ITT Cannon TN0S16-0213P1L / 192900-0582 Circular Connector is a robust industrial-grade connector designed for demanding applications in automotive, marine, off-road vehicles, and industrial automation sectors. This panel mount socket connector features a total of 15 contacts, including 13 signal contacts and 2 power contacts, mixed into a single housing for versatile connections.
Constructed with a durable nylon housing and equipped with a nickel-plated copper alloy coupling ring, it offers excellent resistance to corrosion and environmental challenges. The connector supports a voltage rating of 250V and a current rating of up to 30A, delivering reliable electrical performance for harsh and rugged environments.
The connector’s bayonet mating mechanism coupled with stainless steel bayonet pins ensures secure and fast connections with high cycle durability rated at 500 mating cycles. Its IP67 rating confirms water and dust ingress protection, making it suitable for use in wet or dusty industrial settings.
The straight body orientation and crimp termination type provide installation convenience while maintaining connection integrity. The connector operates effectively within a temperature range from -55°C to 105°C, suitable for extreme temperature conditions.
Key applications include use in off-road vehicles, trucks, buses, agricultural and construction equipment, printing machines, and stamping machines. Available with a wide selection of backshell accessories, rear housings, and dust caps, this connector offers flexibility to meet various industrial requirements.
High durability with 500 mating cycles certified. Mixed configuration of power and signal contacts in one housing. Bayonet mating type ensures secure connection and ease of use. Operating temperature range from -55°C to 105°C suitable for harsh environments.
Constructed with nylon housing and nickel-plated copper contacts for corrosion resistance. Rated for 250V and 30A current providing robust electrical performance. Water-submersible design supports demanding industrial applications.
Straight orientation and crimp termination type for reliable installation. Widely used in automotive, marine, and process control industries. Meets IP67 standard for dust and water ingress protection.
Explore more high-quality Industrial Circular Connectors like the ITT Cannon series in EnvMart's Electronics Components category for reliable performance and durability in your engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250V and a current of up to 30A, ensuring robust electrical performance in various applications.
The connector has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It features a total of 15 contacts, which includes 13 signal contacts and 2 power contacts, all within a single housing.
The housing is made of nylon, while the contacts are constructed from nickel-plated copper, offering corrosion resistance.
It operates effectively within a temperature range from -55°C to 105°C, suitable for extreme temperature conditions.
This connector utilizes a bayonet mating type, which ensures secure connections and ease of use during installation.
It features a crimp termination type, which provides reliable installation and connection integrity.
It is widely used in automotive, marine, off-road vehicles, and industrial automation sectors, including trucks, buses, and agricultural equipment.
The shell size of this model is 16 mm, which is standard for its category.
This connector is rated for 500 mating cycles, ensuring high durability for repeated use.
The connector features a straight orientation, which aids in its installation and application versatility.
This model is part of the Trident Neptune series, known for its robust design and performance in demanding environments.
