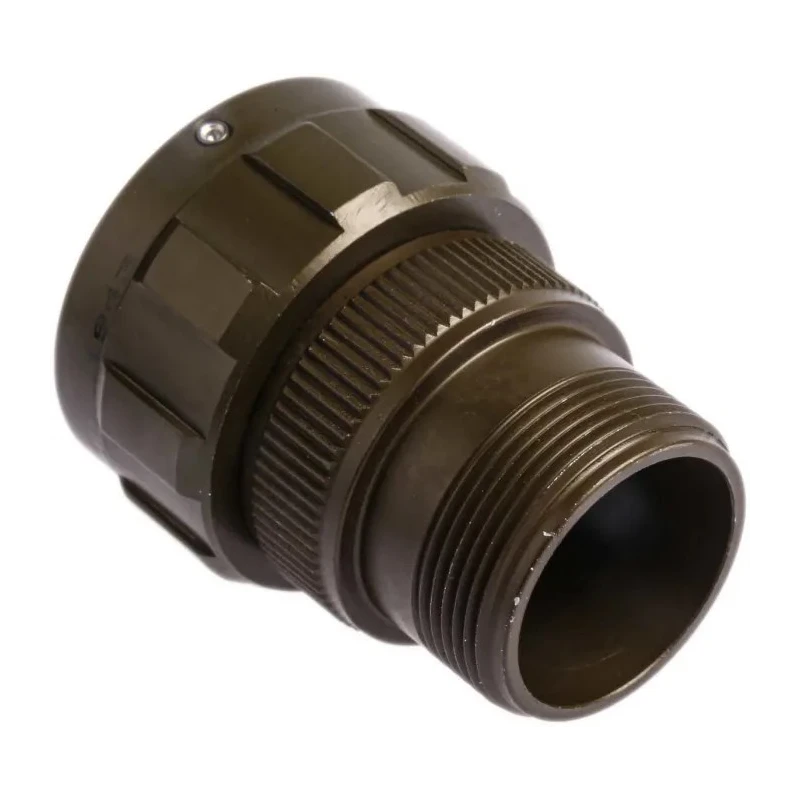

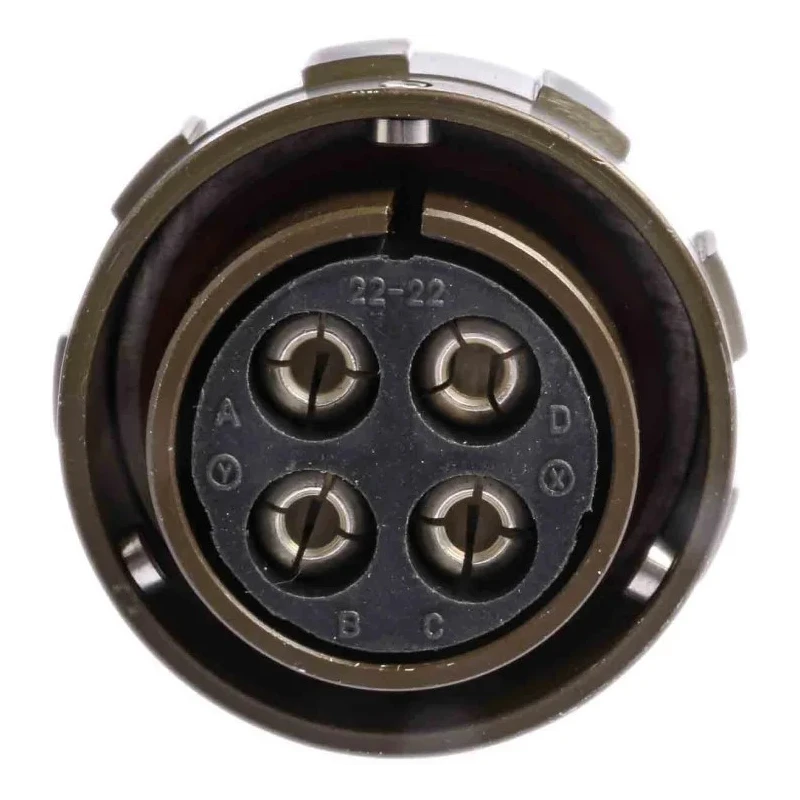

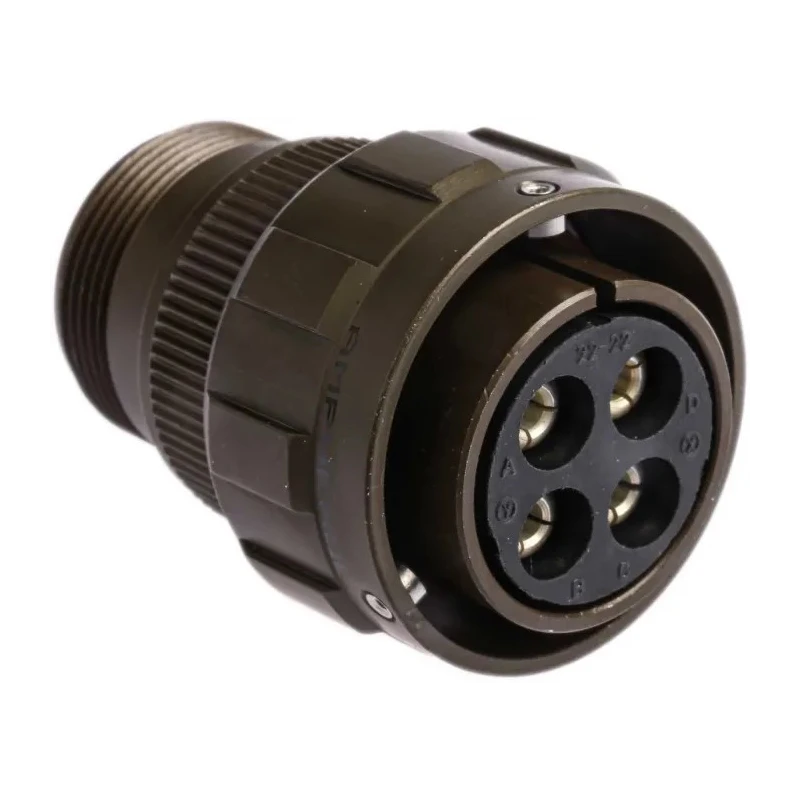

Amphenol Limited MIL Spec Circular Connector Brass Straight 4 Way Cable Connector 500V 46A Shell Size 22 97B-3106A-22-22S-HD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 46A |
| Model | 97B-3106A-22-22S-HD |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Brass |
| Series | 97B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 22 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Connector features bayonet mating type for secure and reliable connection.
- Housing made of aluminium alloy with olive drab cadmium plating for durability and corrosion resistance.
- Solder termination type with silver-plated brass female contacts ensures excellent conductivity.
- Minimum operating temperature is -55°C and maximum operating temperature is 125°C.
- Connector orientation is straight with strain relief included for cable protection.
- Suitable for industrial, military, and harsh environment applications.
- Complies with MIL-DTL-5015 and interconnectable with BS 9522 F0032 specifications.
Product Description
Amphenol Limited 97B-3106A-22-22S-HD is a MIL Spec Circular Connector designed as a brass straight 4 way cable connector with female contacts and a male olive drab shell. It operates at 500V AC and supports current up to 46A, suitable for demanding industrial and military environments. This MIL-DTL-5015 compliant connector offers bayonet mating for ease of connection and disconnection while maintaining secure engagement.
The connector features an aluminium alloy housing with olive drab cadmium plating, enhancing corrosion resistance and mechanical robustness. The female contact material is brass plated with silver for superior electrical performance. This connector supports a minimum operating temperature of -55°C and a maximum of 125°C, making it suitable for extreme temperature applications.
The design includes strain relief and a straight orientation for cable mounting. It is compatible with other connectors adhering to BS 9522 F0032 standards. These connectors are indispensable in industrial, military, and harsh environment applications where reliability and durability are critical.
Key features include bayonet locking mechanism, solder bucket contacts, and a shell size of 22, providing a solid, reliable interface for power and signal transmission. The olive drab finish and rugged construction ensure longevity and environmental protection.
Connector uses bayonet mating type offering quick and secure connections. Durable aluminium alloy housing with olive drab cadmium plating protection. Solder termination with silver-plated brass female contacts for reliable conductivity.
Wide operating temperature range from -55°C to 125°C suitable for extreme environments. Includes strain relief to protect cable integrity and support long-lasting use. Meets MIL-DTL-5015 and BS 9522 F0032 military specifications for interoperability.
Ideal for industrial automation, military electronics, aerospace, and harsh condition deployments.
This Amphenol Limited MIL Spec Circular Connector 97B-3106A-22-22S-HD offers excellent durability and performance for users needing dependable cable connections under challenging conditions. Browse more power connectors and Mil Spec Circular Connectors at EnvMart for technical solutions and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 500V AC.
This connector supports a maximum current of 46A.
The minimum operating temperature is -55°C and the maximum is 125°C.
It features a bayonet mating type for secure connections.
The housing is made of aluminium alloy with olive drab cadmium plating, and the contacts are brass with silver plating.
The shell size of this connector is 22.
It utilizes a solder termination type for the connections.
Yes, it complies with MIL-DTL-5015 and is interconnectable with BS 9522 F0032 specifications.
The connector has a straight orientation for cable mounting.
Yes, it includes strain relief to protect the integrity of the cable.
It is suitable for industrial, military, and harsh environment applications.
The country of origin for this connector is India.
