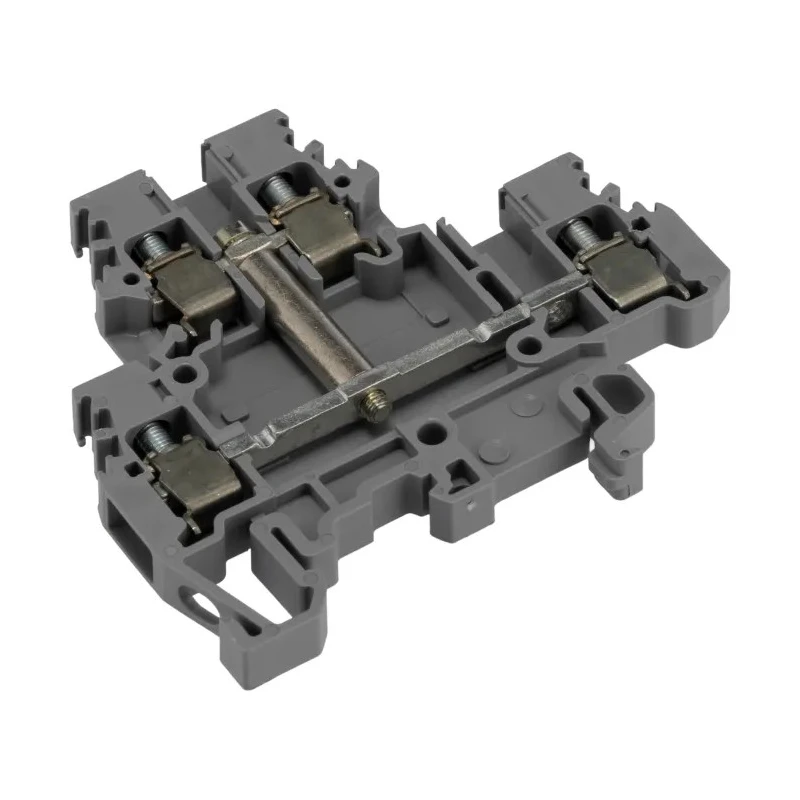

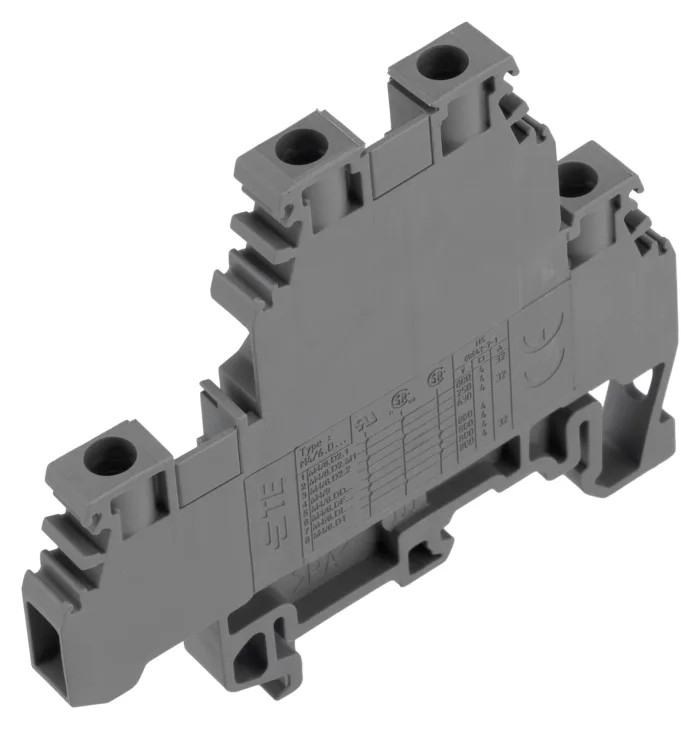

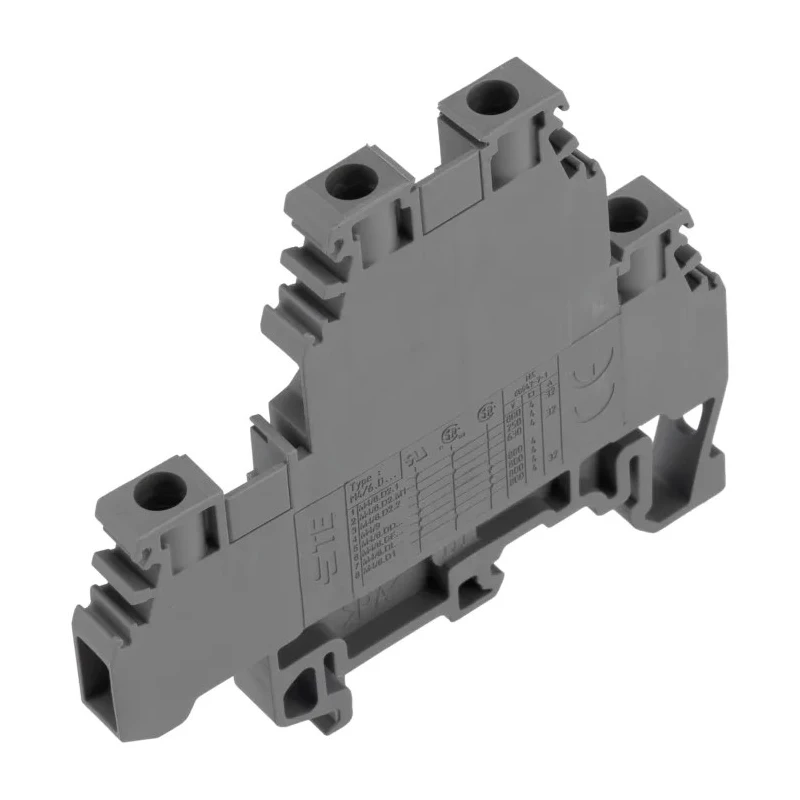

Entrelec SNA Series Double Level Terminal Block Grey, 0.2mm² to 4 mm², 2-Level, Screw Termination, 800V AC 1SNA115166R1100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V ac |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA115166R1100 |
| Series | SNA |
| Termination Type | Screw |
| Maximum Operating Temperature | 40°C |
| Number of Levels | 2 |
| Minimum Operating Temperature | -5°C |
| Pitch | 6mm |
| Standards/Approvals | EAC |
| Minimum Wire Size AWG | 12AWG |
| Cable CSA | 0.2, 4mm² |
| Terminal Block Current | 32A |
| Two versions available | one with vertical interconnection and partition on the lower deck, one version with just partition |
Key Features
- Constructed in grey flame-resistant polyamide 6.6 for durability and safety.
- Features two levels with a 6mm pitch suitable for dense wiring arrangements.
- Accommodates minimum wire size of 12 AWG, enabling versatile connection capabilities.
- Designed for operation between -5°C and 40°C ensuring stable performance in various environments.
- Includes versions with vertical interconnection and partition options to suit installation needs.
- Compatible with both symmetrical and asymmetrical DIN rails for broad application.
- Captive terminal screws with hardened heads resist burring for maintenance ease.
- Conforms to EAC standards ensuring quality and regulatory compliance.
Product Description
Entrelec 1SNA115166R1100 SNA Series Double Level Terminal Block is a robust electrical connector designed for industrial and commercial electrical installations. This double deck terminal block features vertical connections facilitated through pre-assembled jumper bars, providing efficient and secure conduction paths.
Constructed from flame-resistant polyamide 6.6 in a grey finish, it offers excellent durability and complies with stringent safety standards. The terminal block supports wire sizes ranging from 0.2mm² to 4 mm² (minimum wire size 12 AWG) and operates safely up to 800V AC with a maximum current rating of 32A.
The product includes two levels with a 6mm pitch, optimizing space while maintaining proper electrical clearance. Operating temperature ranges from -5°C to 40°C, making it suitable for various industrial and commercial environments. The screw termination type with hardened captive screws ensures secure connections and minimizes maintenance overhead due to screw head burring.
Two versions are offered: one featuring vertical interconnection and partition on the lower deck, and another with only partitions, providing flexibility for different wiring and installation requirements. This terminal block snaps onto both symmetrical and asymmetrical DIN rails, including top hat profiles, enhancing installation adaptability.
Durable flame-resistant polyamide 6.6 construction. Vertical connection via pre-assembled jumper bars for efficient circuit linking. Suitable for wire sizes from 0.2mm² to 4 mm² with screw termination. Rated for 800V AC at 32A current handling capacity.
Temperature rating from -5°C to 40°C for diverse environment use. Compatible with symmetrical and asymmetrical DIN rail profiles. Complies with EAC standards for reliability and safety.
This product is ideal for use in electrical panels, control cabinets, and distribution boards within industrial, manufacturing, and commercial utilities sectors. Its flexible mounting options and secure connections make it valuable in systems requiring high reliability under varied conditions.
Explore the wide range of DIN Rail Terminal Blocks and accessories available on EnvMart to complement this Entrelec SNA series terminal block for comprehensive electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for operation up to 800V AC.
This terminal block supports wire sizes ranging from 0.2mm² to 4mm², with a minimum wire size of 12 AWG.
The maximum current rating is 32A.
It operates safely within the temperature range of -5°C to 40°C.
It features screw termination with hardened captive screws to minimize maintenance issues.
This model has two levels, designed with a 6mm pitch for efficient wiring.
It conforms to EAC standards, ensuring regulatory compliance.
It is constructed from grey flame-resistant polyamide 6.6.
Yes, it is compatible with both symmetrical and asymmetrical DIN rails, including top hat profiles.
The country of origin for this terminal block is India.
