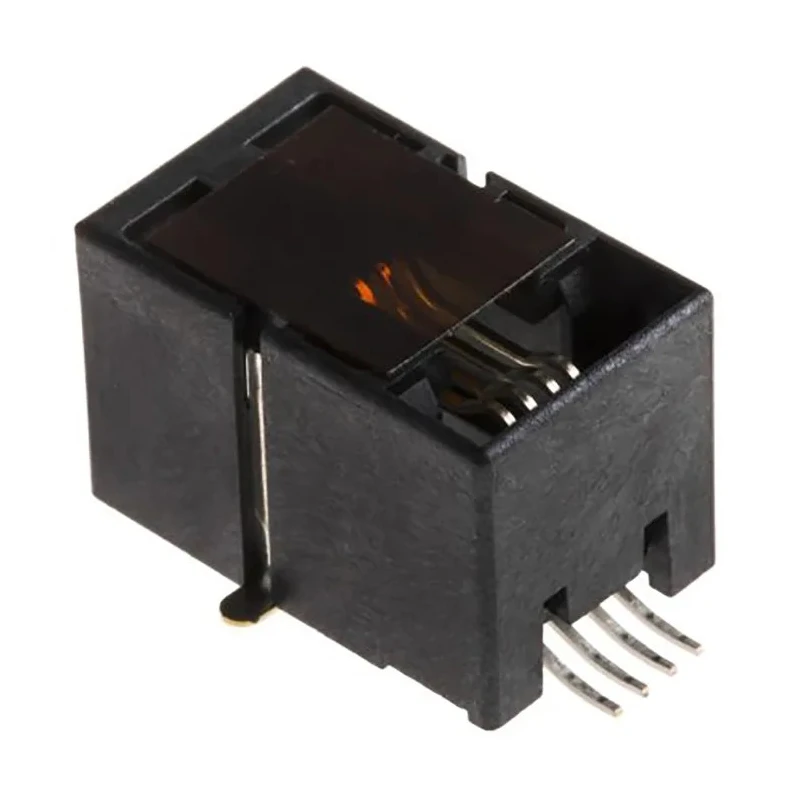

Molex 85502 Series RJ11 Connector Male Surface Mount Cat3 Unshielded Right Angle 1 Port 4 Way RJ11

Free Delivery in India | Lowest Global Shipping Charges

Molex 85502 Series RJ11 Connector Male Surface Mount Cat3 Unshielded Right Angle 1 Port 4 Way RJ11

Name: Molex 85502 Series RJ11 Connector Male Surface Mount Cat3 Unshielded Right Angle 1 Port 4 Way RJ11
Brand: Molex
SKU: 120652
Price: 3.13 USD
Availability: InStock



Category Ethernet Connectors Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Orientation	Right Angle
Length	21.38mm
Model	RJ11
Depth	18.1mm
Connector Type	Modular Jack
Number Of Ways	4
Width	11.18mm
Mount Type	Surface
Contact Material	Brass
Series	85502
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Unshielded
Contact Plating	Tin, Gold over Nickel
Connector Gender	Male
LAN Category	Cat3
Ethernet Connector Type	RJ11

Key Features

Modular jack type connector designed for surface mounting.
Supports Cat3 LAN category for telecommunication applications.
Right-angle orientation ensures low profile and convenient installation.
Connector gender is male with 4-way configuration to match RJ11 standards.
Constructed with brass contacts plated with tin and gold over nickel for durability.
Operates reliably within temperature range of -40°C to 85°C.
Solder termination type provides secure electrical connection.
Unshielded design suitable for non-magnetic applications without LEDs or light pipes.

Product Description

Molex RJ11 connector model RJ11 from the 85502 series is a high-quality male modular jack designed for surface mounting in network and telecom equipment. It supports Cat3 LAN category and features a right-angle orientation to facilitate compact circuit layouts. The connector provides one port with a 4-way configuration (4/4), enabling standard RJ11 connectivity for telecommunications and related systems.

The contact material is brass plated with tin and gold over nickel, ensuring low contact resistance and corrosion resistance for reliable signal transmission. The connector is unshielded and does not incorporate magnetic components, LEDs, or light pipes, making it suitable for consumer and industrial Ethernet applications where shielding is not required.

Operating temperature ranges from a minimum of -40°C to a maximum of 85°C, supporting use in varied environmental conditions including industrial and commercial telecommunications infrastructure. This RJ11 connector terminates via solder and features dimensions of 21.38 mm length, 11.18 mm width, and 18.1 mm depth, allowing installation in low-profile surface mount applications.

The Molex 85502 series connector is widely used in industrial, commercial, and telecommunications sectors for connecting Cat3 Ethernet devices, telephony equipment, and network hardware.

Modular jack type connector designed for surface mounting. Supports Cat3 LAN category for telecommunication applications. Right-angle orientation ensures low profile and convenient installation. Connector gender is male with 4-way configuration to match RJ11 standards.

Constructed with brass contacts plated with tin and gold over nickel for durability. Operates reliably within temperature range of -40°C to 85°C. Solder termination type provides secure electrical connection. Compact dimensions: length 21.38 mm, width 11.18 mm, depth 18.1 mm.

Unshielded design suitable for non-magnetic applications without LEDs or light pipes. Explore more reliable Ethernet Connectors and networking solutions at EnvMart for your industrial and commercial electronics needs.
