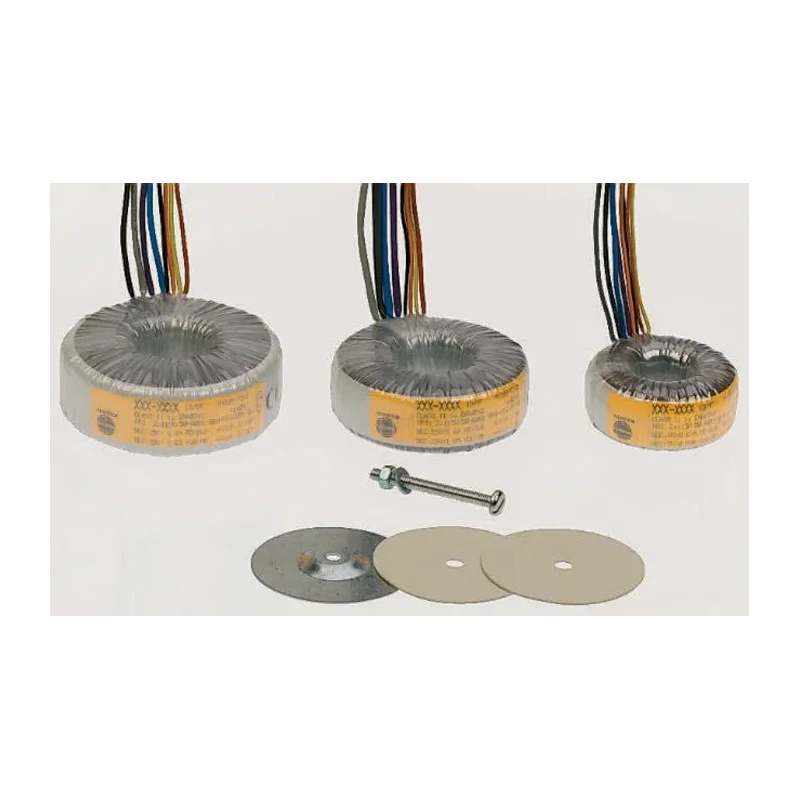

Nuvotem Talema 230 V ac 2 x 55 V ac Toroidal Transformer 2 Output 625 VA RoHS 92442-P2S2

The Nuvotem Talema 92442-P2S2 is a high-quality toroidal transformer designed for electronic and industrial power supply applications. It supports a primary voltage of 230 V ac and provides two secondary outputs at 55 V ac each, with a total power capacity of 625 VA. The toroidal design ensures a compact size and low electromagnetic interference, making it suitable for noise-sensitive environments.

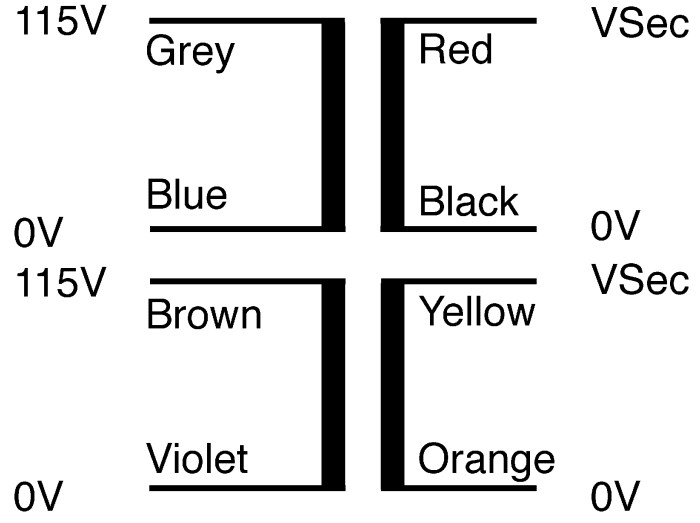

This transformer features dual 115 Vac primary windings which can be wired in series for 230 V operation or parallel for 115 V operation, offering flexibility for different voltage requirements. Additionally, the twin secondary windings can be connected in series, parallel, or used independently, enabling versatile output configurations.

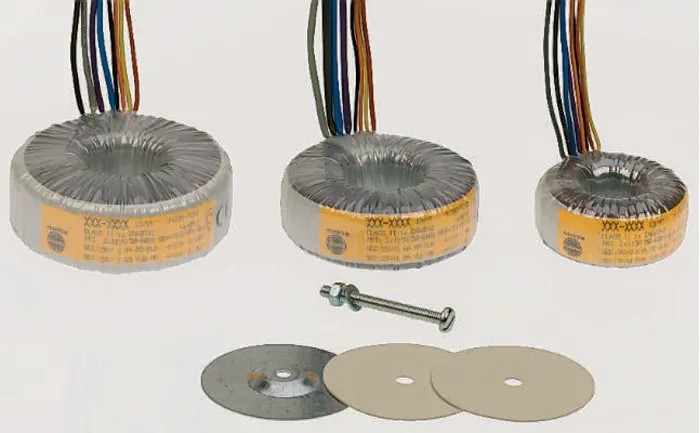

With a diameter of 136 mm and height of 68 mm, this open style toroidal transformer is lightweight at 4.3 kg. It includes double insulated leads for safety and is supplied with a complete mounting kit for secure installation. The operating frequency range is from 50 Hz to 60 Hz with a maximum ambient temperature rating of 40°C, ensuring stable performance under normal industrial conditions.

Its robust construction and adherence to international standards such as EN61558, EN60950, EN60065, VDE 0551, VDE 0550, BS415, UL506, and RoHS compliance make it a reliable choice for varied electronics manufacturing, laboratory, and industrial applications.

Industrial sectors such as power supply manufacturing, test and measurement equipment, and electronic component assembly can benefit from using this Toroidal Transformer. The low radiated noise and magnetic leakage also make it suitable for sensitive automation and control systems.

Dual primary windings for flexible voltage input options. Twin secondary windings for configurable output use cases. Compact and lightweight toroidal core design. Double insulated leads and mounting kit included. Wide frequency and temperature operating range.

Compliance with multiple international electrical safety and performance standards. Explore more transformers and electronic components from Nuvotem Talema on EnvMart for all your industrial and laboratory power needs.
