binder Circular Connector 6 Contacts Cable Mount Socket Female IP40 Polyamide 250V Solder 680 Series 09-0322-00-06
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |

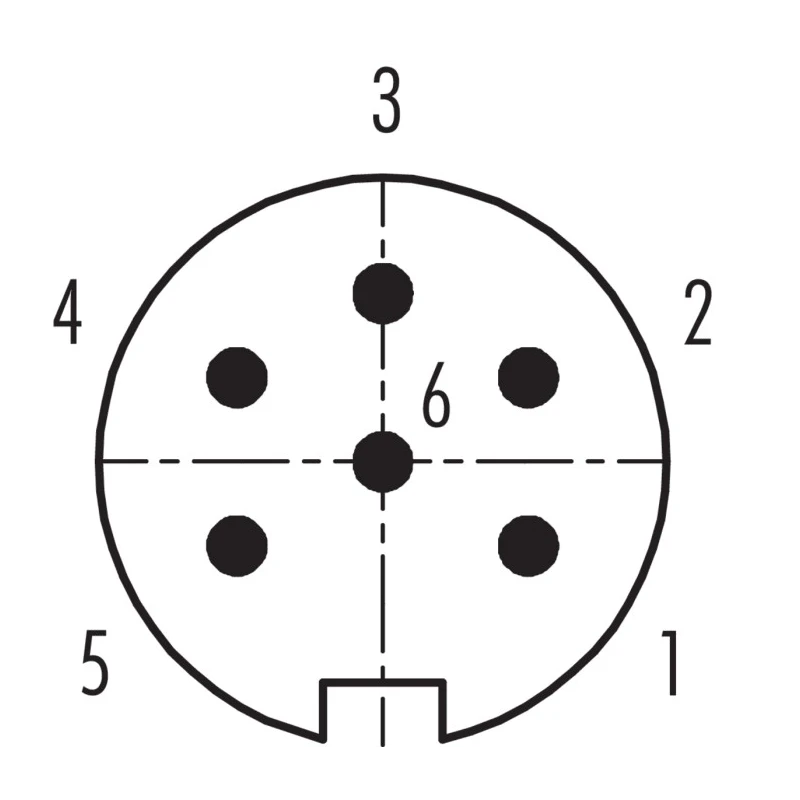

| Number of Contacts | 6 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Compact miniature design suitable for cable mounting applications.
- Features a screw locking mechanism conforming to IEC 130-9 standards.
- Internal bend protection sleeve offers maximum cable retention.
- Constructed with polyamide housing for durability and lightweight handling.
- Rated for 250V voltage and 5A current capacity ensuring reliable performance.
- Silver plated bronze contacts guarantee effective conductivity and corrosion resistance.
- Operating temperature range from -40°C to 85°C adapts to various industrial environments.
- Ingress protection rating IP40 suitable for indoor use without dust or moisture exposure.
Product Description
binder 09-0322-00-06 circular connector with 6 contacts is a miniature cable mount socket designed for industrial applications requiring secure and compact electrical connections. The 680 Series features a robust polyamide housing and a silver-plated bronze contact system ensuring durability and excellent electrical conductivity. Rated at 250V and 5A, it supports demanding industrial instrumentation and automation systems.
This circular connector employs a screw locking mating type with an M16 connector size and shell size of 18.5 mm, enhancing mechanical stability and reliable connection continuity. The internal bend protection sleeve and strain relief maximize cable stability, preventing damage under mechanical stress.
Its operating temperature range from -40°C to 85°C makes it suitable for a wide range of industrial environments. The IP40 ingress protection rating designates it for indoor applications, protecting against non-conductive dust and limited moisture exposure. This socket female connector is part of Binder’s 680 series known for compactness, ease of assembly by solder termination, and high mating cycle durability.
Common industrial use cases include process control equipment, machine tools, medical equipment, plant equipment, and electrical industrial automation. It is ideal for environments that require a miniature, reliable, and easy-to-mate electrical connection component.
Compact miniature design suitable for cable mounting applications. Screw locking mechanism according to IEC 130-9 for secure connections. Durable polyamide housing with silver-plated bronze contacts. Internal bend protection sleeve ensures maximum cable retention.
Rated for 250V voltage and 5A current to support industrial applications. Operating temperature range from -40°C to 85°C for various industrial environments. IP40 ingress protection rating for indoor, dust-protected use.
Easy solder termination installation and robust mechanical design.
Explore more industrial-grade circular connectors and related power connectors in the Electronics & Electricals category at EnvMart for your electronic and automation requirements.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250V voltage and 5A current capacity, making it suitable for various industrial applications.
The connector has an IP40 ingress protection rating, which indicates it is suitable for indoor use and protects against non-conductive dust and limited moisture exposure.
It features a polyamide housing for durability and silver-plated bronze contacts that ensure effective conductivity and corrosion resistance.
The operating temperature range is from -40°C to 85°C, allowing it to function in various industrial environments.
This unit uses a solder termination type, which allows for easy assembly in cable mounting applications.
It has a connector size of M16 and a shell size of 18.5 mm, designed for compact and secure connections.
This connector employs a screw locking mating type, conforming to IEC 130-9 standards for secure connections.
This model features 6 contacts, designed for reliable electrical connections in industrial applications.
The connector has a straight orientation, suitable for various mounting configurations.
This connector is manufactured in Germany, ensuring adherence to high manufacturing standards.
Common applications include process control equipment, machine tools, medical equipment, plant equipment, and electrical industrial automation.
The internal bend protection sleeve maximizes cable retention and stability, preventing damage under mechanical stress during use.
