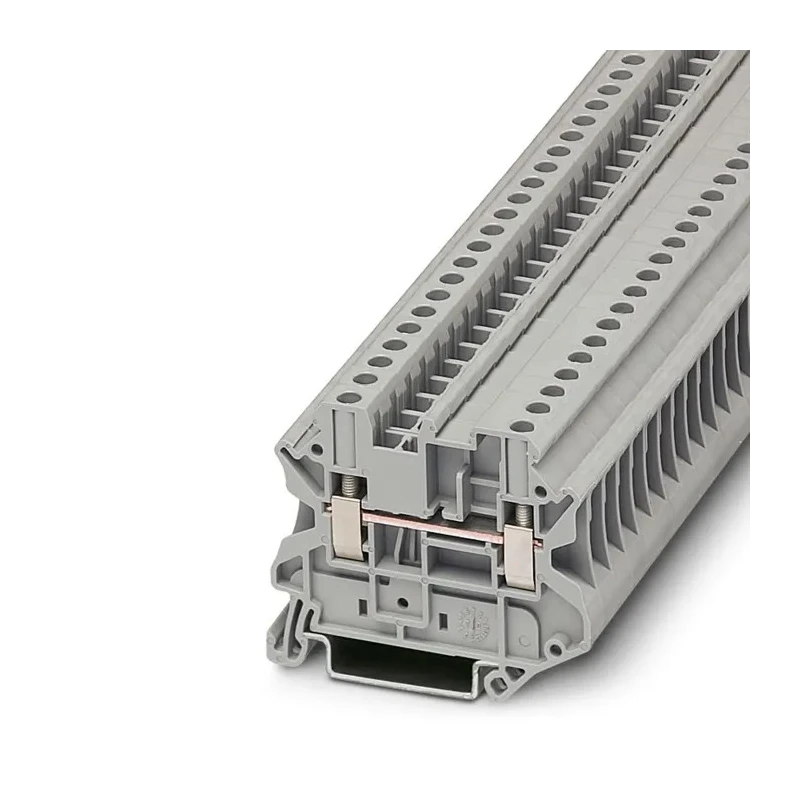

Phoenix Contact Feed Through Terminal Block UT 4-MTD RD Series Grey 4mm², 1-Level, Screw, IECEx/ATEX 3046184
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3046184 |
| Series | UT 4-MTD RD |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | IEC |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 32A |
| Complies with DIN EN 50274 (VDE 0660-514) | 2002-11 standards for protection against electric shock |
Key Features
- Supports wire sizes from 26AWG to 10AWG ensuring versatile application.
- Rated for up to 32A current and 800V voltage for industrial reliability.
- Operates safely in temperatures ranging from -50°C to 110°C.
- IECEx/ATEX certified for hazardous area use providing explosion protection.
- Equipped with a grey PA housing with UL 94-V0 flammability rating for electrical insulation and fire safety.
- One-level feed-through design with convenient screw-type termination.
- Provides quick maintenance access via a side panel without removal from DIN rail.
Product Description
Phoenix Contact 3046184 UT 4-MTD RD Series Feed Through Terminal Block is built for secure and flexible electrical wiring in industrial and hazardous environments. This grey terminal block features a 1-level feed-through design suitable for cables up to 4mm² cross-sectional area, supporting wire sizes from 26AWG up to 10AWG.
The terminal block ensures safe operation with a current rating of 32A and a voltage rating of 800V, making it appropriate for various control and power distribution setups. Its screw-type termination guarantees reliable and durable wire connections.
Designed with safety in mind, the PA housing offers electrical insulation and carries a UL 94-V0 flammability rating. The device withstands a wide temperature range from -50°C to 110°C, allowing use in demanding industrial environments. The rated surge voltage of 8kV provides protection against voltage spikes.
The terminal block is IECEx and ATEX certified, ensuring compliance and suitability for use in potentially explosive atmospheres. Maintenance is simplified by an open side panel that allows easy access to terminals without removing the block from the DIN rail.
It complies with the DIN EN 50274 (VDE 0660-514):2002-11 standard, guaranteeing protection against electrical shock. Installation is quick with a clip-on mechanism for DIN rails. The robust design and certifications support reliable performance in industrial, manufacturing, automation, and hazardous area electrical installations.
Supports wire sizes from 26AWG to 10AWG ensuring versatile application. Rated for up to 32A current and 800V voltage for industrial reliability. Operates safely in temperatures ranging from -50°C to 110°C. IECEx/ATEX certified for hazardous area use providing explosion protection.
Equipped with a grey PA housing with UL 94-V0 flammability rating for electrical insulation and fire safety. One-level feed-through design with convenient screw-type termination. Provides quick maintenance access via a side panel without removal from DIN rail.
Complies with DIN EN 50274 (VDE 0660-514):2002-11 standards for electrical shock protection. Explore more products in the Terminal Blocks category at EnvMart for your industrial and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum current rating of 32A, making it suitable for various industrial applications.
It supports wire sizes from 26AWG to 10AWG, accommodating a range of applications.
The voltage rating for this terminal block is 800V, ensuring reliable performance in electrical installations.
It operates safely in temperatures ranging from -50°C to 110°C, suitable for demanding environments.
Yes, it is IECEx and ATEX certified, ensuring it is safe for use in potentially explosive atmospheres.
It features a screw-type termination, providing reliable and durable wire connections.
This unit has a one-level feed-through design, allowing for straightforward wiring setups.
The housing is made of grey PA and carries a UL 94-V0 flammability rating for fire safety.
Maintenance is simplified with a side panel that allows easy access to terminals without removing the block from the DIN rail.
It complies with DIN EN 50274 (VDE 0660-514):2002-11 standards for protection against electric shock.
The rated surge voltage of this model is 8kV, providing protection against voltage spikes.
The country of origin for this terminal block is Germany, indicating its manufacturing location.
