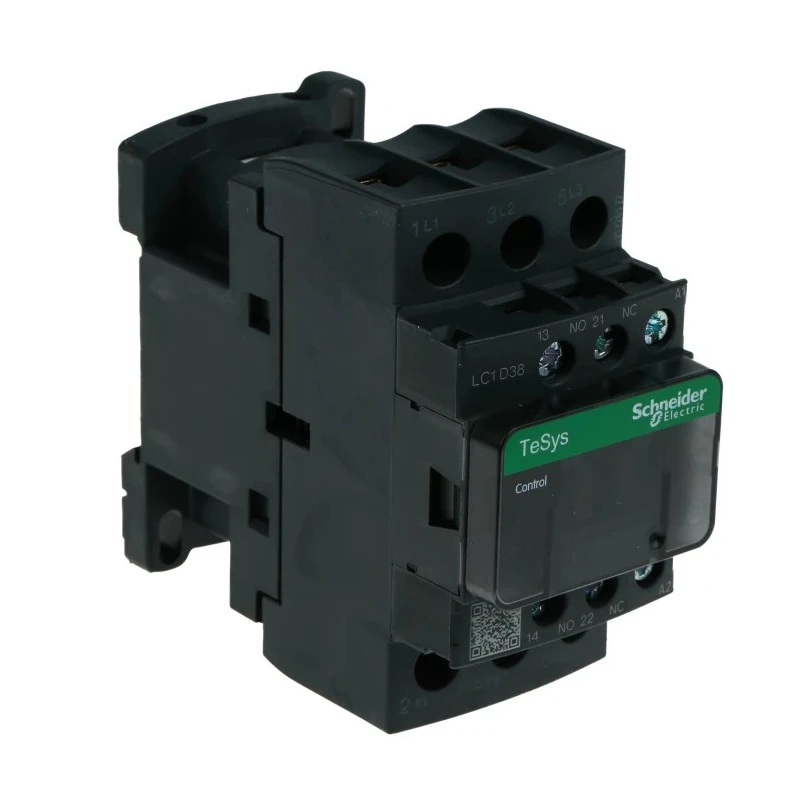

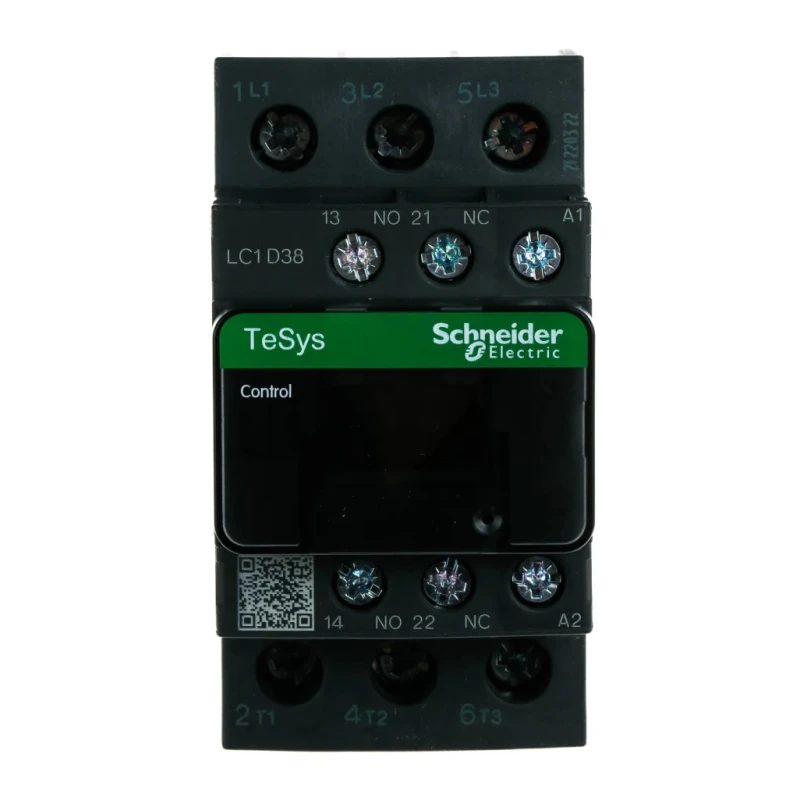

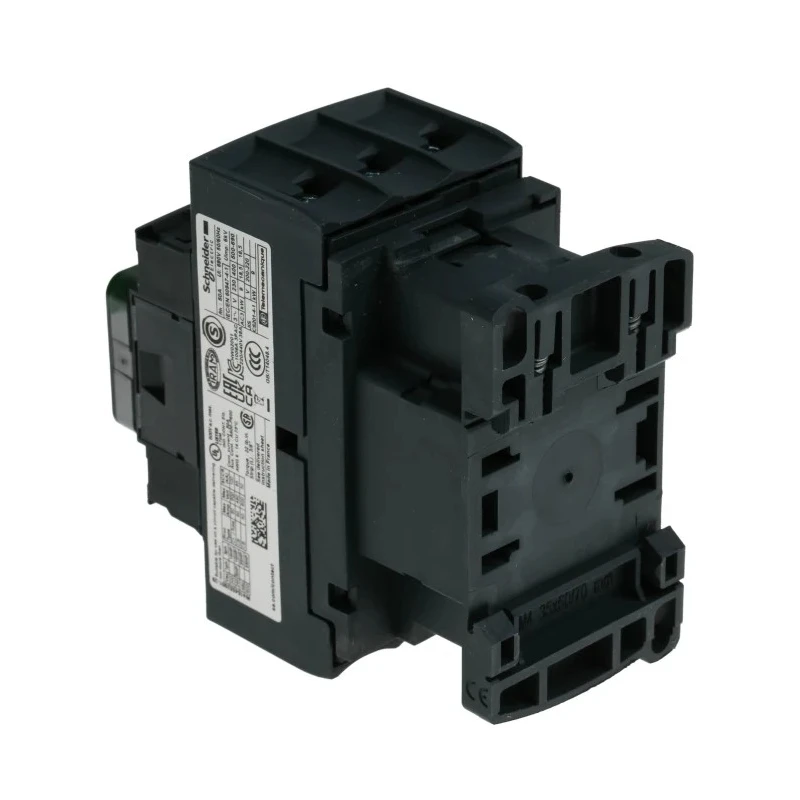

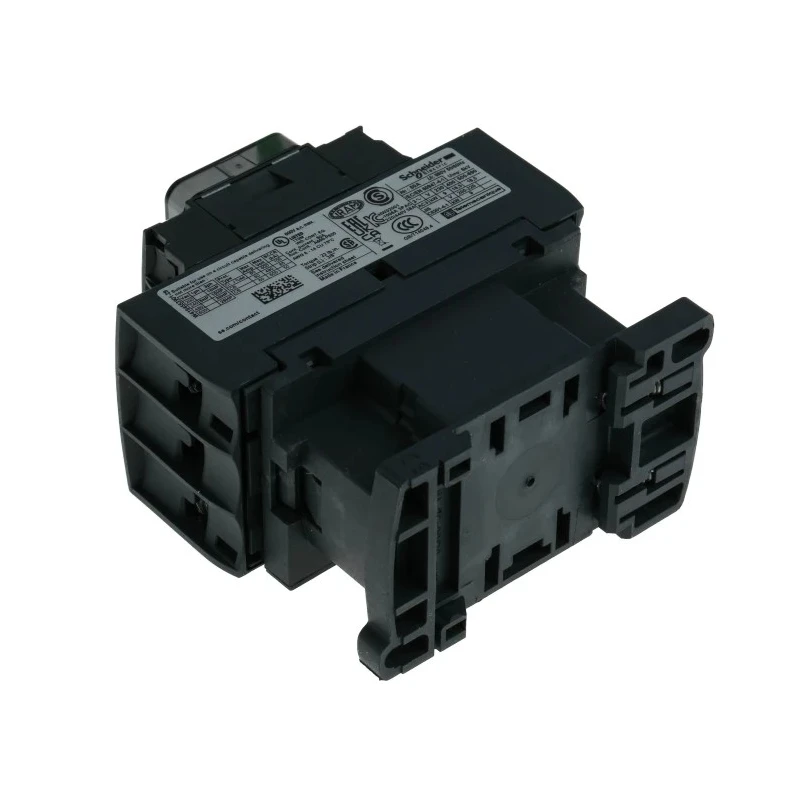

Schneider Electric 3-Pole Contactor, 38 A, 18.5 kW, 110V AC Coil, 690V AC Contact Voltage LC1D38F7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D38F7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, IEC, RoHS, UL, EAC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 38A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 3 NO |
| Operational Current Ie | 38A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The compact design saves space with dimensions of 85 x 45 x 90 mm.
- Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts.
- Coil voltage rating of 110V AC suitable for various control circuits.
- Durable screw terminal connections ensure secure wiring.
- Operating temperature range from -5°C to +60°C for versatile use.
- IP20 finger-proof casing provides protection against electric shocks.
- Fire-resistant material withstands temperatures up to +850°C.
- Suitable for industrial, lighting, HVAC, and medical automation systems.
Product Description
Schneider Electric LC1D38F7 is a robust 3-pole contactor designed for industrial and commercial applications requiring reliable motor control and resistive load management. It features a 110V AC coil and a contact voltage rating of 690V AC, capable of handling operational currents up to 38 A with a power rating of 18.5 kW.
This contactor's compact dimensions (85mm length, 45mm width, 90mm depth) enable efficient use of panel and rail space. The device includes 3 normally open contacts and 2 auxiliary contacts, enhancing its switching capacity for complex automation tasks.
The unit supports screw terminal connections which ensure secure conductor holding against mechanical vibrations and jostling. The housing is rated IP20, finger-safe, and constructed from fire-resistant materials that can tolerate temperatures up to +850°C, enhancing safety in demanding environments.
Designed to operate continuously within a temperature range from -5°C to +60°C, it is suitable for a wide array of industrial applications including automated machinery, medical equipment, lighting installations, cooling, and heating systems.
The contactor can be mounted easily on a DIN rail or directly on panels, supporting fast installation and maintenance workflows. It complies with multiple international standards such as CCC, CSA, IEC, RoHS, UL, and EAC, assuring global acceptance and reliability.
The compact design with screw connections for secure wiring. Built-in auxiliary contacts to enhance switching functions. Suitable for motor control and resistive load applications. Fire-resistant and IP20-rated for maximum safety.
Wide operating temperature range supports versatile use cases. Flexible mounting options on DIN rails or panels. Complies with major international electrical standards. Designed for high endurance in industrial environments.
Auxiliary contacts improve control system integration.
This high-performance Contactor by Schneider Electric is an ideal choice for enhancing automation and control gear in industrial, laboratory, medical, commercial lighting, HVAC, and manufacturing sectors. Explore EnvMart categories for similar advanced electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 38 A.
The contact voltage rating of this contactor is 690V AC.
This contactor has a power rating of 18.5 kW.
The coil voltage for this model is 110V AC.
The dimensions of this unit are 85 mm in length, 45 mm in width, and 90 mm in depth.
It includes 2 auxiliary contacts.
The operating temperature range is from -5°C to +60°C.
This contactor supports DIN rail mounting.
The main contacts are configured as 3 normally open (NO) contacts.
This model complies with multiple standards including CCC, CSA, IEC, RoHS, UL, and EAC.
It uses screw terminal connections for secure wiring.
This contactor is suitable for motor control and resistive load applications, including industrial, lighting, HVAC, and medical automation systems.
