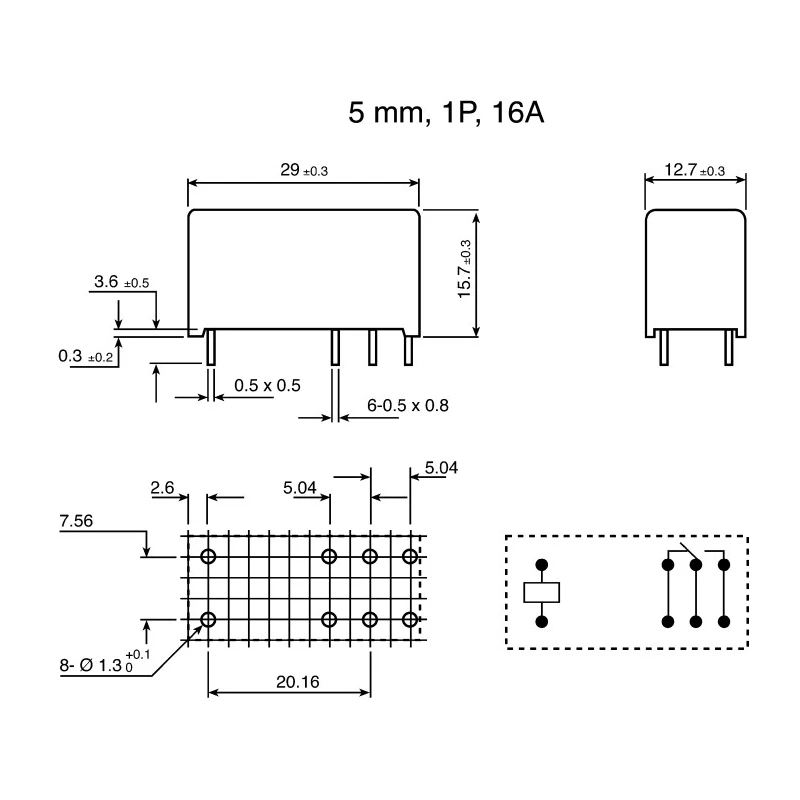

RS PRO PCB Power Relay 6V dc Coil 16A Switching Current SPDT 476-797
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 476-797 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Standards/Approvals | RoHS |
| Coil Resistance | 90Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- This power relay features a low profile with a maximum height of 15.7mm.
- Coil resistance is 90 ohms with a coil power rating of 400mW.
- It supports switching powers up to 4kVA, with DC switching voltage up to 300V and AC switching voltage up to 440V.
- The relay operates reliably within a temperature range of -40°C to 85°C.
- Constructed with silver alloy contacts to ensure durability and performance.
- This relay is solder type mount suitable for PCB installations.
- It offers a surge voltage tolerance up to 10kV and dielectric strength of 5kV between coil and contacts.
- The creepage distance is 10mm, conforming to VDE 0435, 0631, and 0700 standards.
Product Description
RS PRO 476-797 PCB Power Relay is a robust SPDT type relay designed for PCB mounting with a 6V DC coil and capable of handling a switching current of 16A. It has a compact low profile with a height of 15.7mm making it suitable for space-constrained electronic assemblies.
This relay features a coil resistance of 90Ω and a coil power consumption of 400mW, ensuring efficient operation. It supports high switching power of up to 4kVA, with switching voltage ratings of 300V DC and 440V AC, making it versatile for controlling both AC and DC loads.
The contact material is silver alloy which offers excellent conductivity and longevity under frequent switching conditions. The relay's terminal type is solder, designed for secure and reliable PCB connections.
Operating temperature ranges from -40°C to 85°C, enabling usage in diverse environmental conditions commonly found in industrial and automation equipment. It also provides surge voltage protection up to 10kV between coil and contacts and a dielectric strength of 5kV, enhancing its reliability and safety.
The design includes a creepage distance of 10mm which meets VDE 0435, 0631, and 0700 standards, ensuring conformity with international safety requirements. The device is RoHS compliant and holds certifications including UL (File no. E134517), VDE (File no. 116934), and CQC (File no. CQC02001001951), ensuring quality and regulatory compliance.
RS PRO 476-797 is well-suited for applications in industrial automation, electrical control circuits, signal conditioning, and other electronics systems requiring dependable power relay switching in a compact form factor.
Choose this Power Relay for improved production efficiency and reliable switching performance in your electronic and industrial equipment assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this power relay is 16A.
It supports a DC switching voltage of up to 300V and an AC switching voltage of up to 440V.
The coil voltage is 6V DC, and the coil power consumption is 400mW.
The relay has a maximum height of 15.7mm, making it suitable for low-profile applications.
This relay features a single pole double throw (SPDT) contact configuration.
The contacts are made from silver alloy, which provides good conductivity and durability.
It operates reliably within a temperature range of -40°C to 85°C.
The creepage distance is 10mm, conforming to VDE standards.
It is RoHS compliant and certified by UL, VDE, and CQC.
This model is designed for solder type mounting suitable for PCB installations.
It has a surge voltage tolerance of up to 10kV between the coil and contacts.
It is suitable for applications in industrial automation, electrical control circuits, and signal conditioning.
