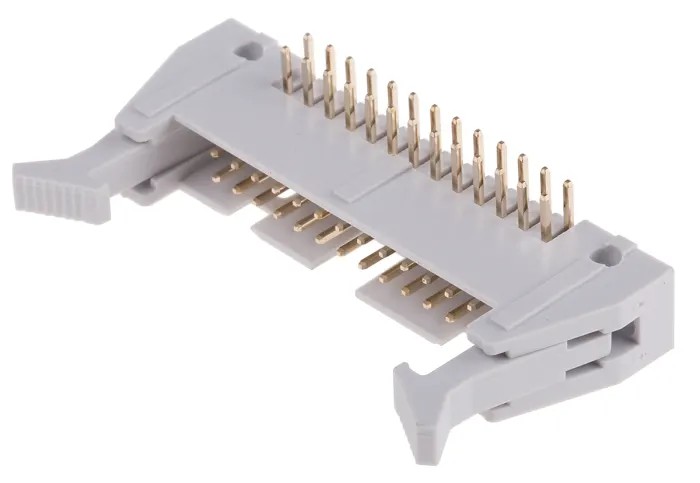

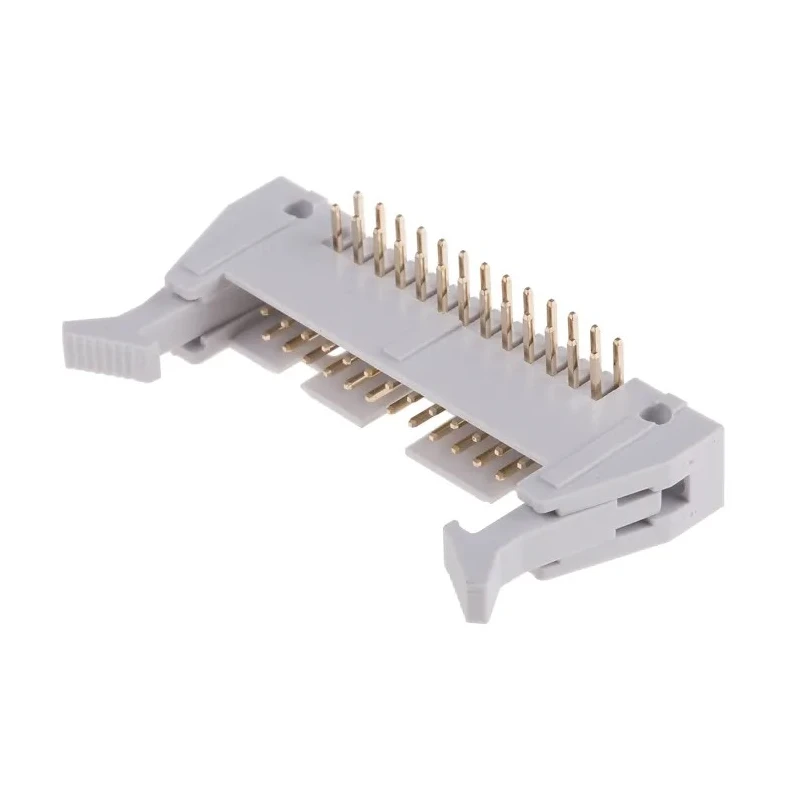

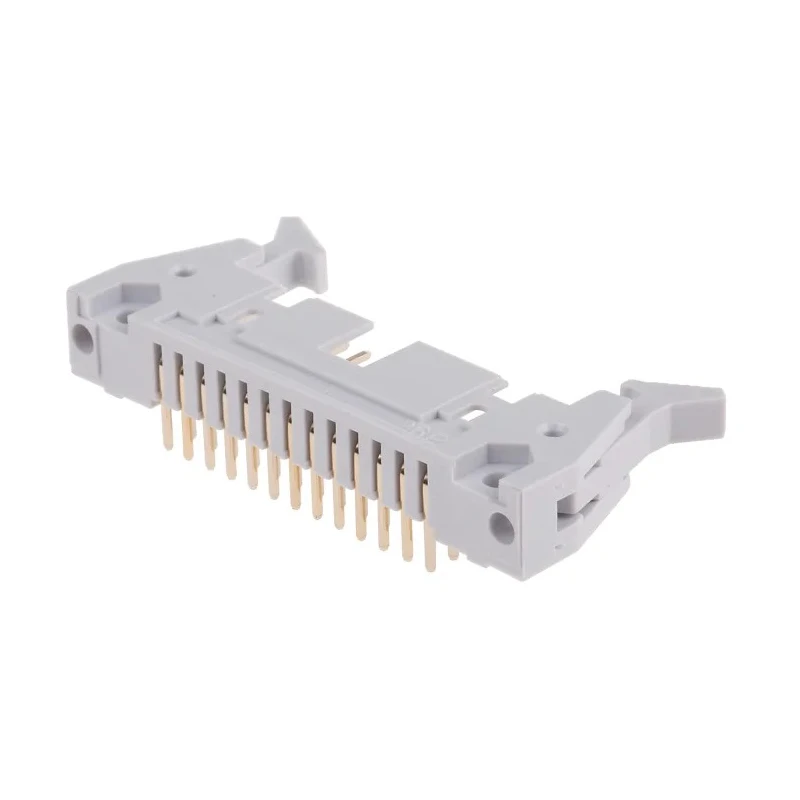

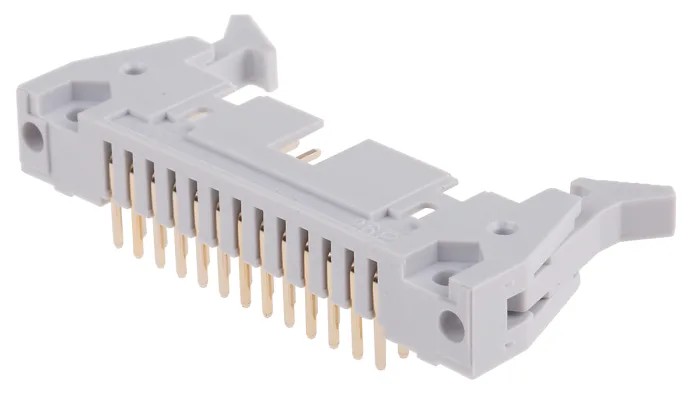

RS PRO Right Angle Through Hole PCB Header 26 Contacts 2.54 mm Pitch Shrouded 471-143

RS PRO 471-143 Right Angle Through Hole PCB Header is a high-quality shrouded male connector designed for electronic circuit boards. Featuring 26 contacts with a 2.54 mm pitch, this PCB header provides reliable electrical connections through its gold-plated brass contacts housed in a durable fibreglass reinforced polyethylene terephthalate casing. Its right angle orientation facilitates versatile mounting configurations on printed circuit boards.

The header supports a continuous current rating of 1 Ampere and is engineered to operate reliably within a broad temperature range from -45°C up to 105°C, making it suitable for various industrial, medical, consumer electronics, data storage, and automation equipment applications. The through hole mount and solder termination ensure secure mechanical and electrical stability.

Designed with a fully shrouded housing and equipped with long ejection latches on either side, the connector enhances protection against shorts and eases insertion and removal operations during assembly or maintenance. The RS PRO range conforms with BS9525-F0023 standards, ensuring compatibility with universal IDC ribbon cable sockets and other connectors.

This PCB header is widely used in prototyping, industrial automation, medical device manufacturing, and consumer electronic products, where dependable, high-quality interconnect solutions are essential. Manufactured with precision and tested rigorously, the RS PRO 471-143 combines robust materials and design features for optimal performance in various technical environments.

Features a right angle orientation for board mounting flexibility. Consists of 26 gold-plated brass contacts ensuring excellent conductivity. Constructed with a fibreglass reinforced polyethylene terephthalate housing for durability.

Supports a current rating of 1 Ampere for standard applications. Operating temperature range from -45°C to 105°C suits diverse environments. Designed for through hole mounting with a solder termination type. Fully shrouded with long ejection latches for robust protection and ease of use.

Compatible with BS9525-F0023 standard connectors and applications. Explore RS PRO PCB Headers and connectors in the Electronics & Electricals category at EnvMart for reliable and precision electronic component solutions.
