Omron PCB Signal Relay 4.5V DC Coil, 1A Switching Current, Double Pole Double Throw DPDT, Model G6K-2P-Y 4.5DC

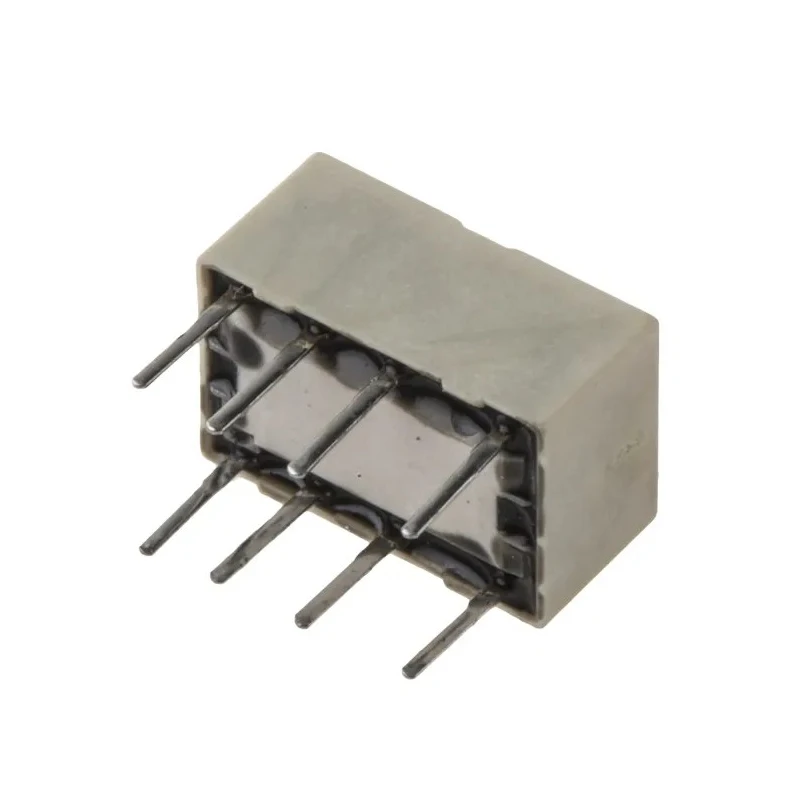

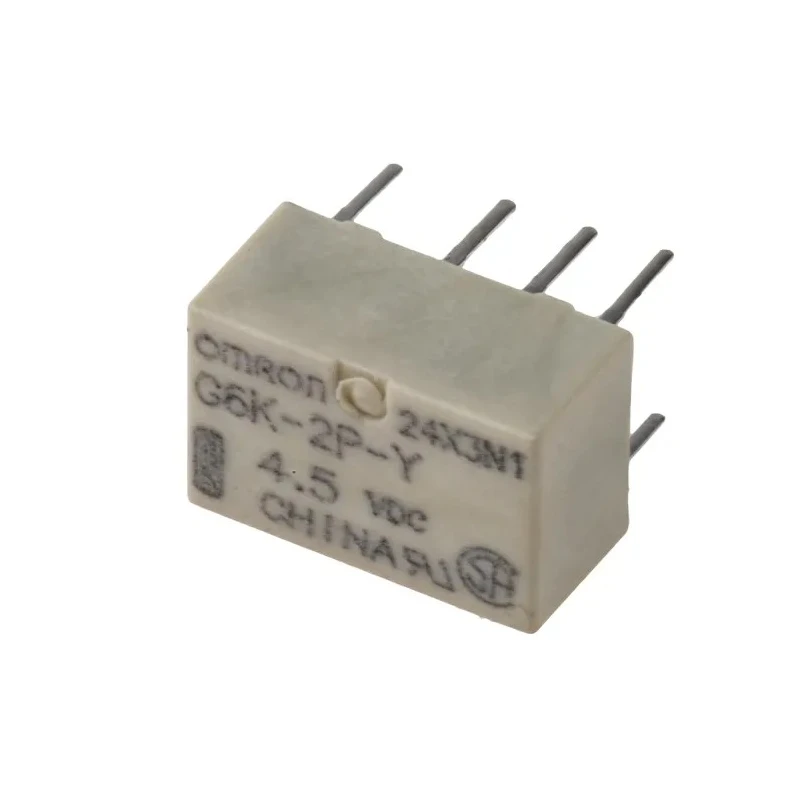

Omron G6K-2P-Y 4.5DC PCB Signal Relay is a sub-miniature, fully sealed relay designed for reliable switching applications in electronic and industrial systems. It features a 4.5V DC coil voltage and a switching current capacity of 1A with a double pole double throw (DPDT) contact configuration, ideal for compact PCB implementations.

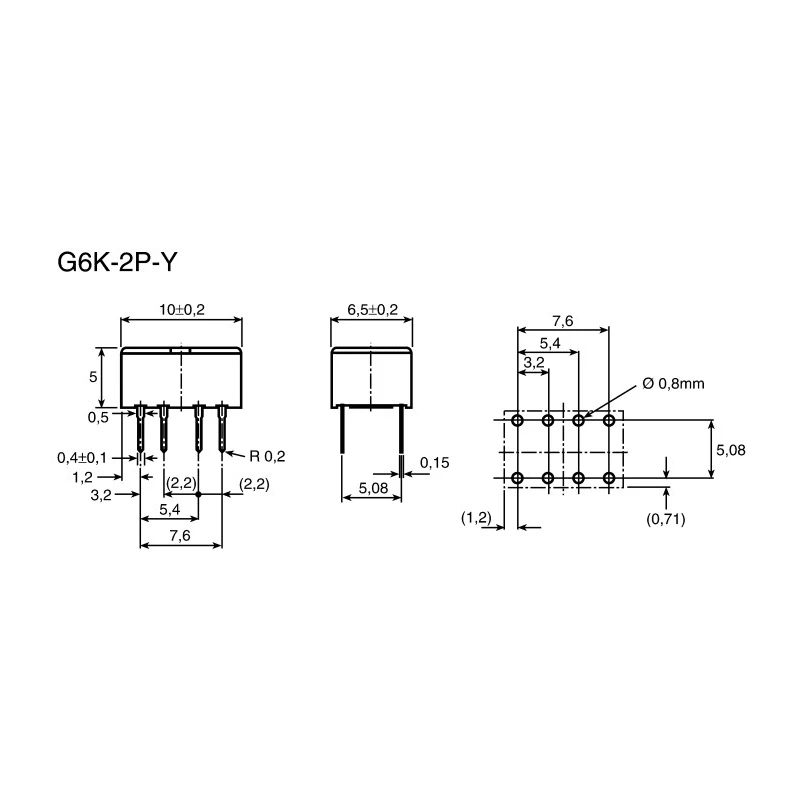

The relay measures only 10mm in length, 6.5mm in width, and 5.4mm in height, providing a compact footprint suitable for densely populated circuit boards. It is built to operate across a wide temperature range from -40°C to 70°C, ensuring stable performance under varying environmental conditions common in industrial, laboratory, and HVAC control applications.

With a coil power consumption of just 100mW, this relay offers energy-efficient operation. Its contact material is a silver alloy, contributing to high conductivity, corrosion resistance, and prolonged service life. The relay's coil resistance is 194 ohms, further supporting efficient electrical performance.

Omron’s G6K series includes relays conforming to rigorous standards such as FCC Part 68, which specifies the ability to withstand 1500V surges for 10 x 160μs, and Bellcore specifications for up to 2500V surges for 2 x 10μs, enhancing robustness against electrical transients. The product is RoHS compliant, supporting eco-friendly manufacturing and disposal standards.

This Signal Relay is widely used in electronic instrumentation, automation, signal conditioning, and industrial control systems requiring precise and low power switching solutions. Its PCB terminal mounting type ensures easy insertion and reliable connection to printed circuit boards.

The compact size combined with its dependable switching capabilities make the Omron G6K-2P-Y 4.5DC relay suitable for demanding industrial, manufacturing, laboratory, HVAC, and water treatment applications. This relay enables efficient signal control while maintaining low power consumption and high durability.

Choose Omron relays for high-quality, certified, and robust signaling performance. Explore EnvMart’s comprehensive catalog of Omron relays and signal conditioning solutions to find compatible products and accessories to optimize your electronic systems.

Designed for PCB mounting with compact dimensions of 10mm length, 6.5mm width, and 5.4mm height. Operates within a temperature range of -40°C to 70°C, suitable for diverse industrial environments. Constructed with a fully sealed design ensuring reliability and durability.

Low power consumption coil of approximately 100mW for energy efficiency. Contact material is high-quality silver alloy ensuring excellent conductivity and longevity. Conforms to RoHS standards, making it environmentally compliant.

Meets FCC Part 68 and Bellcore specifications for high voltage endurance and surge resistance.
