Omron Signal Relay PCB Mount, 4.5V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2F-Y 4.5DC

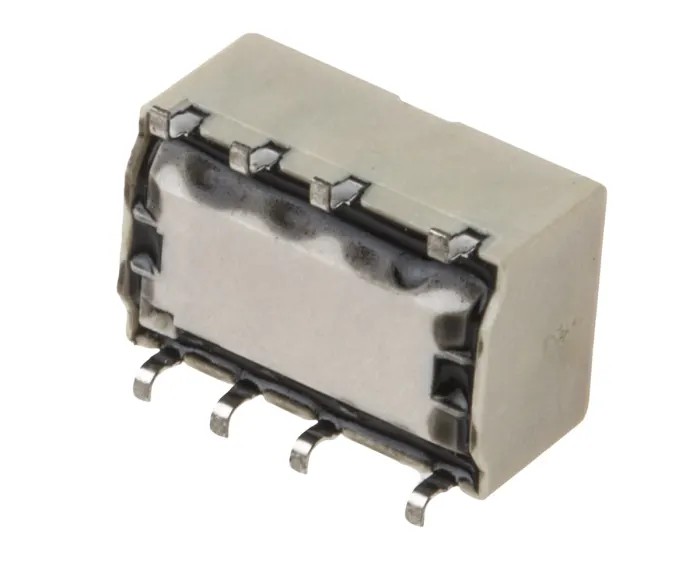

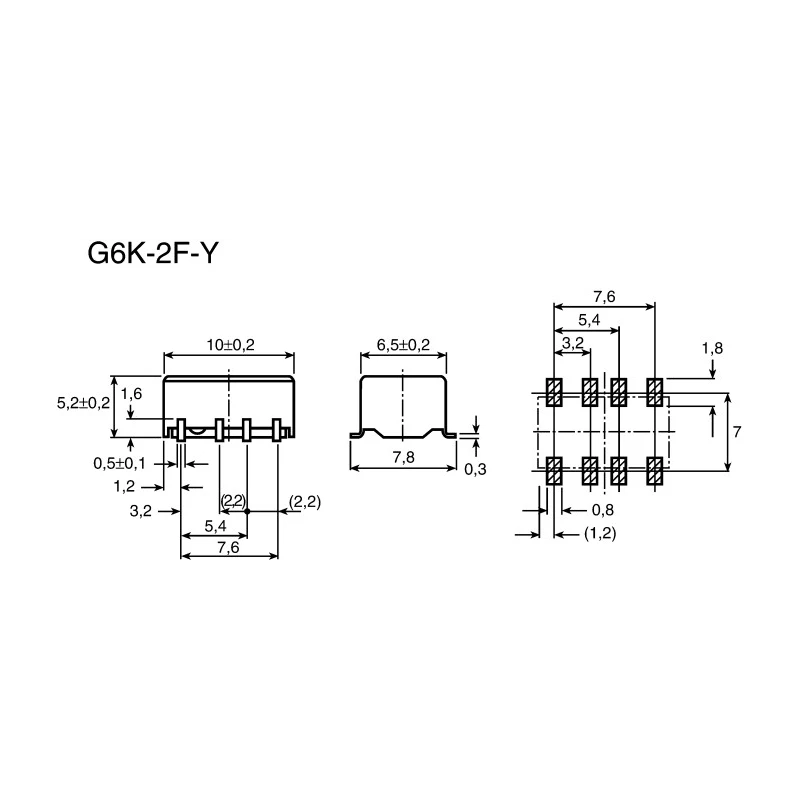

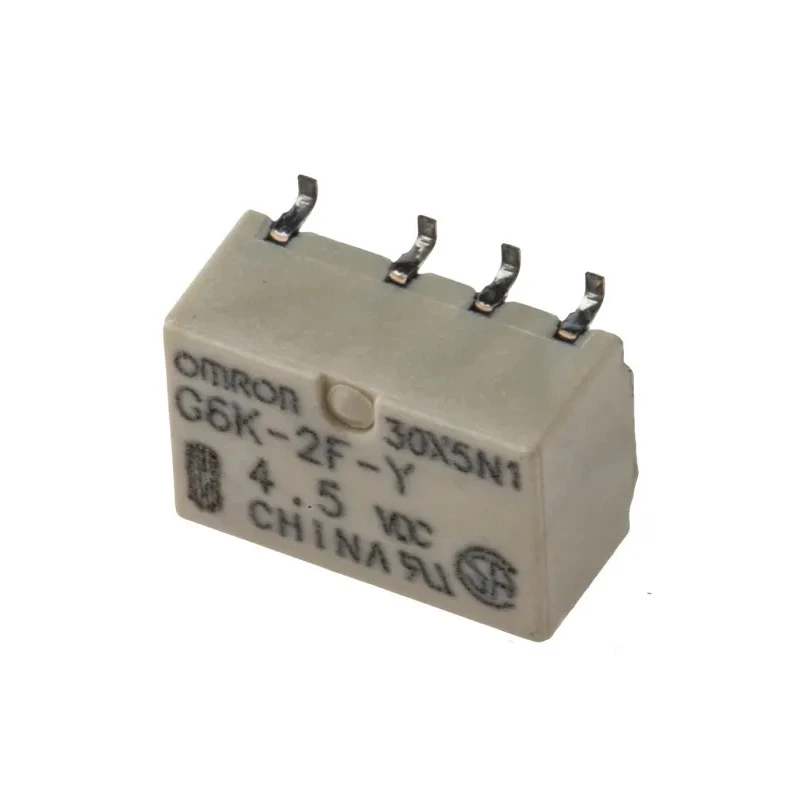

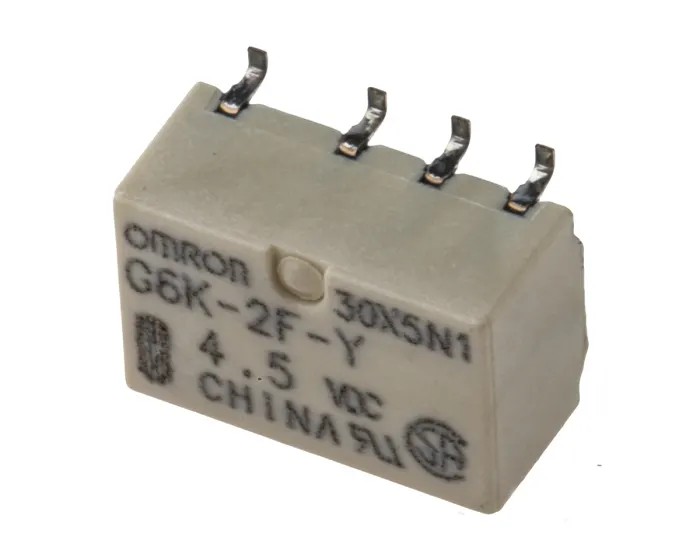

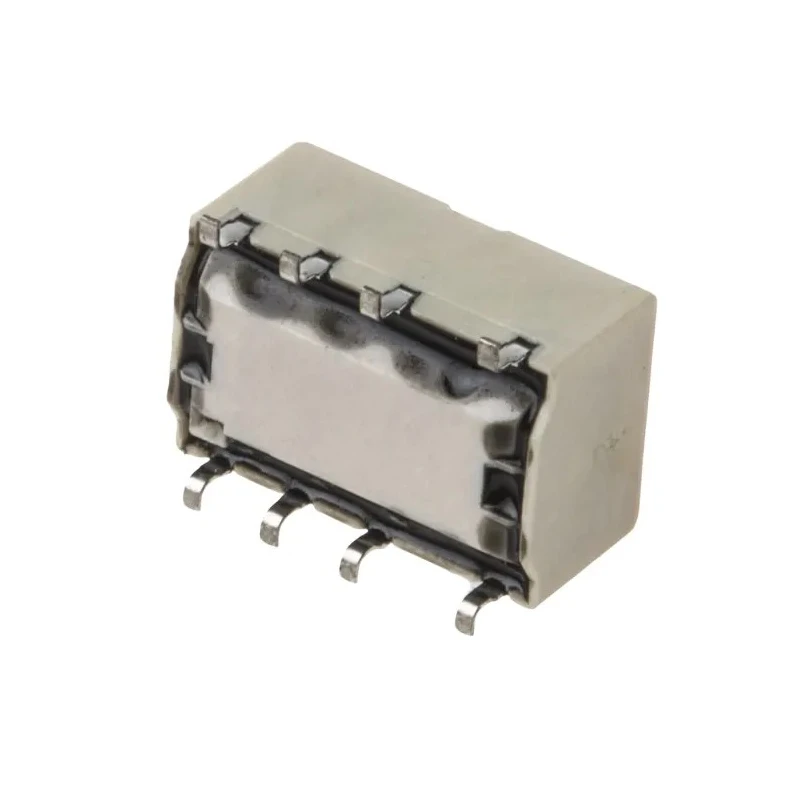

Omron G6K-2F-Y 4.5DC Signal Relay PCB Mount with 4.5V DC coil voltage and 1A switching current is a low profile subminiature relay built for PCB mounting applications. It features a double pole double throw contact configuration (DPDT) with gold-plated contacts, providing reliable operation and minimal contact resistance. The relay measures 10mm in length, 7.8mm in width, and 5.2mm in height, making it compact for integration into electronic assemblies.

The device incorporates a fully sealed construction that ensures high durability and long operational life, even in harsh industrial environments. It has a coil resistance of 194Ω and a coil power rating of 2500W, operating efficiently at a low power consumption typically around 100mW.

Operating temperature ranges from -40°C to 70°C, making it suitable for various industrial, automation, and electrical use cases. The relay complies with international standards including IEC, EN, CE, RoHS, and UL, ensuring reliable performance and safety in diverse applications.

It includes a unique terminal structure with high infrared irradiation efficiency, improving soldering characteristics during PCB assembly. Additionally, the G6K series meets FCC Part 68 and Bellcore specifications for electrical noise immunity, making it an excellent choice in Signal Relay tasks requiring high integrity and performance.

This relay is widely used in industrial control systems, automation equipment, electrical control panels, and instrumentation. It supports switching AC voltage up to 400V AC and switching power up to 37.5VA, enabling dependable signal switching and control.

Low profile subminiature surface mount relay with dimensions 10 x 7.8 x 5.2 mm. Double pole double throw (DPDT) contact configuration. Gold-plated contacts for enhanced electrical performance. Fully sealed casing for protection and reliability.

Coil voltage of 4.5V DC with coil resistance 194Ω. Operating temperature range from -40°C to 70°C. Compliant with IEC, EN, CE, RoHS, and UL standards. Designed for efficient soldering and high infrared irradiation terminal structure.

Suitable for industrial, electrical, automation, and PCB mounting applications.
