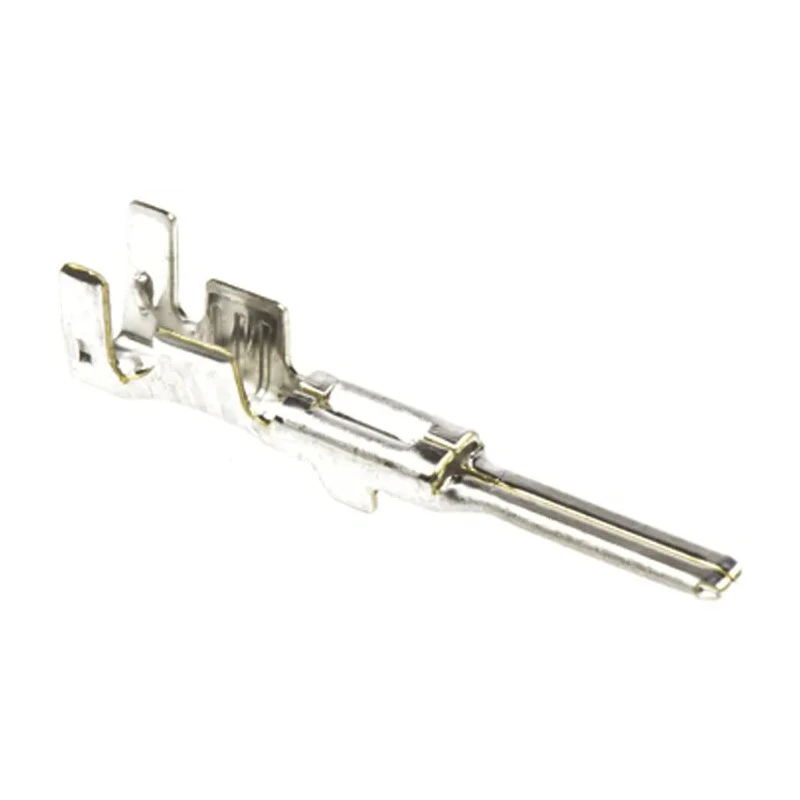

TE Connectivity MULTILOCK 070 Series Male Crimp Terminal, 20 AWG Min Crimp, 16 AWG Max, 14A Current, Tin Plated 175030-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 14A |
| Length | 16mm |
| Model | 175030-1 |
| Gender | Male |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 070 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from brass with tin plating to ensure reliable conductivity and corrosion resistance.
- Supports minimum wire size of 20 AWG and maximum wire size of 16 AWG.
- Crimp termination type offering secure and efficient cable connections.
- Operates reliably within a temperature range of -30°C to 105°C.
- Compatible with MULTILOCK 070 Connector Housing, suitable for automotive and industrial wiring.
- Designed with snap-in fixing connector cavities for easy assembly.
- Low contact resistance of 10 mΩ max (initial) ensuring signal integrity.
- Certified to meet industry standards and originates from Japan.
Product Description
TE Connectivity 175030-1 Male Crimp Terminal from the MULTILOCK 070 Series offers a high-quality crimp contact solution ideal for a variety of industrial and automotive applications. Featuring a robust brass construction with tin plating, these terminals provide dependable electrical conductivity and corrosion resistance important for long-term performance.
This crimp terminal supports wire sizes ranging from 20 AWG minimum to 16 AWG maximum, accommodating a broad spectrum of cable configurations. Its crimp termination ensures a secure mechanical and electrical connection, making it well-suited for automation, automotive, and general industrial wiring systems.
Designed for a current rating of 14A and operating temperature range from -30°C to 105°C, this terminal assures reliable function under challenging environmental conditions. The terminal length of 16 mm allows compact installations within compatible MULTILOCK 070 connector housings.
The MULTILOCK system features snap-in fixing connector cavities for simplified assembly and maintenance. This miniature high-density connector series is commonly employed in automotive wire-to-wire and wire-to-board I/O applications, but also serves diverse signal transfer needs across manufacturing and industrial settings.
Brass contact material plated with tin for durability and conductivity. Compatible with MULTILOCK 070 connector housings for versatile applications. Rated for 14A current and snap-in fixing design for reliable connections.
Low contact resistance enhances electrical performance and signal integrity. Operating temperature span from -30°C to 105°C supports industrial usage. Compact 16 mm length suitable for tight installation spaces. Manufactured in Japan ensuring high quality and consistent standards.
This TE Connectivity MULTILOCK 070 Series Male Crimp Terminal provides a trusted solution for users requiring robust and reliable wire termination options in demanding electrical and electronic contexts. Browse EnvMart for related Crimp Contacts and suitable connector housings to build complete wiring assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal has a current rating of 14A.
It operates reliably within a temperature range of -30°C to 105°C.
This model supports a minimum wire size of 20 AWG and a maximum wire size of 16 AWG.
The terminal has a length of 16 mm, suitable for compact installations.
It is constructed from brass with tin plating for reliable conductivity and corrosion resistance.
Yes, it is compatible with MULTILOCK 070 connector housings.
This terminal uses a crimp termination type, ensuring secure cable connections.
The low level resistance is 10 mΩ max (initial), ensuring good signal integrity.
It is suitable for automotive and industrial wiring applications, particularly in wire-to-wire and wire-to-board connections.
The overall resistance is 20 mΩ max (final), which contributes to its electrical performance.
This terminal is manufactured in Japan, ensuring high quality and consistent standards.
