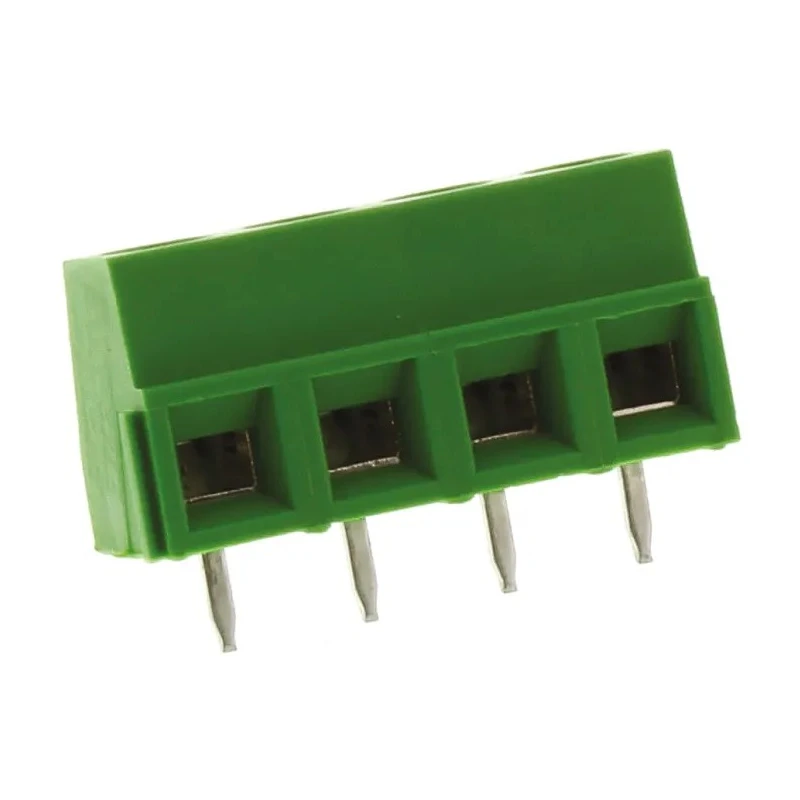

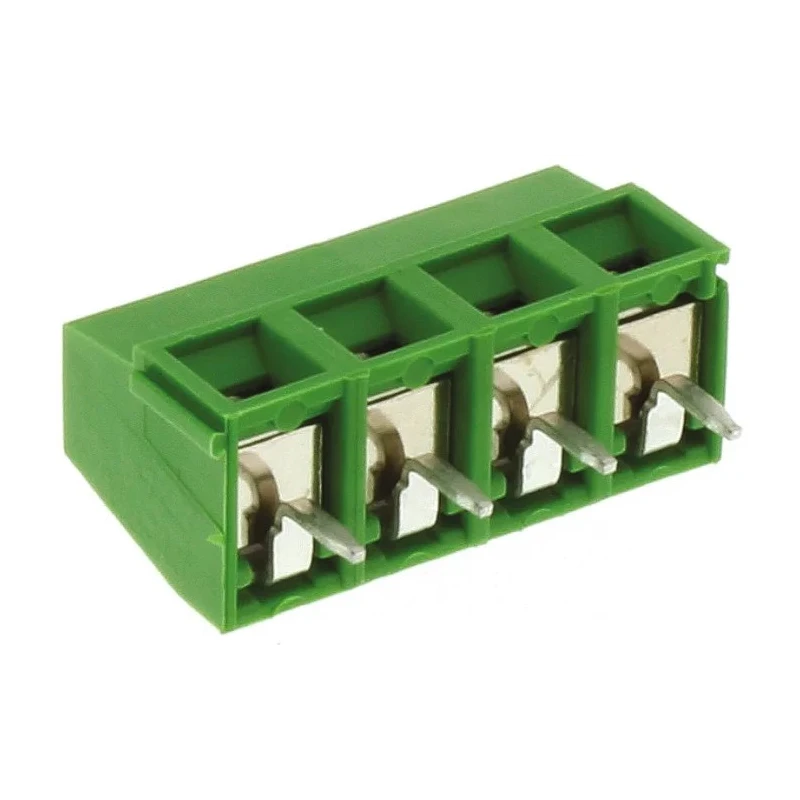

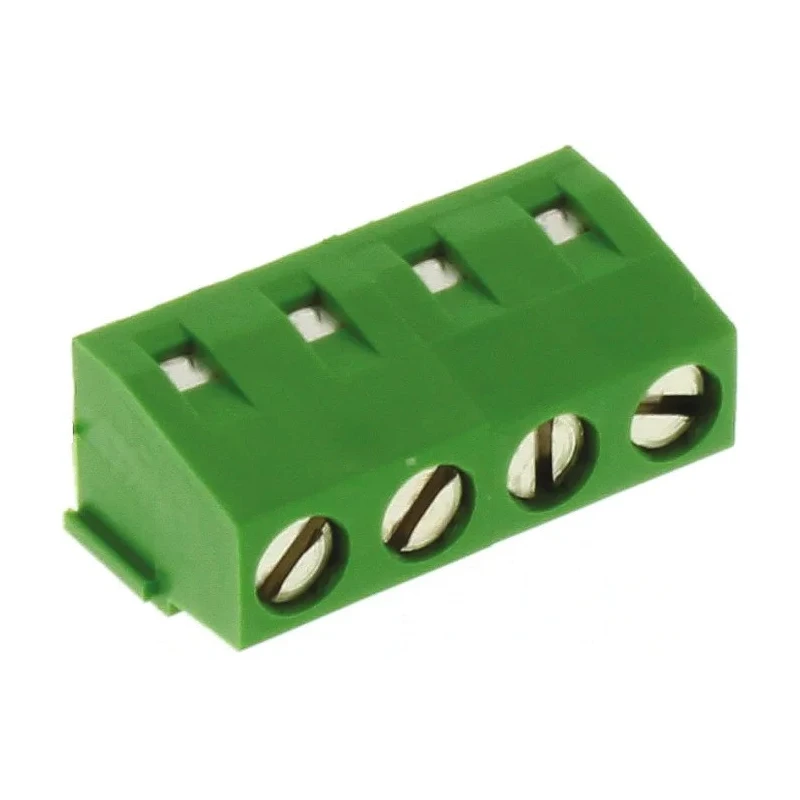

TE Connectivity Buchanan Series PCB Terminal Block 4-Contact 5 mm Pitch 1 Row 13.5A Polyamide Housing 300V AC 282836-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 13.5A |
| Length | 20mm |
| Model | 282836-4 |
| Depth | 8.2mm |
| Width | 10mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- High-quality polyamide housing ensures durability and electrical insulation.
- Supports current up to 13.5A for various low to medium power applications.
- Compact size with 20mm length, 10mm width and 8.2mm depth fits tight PCB layouts.
- Straight, male connector orientation for easy soldering and assembly.
- Operating voltage up to 300V AC for safe electrical performance.
- Interlocking feature enables side stacking for modular configurations.
- Compatible with wire sizes from 30 to 16 AWG (0.05 to 1.3 mm²).
- Designed for industrial, electronic manufacturing, and control panel applications.
Product Description
TE Connectivity 282836-4 PCB Terminal Block is a high-quality pluggable terminal block designed for safe and reliable electrical connections on printed circuit boards. Featuring 4 contacts with a 5 mm pitch and a single row configuration, this product offers precise wire termination suitable for various electronic and industrial applications.
The terminal block is housed in robust green polyamide 6.6 GF material, ensuring excellent mechanical strength and electrical insulation. It employs M3 screw clamp terminals that accept straight male connectors for wire sizes ranging from 0.05 mm² (30 AWG) up to 1.3 mm² (16 AWG), making it compatible with a wide range of wiring requirements.
Rated for a current capacity of 13.5A and operating voltages up to 300V AC, this PCB terminal block supports safe operation within low to medium power circuits. Its dimensions are optimized for compact PCB layouts, measuring 20 mm in length, 10 mm in width, and 8.2 mm in depth.
Designed with an interlocking feature, it allows side-by-side stacking to create custom terminal block assemblies, enhancing modularity and installation efficiency. The terminal block is ideal for use in industrial automation, electronic manufacturing, control panels, and other electrical systems requiring dependable PCB wire termination.
High-quality polyamide housing ensures durability and electrical insulation. Supports current up to 13.5A for various low to medium power applications. Compact size with 20mm length, 10mm width, and 8.2mm depth fits tight PCB layouts.
Straight, male connector orientation for easy soldering and assembly. Operating voltage up to 300V AC for safe electrical performance. Interlocking feature enables side stacking for modular configurations. Compatible with wire sizes from 30 to 16 AWG (0.05 to 1.3 mm²).
Designed for industrial, electronic manufacturing, and control panel applications.
This TE Connectivity Buchanan Series terminal block is a trusted solution providing high reliability and secure connections. Browse the Electronics Components category on EnvMart for more industrial-grade connectors and terminal blocks.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 13.5A, suitable for low to medium power applications.
It operates at a voltage of up to 300V AC, ensuring safe electrical performance.
The terminal block measures 20 mm in length, 10 mm in width, and 8.2 mm in depth, making it compact for tight PCB layouts.
It is compatible with wire sizes ranging from 30 AWG (0.05 mm²) to 16 AWG (1.3 mm²).
The housing is made of high-quality polyamide, which provides durability and electrical insulation.
This model features 4 contacts, arranged in a single row configuration with a 5 mm pitch.
It has a straight connector orientation, which facilitates easy soldering and assembly.
Yes, it includes an interlocking feature that enables side stacking for modular assemblies.
It is designed for industrial automation, electronic manufacturing, control panels, and other electrical systems requiring dependable PCB wire termination.
The terminal block is green in color, which is common for many electronic components.
This terminal block is manufactured in India.
It employs M3 screw clamp terminals for secure wire termination, enhancing reliability in electrical connections.
