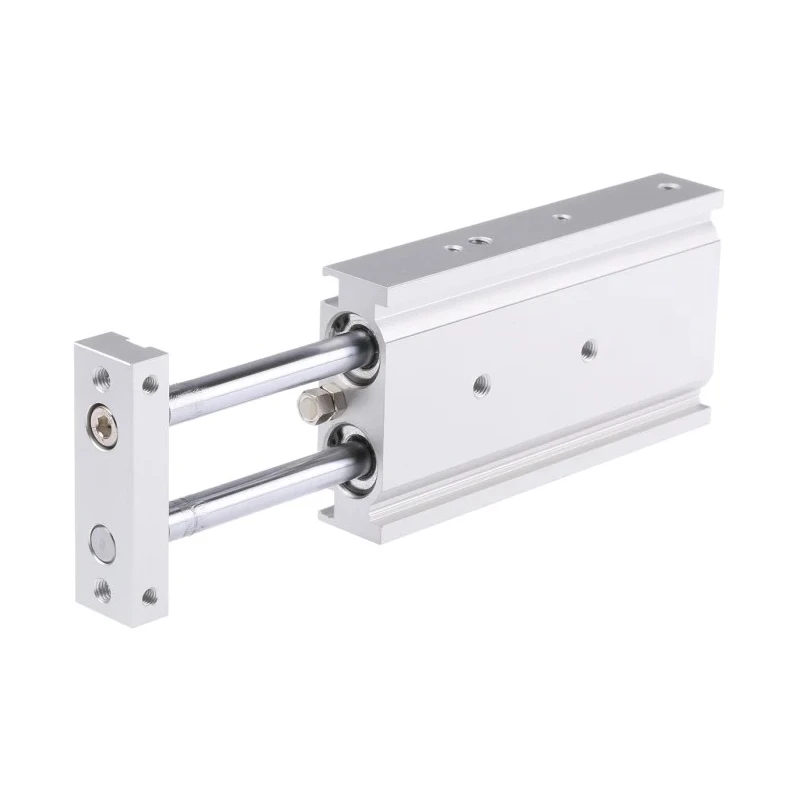

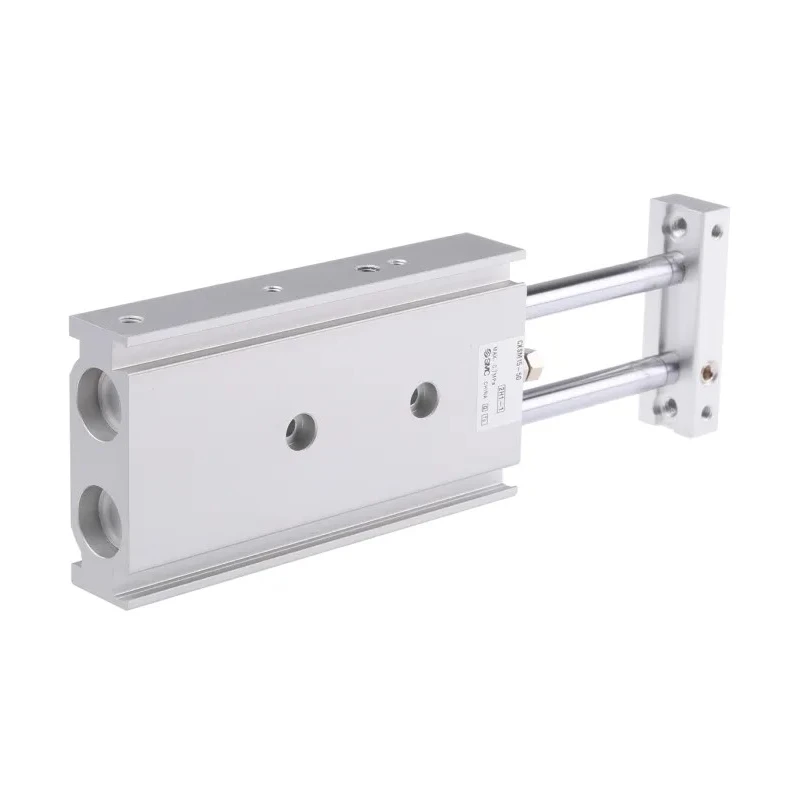

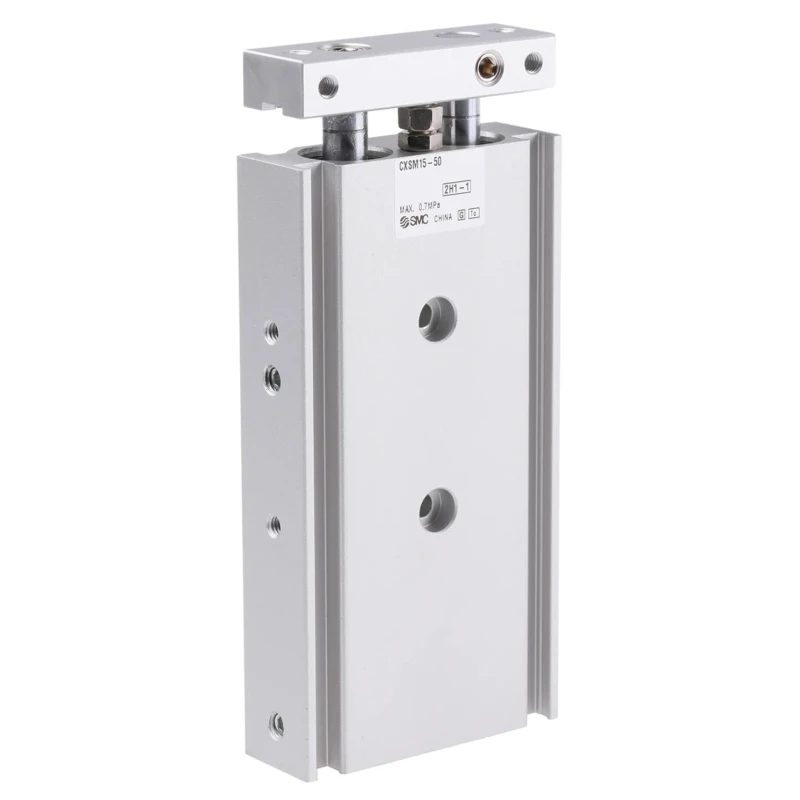

SMC Pneumatic Guided Cylinder, 15mm Bore, CXSM Series, 50 mm Stroke, Linear Acting CXSM15-50

SMC CXSM15-50 Pneumatic Guided Cylinder features a 15mm bore diameter and a 50 mm stroke length designed for accurate linear motion in industrial automation and pneumatic systems. The dual rod construction ensures high non-rotational accuracy, ideal for pick-and-place applications in manufacturing, assembly, and automation industries.

This CXSM series cylinder operates under a maximum pressure of 0.7 Mpa and boasts a durable rubber cushioning type, contributing to its smooth operation and longevity. The cylinder supports operating temperatures from -10°C to 60°C, making it adaptable to various environmental conditions.

The cylinder includes slide and ball bearing guides that facilitate stable guided motion and reduce wear. It also incorporates an integral stroke adjustment allowing settings up to 5 mm less than the standard stroke, enhancing flexibility in application.

With standard magnetic sensing and buffer cushioning, the cylinder provides precise control and shock absorption. Its compact size with dimensions of 129 mm length, 20 mm width, and 58 mm height, and a weight of just 360 grams make it convenient for integration in space-restricted environments.

Made in China, this Pneumatic Guided Cylinder complies with IEC spec IP67 and JISC0920 standards, ensuring reliable performance and protection against dust and water ingress. It is highly suitable for industrial sectors such as manufacturing automation, laboratory pneumatic systems, HVAC controls, and general fluid power applications.

Designed for high non-rotational accuracy with dual rod setup. Operates effectively within temperature range -10°C to 60°C. Supports maximum operating pressure of 0.7 Mpa with rubber cushioning. Equipped with slide and ball bearings for smooth guided motion.

Integral stroke adjustment allows setting stroke length 5mm less than standard. Standard magnetic sensing and buffer cushioning enhance performance. Lightweight at 360 grams for easy installation and operation. Compact dimensions with 129 mm length, 20 mm width, and 58 mm height.

Suitable for pick-and-place pneumatic applications requiring reliable linear guidance. Explore the complete range of pneumatic components and guided cylinders at EnvMart to optimize your pneumatic systems with trusted precision components.
