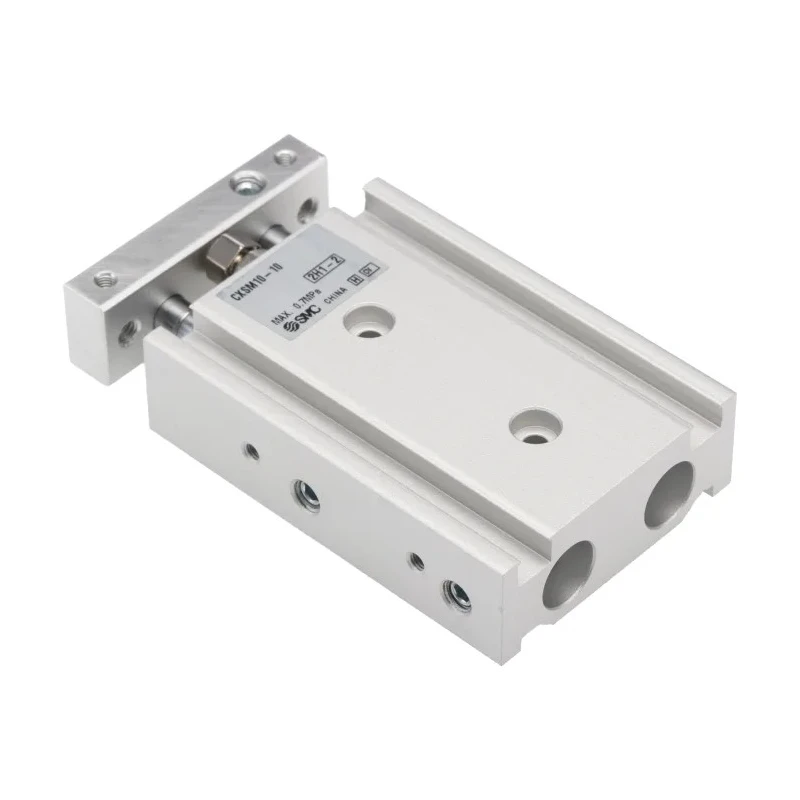

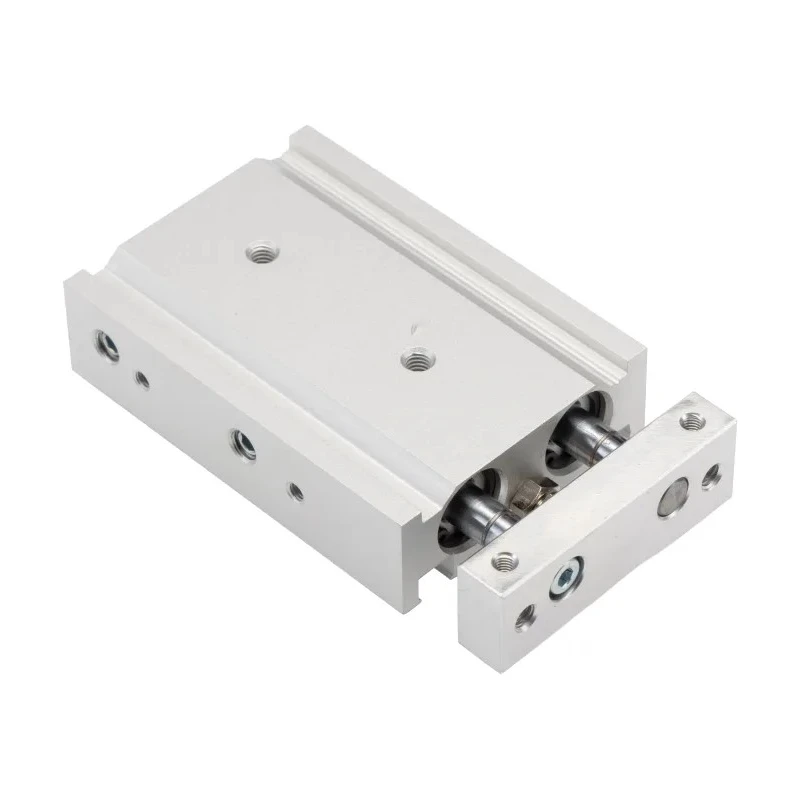

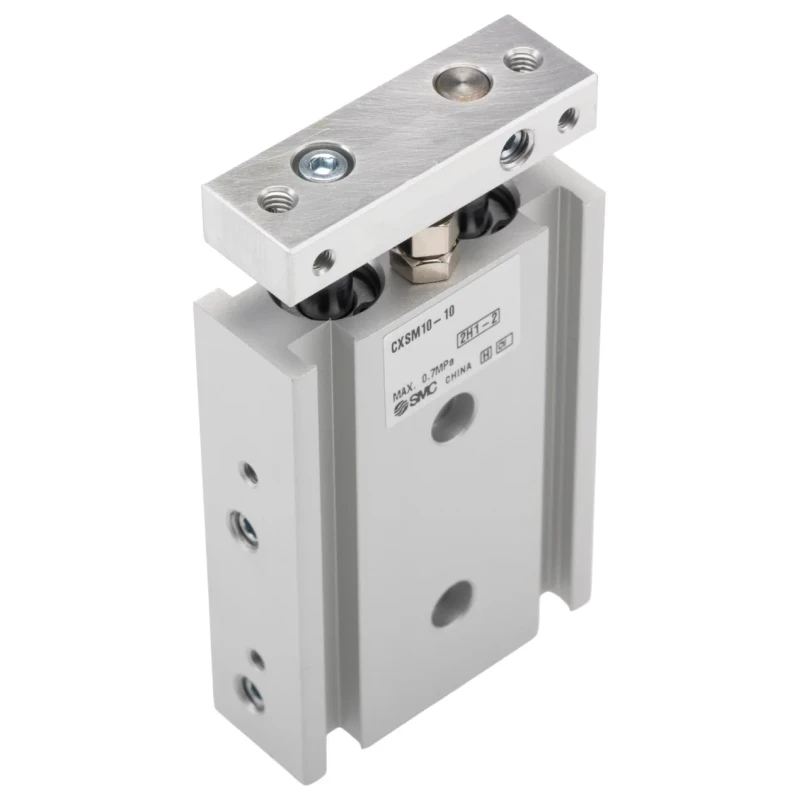

SMC Pneumatic Guided Cylinder 10 mm Bore Dual Rod Linear Actuating CXSM10-10

SMC CXSM10-10 Pneumatic Guided Cylinder features a 10 mm bore diameter with dual rod linear actuation, designed for precision pneumatic applications requiring robust and smooth operation. This cylinder belongs to the CXSM series and is suitable for environments operating from -10°C up to 60°C. It supports a maximum operating pressure of 0.7 MPa and a maximum piston speed of 300 mm/s, ensuring efficient and reliable actuation.

The device incorporates dual rods that provide high non-rotational accuracy, enhanced by the use of slide and ball bearing guides to ensure smooth sliding and durability under load. Rubber cushioning absorbs impacts, protecting the cylinder and connected machinery.

With compact dimensions of 82 mm length, 17 mm width, and 46 mm height, and a stroke length of 10 mm, this Pneumatic Guided Cylinder is well-suited for pick-and-place applications and precise linear motion tasks in industrial, manufacturing, and automation systems.

The cylinder conforms to JISC0920 and IEC spec IP67 standards, ensuring robust performance in demanding environments. It is designed for use with non-lubricated, filtered compressed air in pneumatic systems.

Dual rod configuration for improved accuracy. Compact and lightweight design with a gross weight of 150 g. Slide and ball bearing guide types for smooth operation. Rubber cushioning for impact protection. High maximum piston speed of 300 mm/s.

Operational temperature range from -10°C to 60°C. Suitable for pick-and-place automation applications. Compliant with JISC0920 and IEC spec IP67 standards. Integral stroke adjustment feature available. Manufactured in China.
