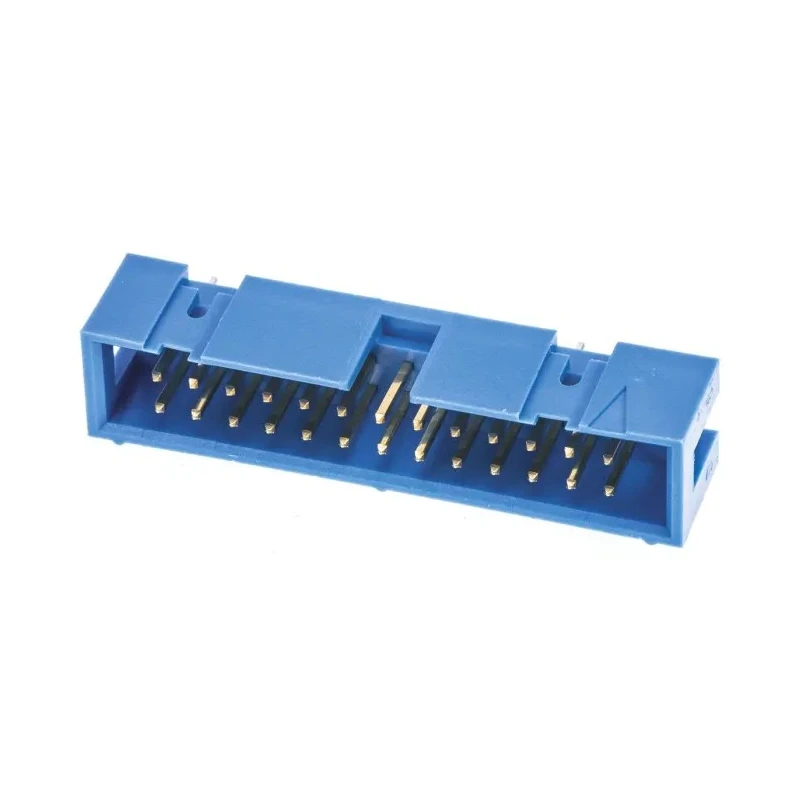

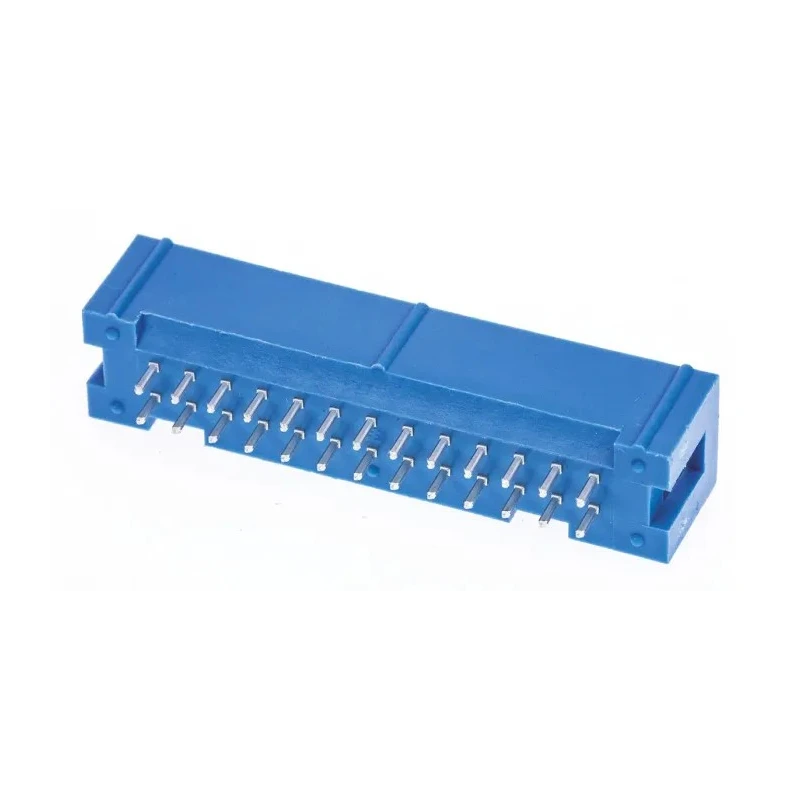

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded 2-1761603-9

Name: TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded 2-1761603-9
Brand: TE Connectivity
SKU: 119246
Price: 8.18 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	AMP-LATCH
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.6mm

Key Features

The AMP-LATCH series provides reliable wire-to-board connections with a standard 2.54 mm pitch.
The header features 26 gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance.
It is designed with a shrouded housing made of durable polybutylene terephthalate, protecting contacts and ensuring alignment.
Mounting is through-hole with a straight orientation suitable for PCB applications.
Operates reliably within a temperature range from -65°C to 105°C.
Rated for a maximum voltage of 250 V and current of 1 A per contact.
Contact tail pins measure 2.6 mm in length suitable for solder termination.
Ideal for industrial, electronic component assembly, and manufacturing applications.

Product Description

TE Connectivity 2-1761603-9 AMP-LATCH Series Straight Through Hole PCB Header offers a reliable and high-quality connection solution for printed circuit boards. Featuring a 2.54 mm pitch and 26 contacts arranged in 2 rows, this shrouded header connector supports wire-to-board connections in various industrial and electronic assemblies.

Constructed with a durable polybutylene terephthalate housing and gold-plated phosphor bronze contacts, the component ensures excellent conductivity and corrosion resistance for long-term reliability. Its through-hole mount type and straight orientation make it suitable for standard PCB mounting processes.

The product can operate safely within a temperature range from -65°C to 105°C, supporting a maximum voltage rating of 250 V and a current rating of 1 A per contact. With a tail pin length of 2.6 mm, the solder termination provides a secure mechanical and electrical connection to PCBs.

This PCB header is ideal for use in applications such as industrial electronics, manufacturing equipment, communication devices, and other electronic systems that require dependable connector performance.

The AMP-LATCH design incorporates a shrouded housing to protect the contacts and ensure proper mating. 26 male contacts provide multiple connection points for complex PCB assemblies. Gold plating on phosphor bronze contacts improves signal integrity and resistance to wear.

Suitable for wire-to-board connector systems ensuring ease of assembly and maintenance. Temperature and electrical ratings ensure suitability for demanding electronic environments. Explore more industrial connectors and PCB components at EnvMart for your electronic design and manufacturing needs.
